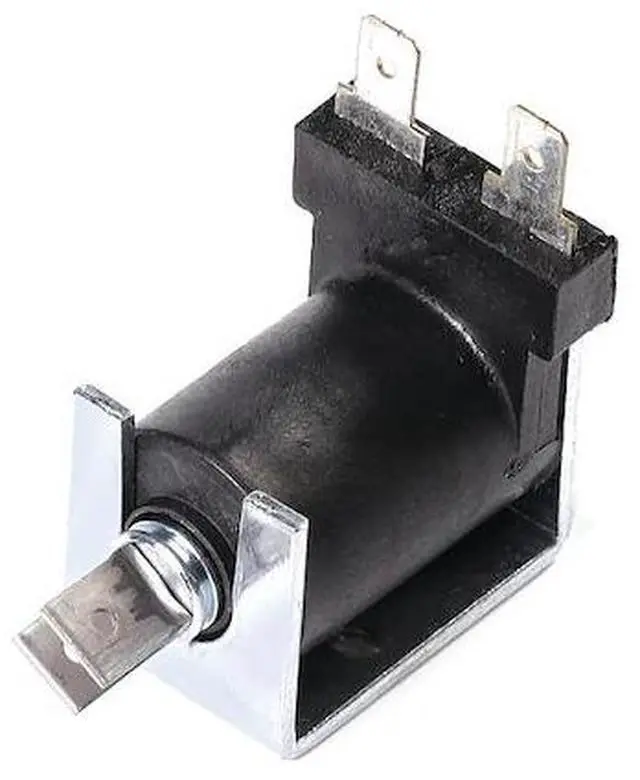

LEDEX C8-519-M-36 Solenoid, Intermittent, 12 oz, 180 sec
- The brand for this item is LEDEX
- Orders $75 or more ship free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
Solenoid, AC C-Frame Pull Type, Stroke Range 0 to 1/2 in, Pull Force Range 3.2 to 56 oz, Width 3/4 in, Depth 81/100 in, Length 1 13/100 in, Coil Volts 120 V AC, Seated Amps 0.112 A, Coil Resistance 500 ohms, Coil Insulation 105C max; Class A, Terminals 3/16 in QC, Amps @ Max. Stroke 0.146 A, Duty Cycle Intermittent, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes 2x #6-32 UNC, 3/4 in From Mounting Holes to Plunger Hole, Standards RoHS
