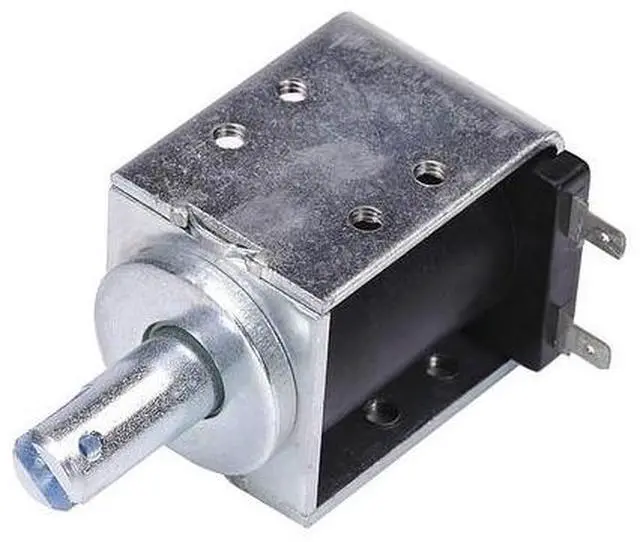

LEDEX B4HD-2-M-36 Solenoid, Continuous, 320 ohms, 14 oz
- The brand for this item is LEDEX
- Orders $75 or more ship free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
Solenoid, AC Box Frame Pull Type, Stroke Range 0 to 1 in, Pull Force Range 14.0 to 80.0 oz, Width 1 9/20 in, Depth 1 63/100 in, Length 2 9/50 in, Coil Volts 240 V AC, Seated Amps 0.075 A, Coil Resistance 320 ohms, Coil Insulation 105C max; Class A, Terminals 3/16 in QC, Amps @ Max. Stroke 0.558 A, Duty Cycle Continuous, Material of Construction Steel, Mounting Holes 8x #8-32 UNC, 2 3/25 in From Mounting Holes to Plunger Hole, Standards RoHS
