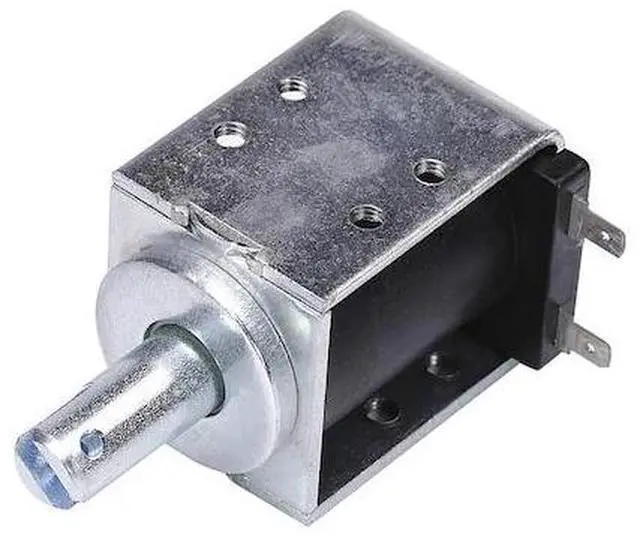

LEDEX B4HD-501-M-36 Solenoid, Intermittent, 180 sec, 1.146 A
- The brand for this item is LEDEX
- Orders $75 or more ship free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
Solenoid, AC Box Frame Pull Type, Stroke Range 0 to 1 in, Pull Force Range 48.0 to 288.0 oz, Width 1 9/20 in, Depth 1 63/100 in, Length 2 9/50 in, Coil Volts 120 V AC, Seated Amps 1.146 A, Coil Resistance 19.3 ohms, Coil Insulation 105C max; Class A, Terminals 3/16 in QC, Amps @ Max. Stroke 4.214 A, Duty Cycle Intermittent, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes 8x #8-32 UNC, 2 3/25 in From Mounting Holes to Plunger Hole, Standards RoHS
