$35.49
Ships from United States.
Meet Your Seller

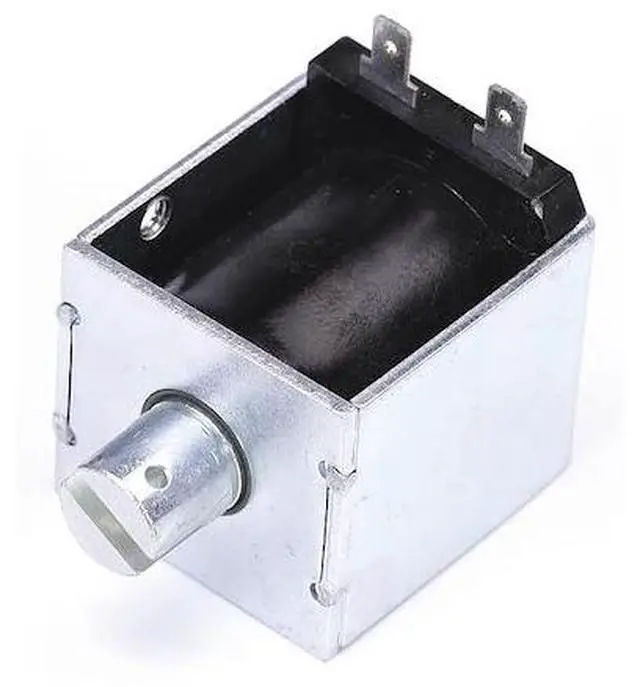

LEDEX B22-2-M-36 Solenoid, Continuous, 0.523 A, 0.09 A
- The brand for this item is LEDEX
- Orders $75 or more ship free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
Solenoid, AC Box Frame Pull Type, Stroke Range 0 to 1 in, Pull Force Range 16.0 to 88.0 oz, Width 1 31/100 in, Depth 1 47/100 in, Length 1 61/100 in, Coil Volts 240V AC, Seated Amps 0.09 A, Coil Resistance 433.0 ohms, Coil Insulation 105C max; Class A, Terminals 3/16 in QC, Amps @ Max. Stroke 0.523 A, Duty Cycle Continuous, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes 2x #10-32 UNF, 169/200 in From Mounting Holes to Plunger Hole, Standards RoHS
