Nema 17 Stepper Motor 42x40mm Body Bipolar 1.5A 400mN.m 2 Phase 4-Wire Motor 1.8° Step Angle High Torque 3D Printer Motor CNC Machine Stepper Motor 1M Motor Cable
- Item #: 9SIVUX4M8X6006
- Mfr. Part #: 324838441317
- Nema 17 stepper motor with a 42x40mm body supports integration into compatible motion-control equipment.
- Bipolar, 2-phase construction provides the specified motor configuration for precise stepper operation.
- The motor is rated at 1.5A with 4W power for the electrical specifications stated in the source.
- A 400mN.m holding torque rating supports the motor's specified holding capability during operation.
- The 1.8° step angle defines the motor's positioning increment for controlled rotational movement.
- Four wires provide the stated connection configuration for the stepper motor cable.
- The included 1M (39.3") motor cable provides the specified cable length for connection setup.
- Low-loss stators are designed to provide better high-speed performance, according to the source.
- The motor works with 3D printers and CNC machines as stated in the original product information.

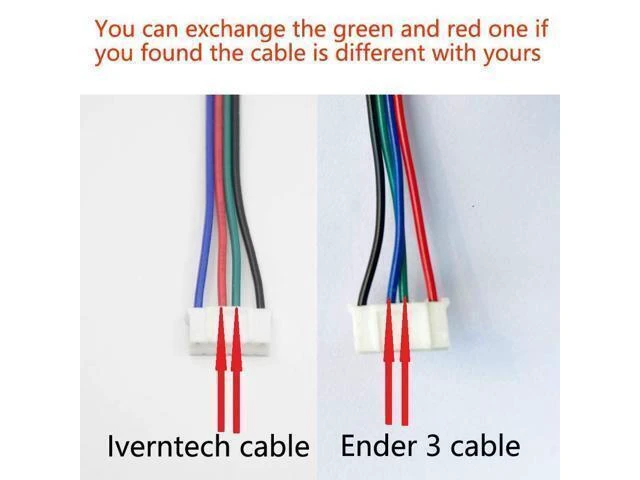

- When cable sequence differs, swap the middle green and red wires at one end for the required connection arrangement.
+
+
Overview
Specs
Reviews
Product Description:

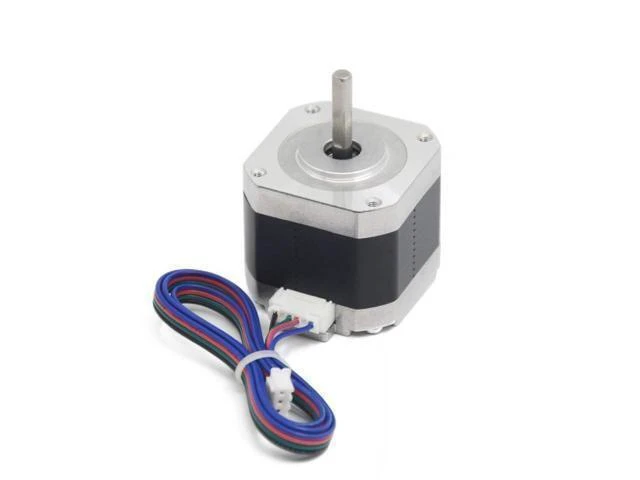

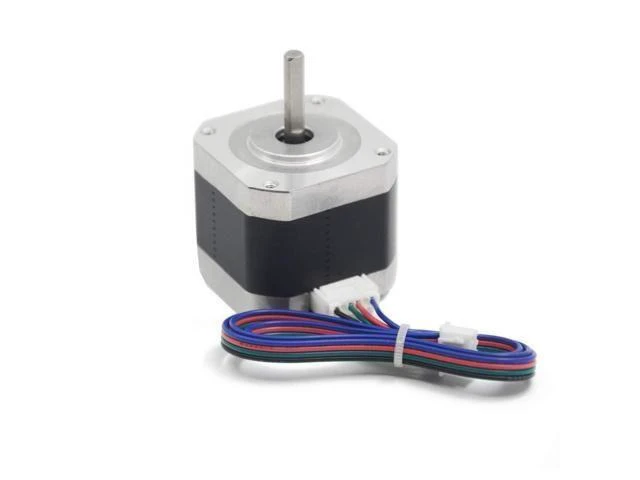

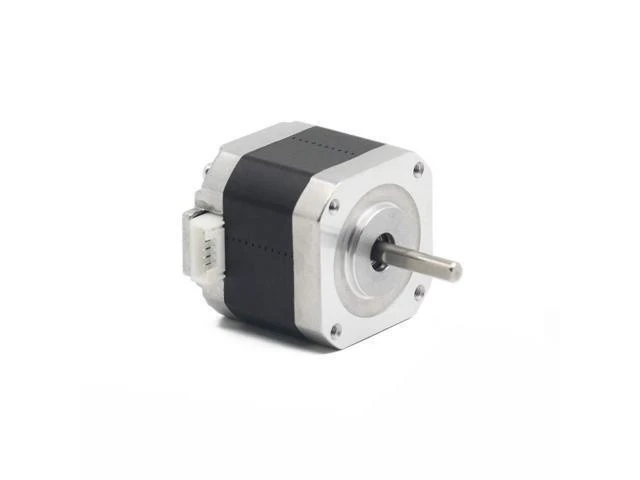

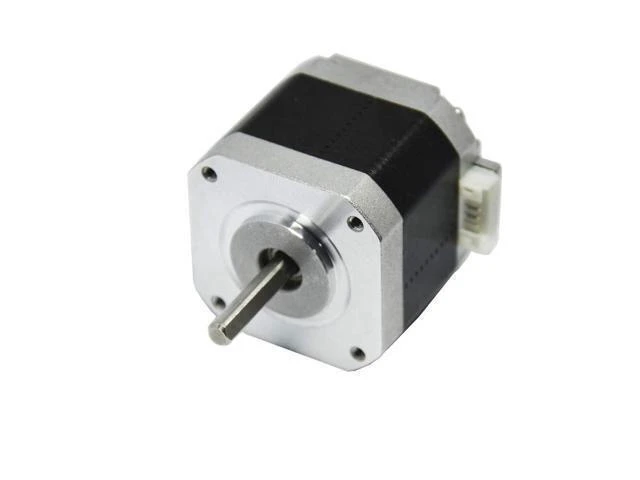

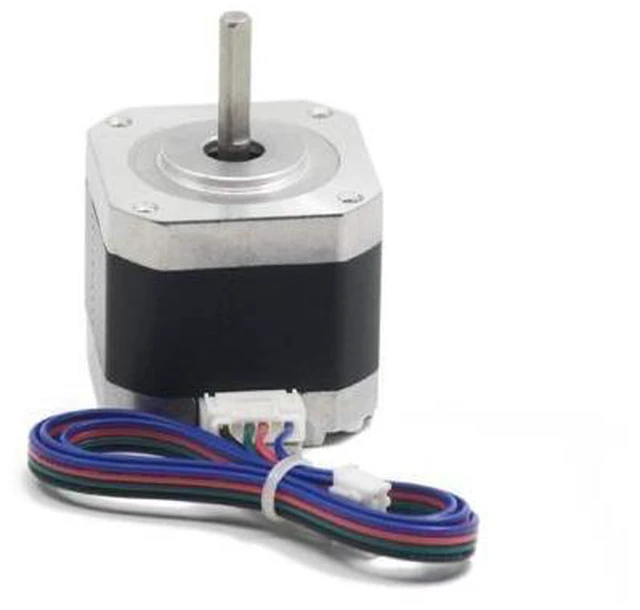

NEMA 17 bipolar stepper motor with a 42 x 40 mm body, designed for motion control applications in 3D printers and CNC machines. It uses a 2-phase, 4-wire configuration and includes a 1 m motor cable.
Core Selling Points:
High holding torque rated at 400 mN.m. Low-loss stators support improved high-speed performance. The bipolar 2-phase design is suitable for compatible 3D printer and CNC machine assemblies.
Technical Specifications:

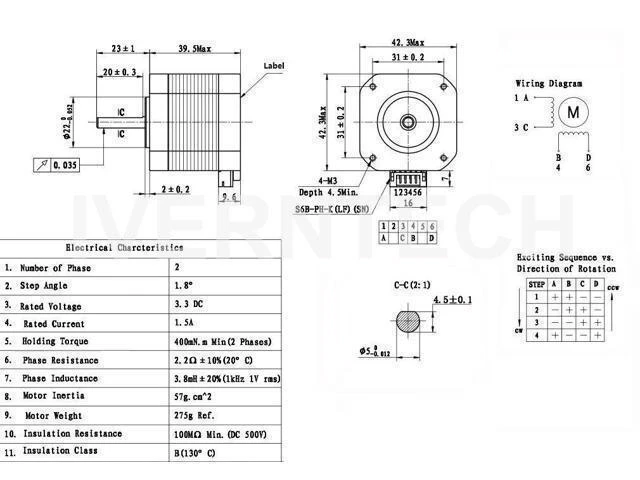

Motor type: NEMA 17 stepper motor. Body size: 42 x 40 mm. Configuration: Bipolar, 2 phase, 4 wires. Current: 1.5 A. Power: 4 W. Step angle: 1.8°. Holding torque: 400 mN.m. Cable length: 1 m.
Package Contents:
NEMA 17 stepper motor with 1 m motor cable.
Before Purchase:
Verify that the motor specifications, mounting space, current requirements, and cable sequence match your equipment before purchase. When the motor cable sequence differs from the equipment wiring, the middle two wires, green and red, at one end may need to be swapped.
