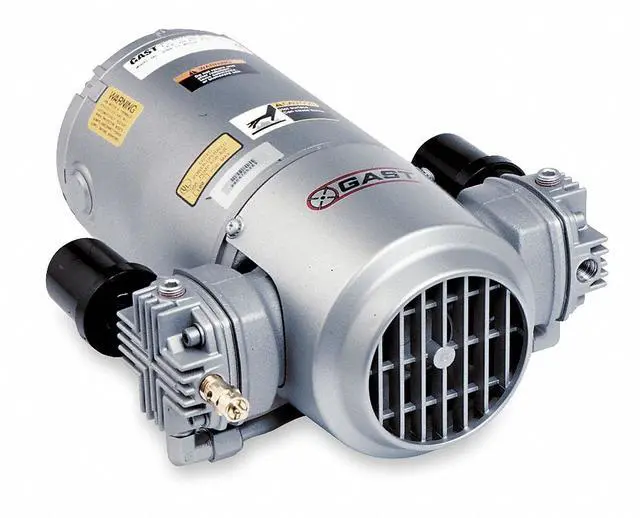

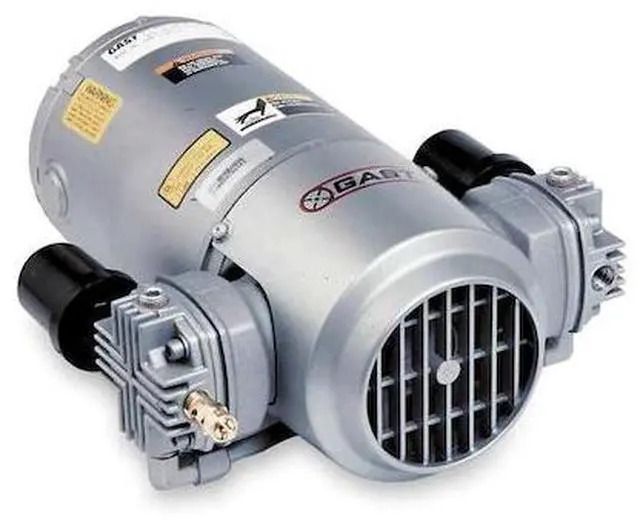

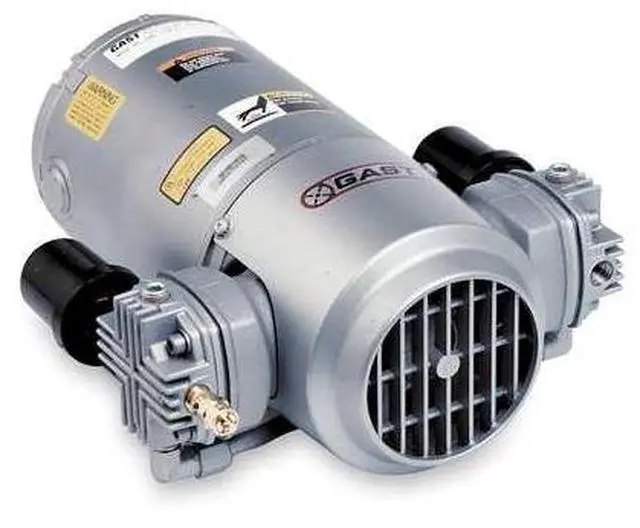

GAST 3HBB-32-M300AX Piston Air Compressor,1/3HP,115V,1Ph

The Gast 3HBB-32-M300AX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/3 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 1.1 CFM at 100 psi up to 2.4 CFM at 0 psi, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1, 725 RPM, a full-load current of 6.6 A, and a measured sound level of 75 dBA.

The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, an electric motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 17.25 x 14.25 x 11.25 in (L x W x H).
Duty cycle: continuous.. This item has been restricted from sale in the following state (s): []
