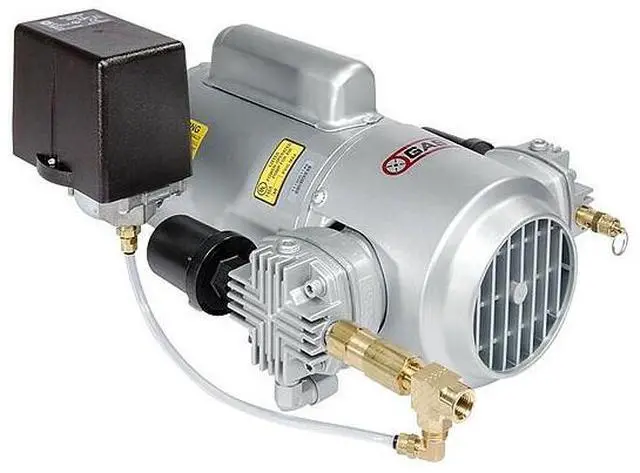

GAST 4LCB-246S-M450GX Piston Air Compressor, 1/2HP, 115/230V, 1Ph

The Gast 4LCB-246S-M450GX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 1/2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 4.1 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1, 750 RPM, a full-load current of 12/6 A, and a measured sound level of 75 dBA. The operating temperature range is 32 to 104°F.

Construction includes a cast iron cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 16.062 x 12.25 x 8.333 in (L x W x H).. This item has been restricted from sale in the following state (s): []
