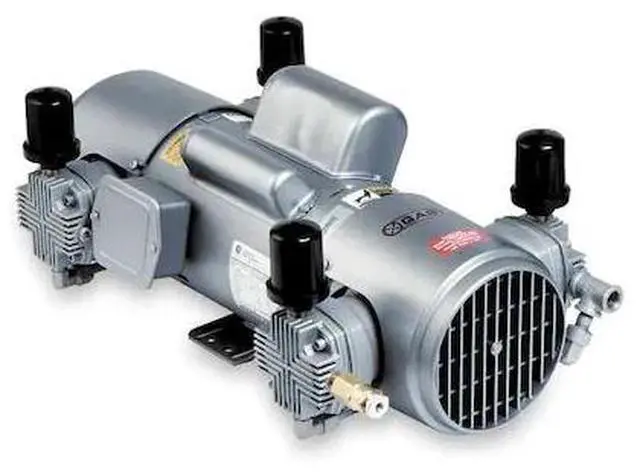

GAST 8HDM-19-M850X Piston Air Compressor, 2HP, 115/230V, 1Ph

The Gast 8HDM-19-M850X is an oil-free, four-cylinder piston air compressor with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 7 CFM at 100 psi up to 11.0 CFM at 0 psi, and a maximum continuous pressure of 100 psi. It has a maximum speed of 1, 725 RPM, a full-load current of 24/12 A, and a measured sound level of 63 dBA.

The operating temperature range is 32 to 104°F. Construction includes an aluminum cylinder, a shaded-pole motor, and corrosion resistant sandwich valves. Air connections are 3/8 in NPT inlet and outlet. Overall dimensions are 21.5 x 12.25 x 8.5 in (L x W x H).
Duty cycle: continuous. The manufacturer lists typical applications including aeration, beverage dispensing, business machines, packaging, and photographic processing.. This item has been restricted from sale in the following state (s): []
