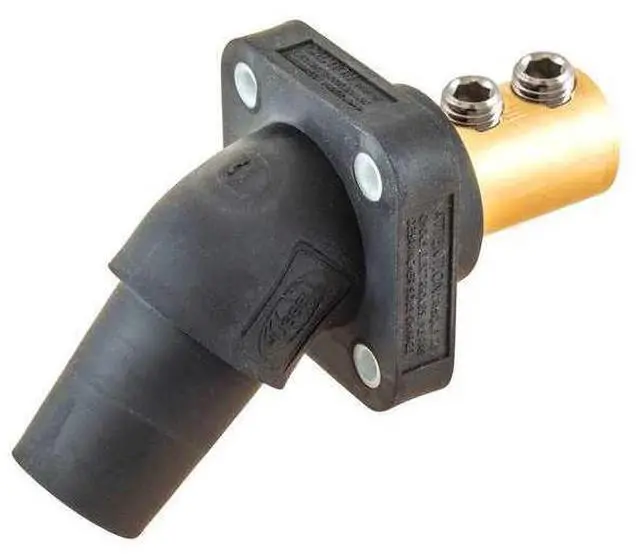

HUBBELL WIRING DEVICE-KELLEMS HBLFRABK Angled Receptacle,Black,Double Set Screw

The HUBBELL Angled Receptacle, Black, Double Set Screw is a single pole device intended for use in temporary electrical power distribution applications. This angled receptacle features a double set screw terminal connection and is compatible with Series 16 devices. It accommodates cable sizes from 4 AWG to 4/0 AWG and supports both AC and DC applications up to 400 amps and 600 volts.

Key Features of the HUBBELL Angled Receptacle:

• Amperage Rating: Rated for up to 400 A (AC/DC)


• Voltage Rating: Suitable for use at up to 600V AC or 250V DC


• Cable Range: Accepts wire sizes from #4 AWG to 4/0 AWG


• Connection Orientation: Angled configuration accommodates certain installation requirements


• Terminal Connection Type: Double set screw terminal connection is used for conductor retention


• Contact Material: Brass contacts are used as the contact material


• Housing Material: Thermoplastic elastomer housing is used as the enclosure material


• NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X standards for protection against dust, water, and corrosion


• Mounting Style: Through hole mounting with screw mount configuration


• Compatible Series/Fits: Designed for use with Series 16; fits Series 16 male connectors; female gender configuration


• Taper Nose End Type matches standard single pole device styles within this series
