Cooling for your next build.
SXD9225B24M · DC 24V
See the fan. Match the supply. Plan the fit.
A closer look at your fan.

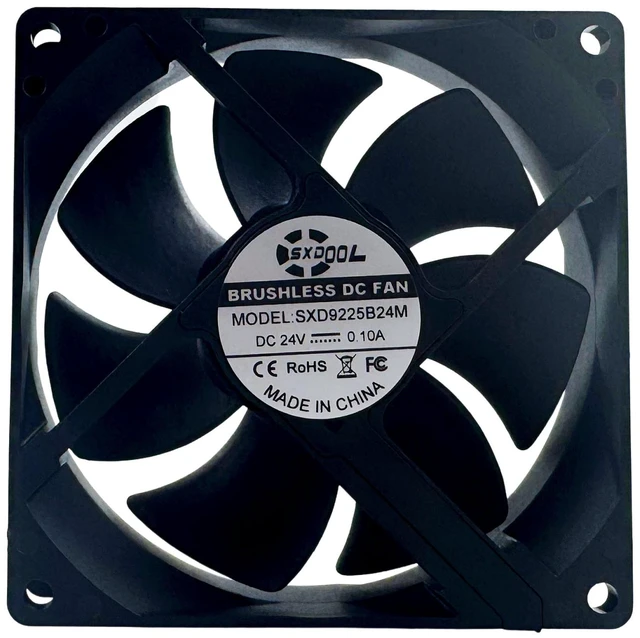

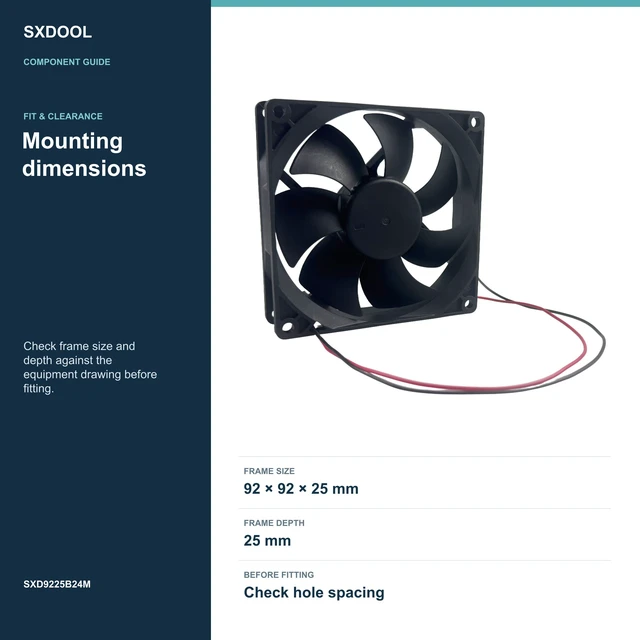

Impeller & leads
See the fan face and extended wire leads.

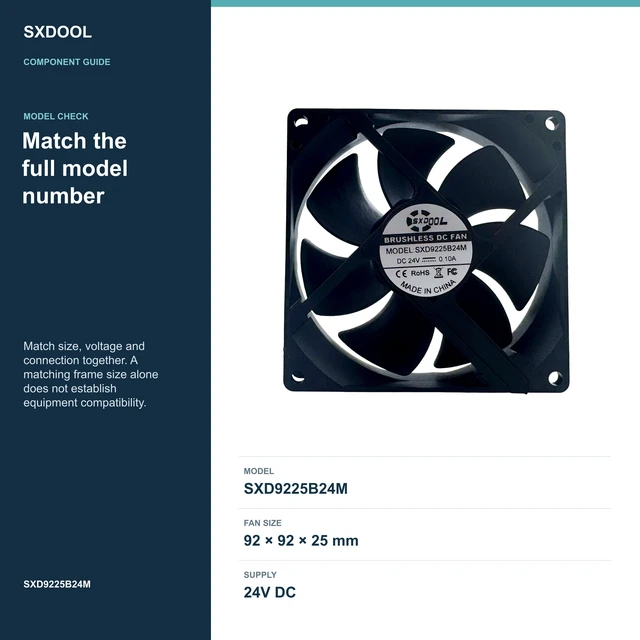

The exact model
Read the model and electrical rating on the rear label.

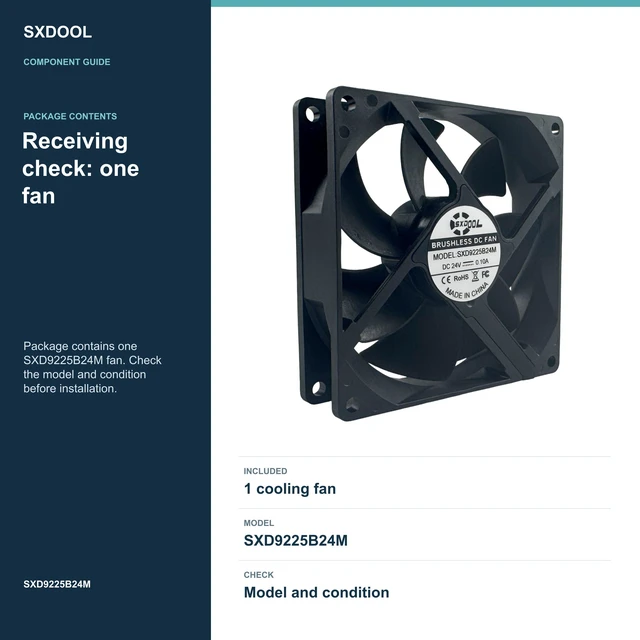

A second perspective
Review the frame and wire route from the motor side.
Design the airflow path.
Plan the space. Match the supply. Keep airflow clear.
Allow room for ventilation and service access around the equipment. Confirm the mounting and electrical requirements of your installation.

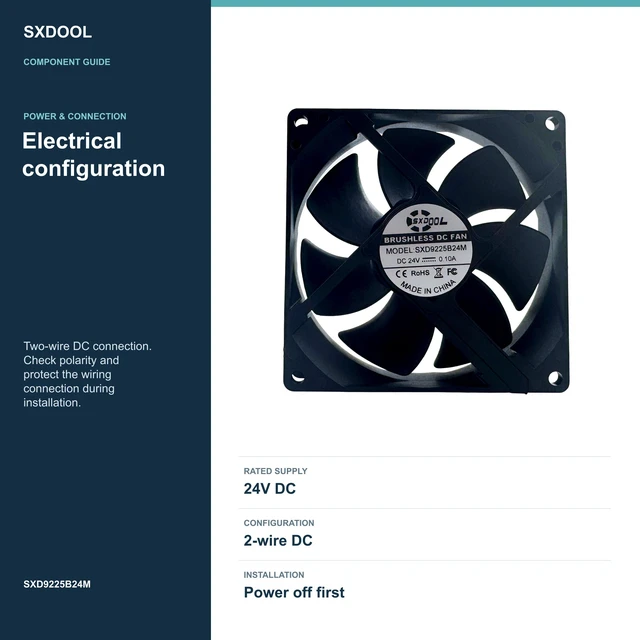

Match the label. Plan the connection.
DC 24V · 0.10 A
The product label identifies SXD9225B24M. Check the supply and wiring information for this exact model before connecting it. The product photos show two wire leads. Match the lead connections to your equipment's DC wiring information. These leads are not a direct AC-wall-outlet connection.
Check. Connect. Cool.

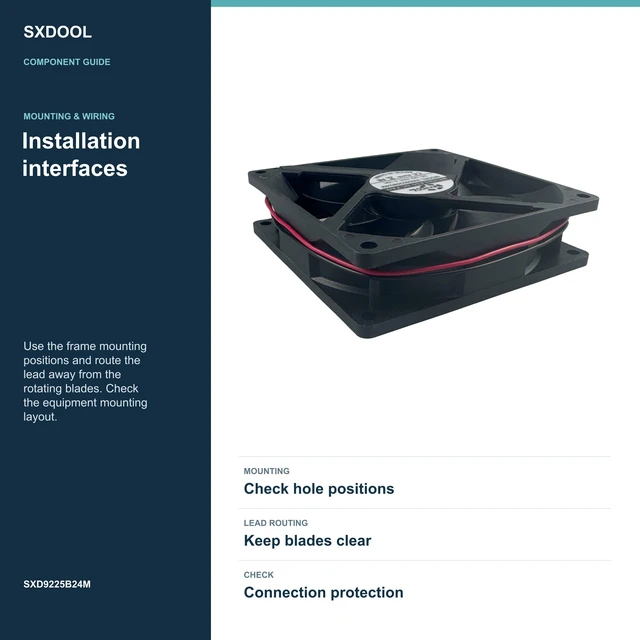

Three checks before installation
Compare the frame and mounting-hole positions with your equipment. Allow space for the fan depth and wiring. Use the electrical information for SXD9225B24M. The label specifies DC 24V and 0.10 A. Keep the wiring away from the impeller. Leave the ventilation path open. Disconnect power before installation or service.
Technical Specifications
Fan dimensions and performance
| Model | SXD9225B24M |
|---|---|
| Dimensions | 92 x 92 x 25 mm |
| Bearing | Dual ball bearing |
| Rated Voltage | 24 V DC |
| Rated Current | 0.10 A |
| Speed | 3300 RPM |
| Airflow | 55 CFM |
| Noise Level | 34 dBA |
| Products | ||||
|---|---|---|---|---|
| Rated supply | DC 24V | DC 12V | DC 24V | DC 12V |
| Label current | 0.10 A | 0.20 A | 0.05 A | 0.60 A |
Which electrical version is this?
This is the SXDOOL SXD9225B24M. Its product label specifies DC 24V and 0.10 A. Choose the version that matches your equipment's DC supply.
How do I choose the right replacement fan?
Compare the model number and frame outline. Check the mounting-hole positions and available depth. Compare the wiring connection. Matching the supply voltage alone does not establish a direct replacement.
Which other SXDOOL models should I compare?
Related models include SXD9225B12M and SXD6025B24L and SXD9238B12H. Compare their individual product information before ordering. These are separate models with different electrical or physical configurations.
How does this fan connect?
The product photos show two wire leads. Match the lead connections to your equipment's DC wiring information. These leads are not a direct AC-wall-outlet connection.
Can I use it underwater?
This page does not specify an immersion depth or duration. If you plan a submerged application obtain the operating conditions for the exact model before ordering. External connections and the equipment enclosure also need protection suited to the installation.
Does a higher voltage or current mean more airflow?
Voltage identifies the required supply. The current printed on the label is electrical information. Compare model-specific airflow and noise specifications when choosing cooling performance. Neither label value is an airflow rating.
Can I use the 12V and 24V versions interchangeably?
The 12V and 24V versions require different DC supplies. Select the exact model for the voltage available in your equipment. Do not treat the two versions as interchangeable.
