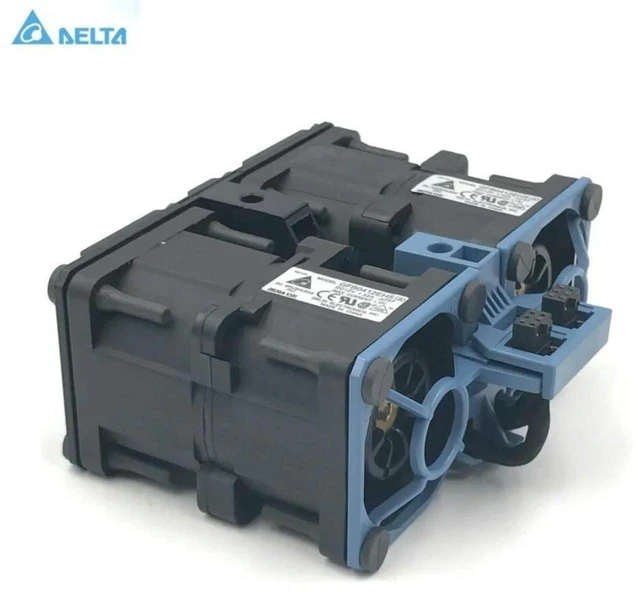

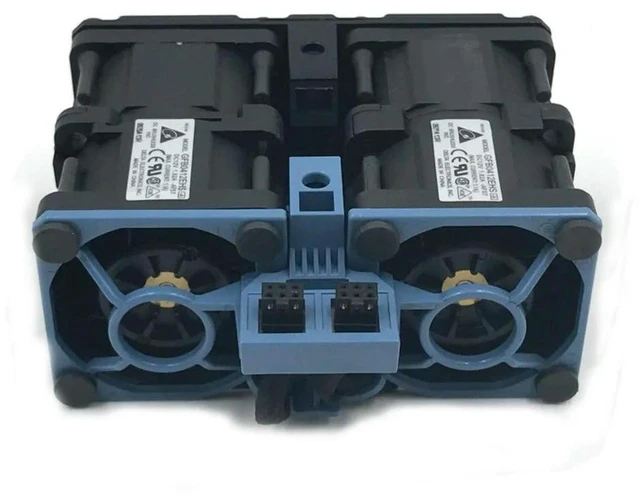

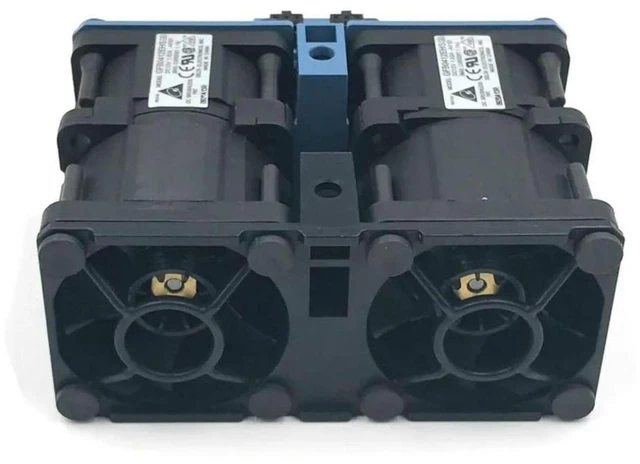

GFB0412EHS Dual Rotor Cooling Fan DC 12V 1.82A PWM Thermal Cooling Fan with Tachometer Feedback 40x40x56mm Double Ball Bearing Fan Module P/N 489848-001 SPS P/N 532149-001

Product Description:

GFB0412EHS dual-rotor server cooling fan designed for thermal management in compact 1U rack server systems. It provides airflow and heat dissipation for CPU and system components and can serve as a replacement fan module when the original fan fails, triggers a fan alarm, produces abnormal noise, or stops spinning.

Core Selling Points:

The dual-rotor structure delivers strong airflow and high static pressure for efficient heat dissipation. PWM speed control enables fan speed regulation, while tachometer feedback allows the server motherboard to monitor fan speed in real time. The double ball bearing design supports stable operation, low vibration, and continuous server running.

Technical Specifications:

Model: GFB0412EHS

Rated Voltage: DC 12V

Rated Current: 1.82A

Dimension: 40×40×56mm

Bearing Type: Double Ball Bearing

Rotor Design: Dual Rotor

Control and Feedback: PWM Speed Control + Tachometer Speed Feedback

P/N: 489848-001

SPS P/N: 532149-001

Application: 1U Server Thermal Cooling Replacement

Package Contents:

1 × Server Fan Module

Before Purchase:

Confirm that your server is a DL360 G6 or DL360 G7 1U rack server and that the model, rated voltage, current, dimensions, and part numbers match your existing fan before purchase. This fan is rated for DC 12V and 1.82A and uses PWM speed control with tachometer speed feedback.
