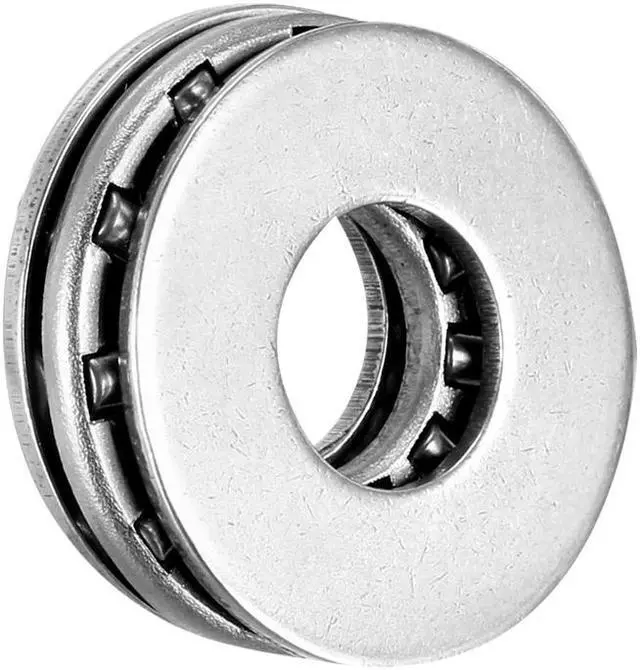

AXK0819+2AS Needle Roller Thrust Bearings w Washers, 8mm Bore Diameter, 19mm OD

1.This Uxcell Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.

2.These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.

3.AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.

4.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.

5.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

KEY_TAB

KEY_TAB

Specification:

Bearing No.: AXK0819

Bearing Washer No.: AS0819

Needle Roller Meterial: Chromium Steel (GCr15)

Cage Meterial: ST13 Steel

Bearing Washer Meterial: 65Mn Spring Steel

Bore Diameter (d): 8mm

Outside Diameter (D): 19mm

Bearing Thickness (T1): 2mm

Washer Thickness (T2): 1mm

Total Thickness: 4mm

Number of Pack: 1 Pcs
