Tc1625 Needle Roller Thrust Bearings with Washers 1-inch Bore 1-9/16-inches Od 5/64-inch Width 11000rpm Limiting Speed

Description:

KEY_TAB

KEY_TAB

• This Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
• These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.

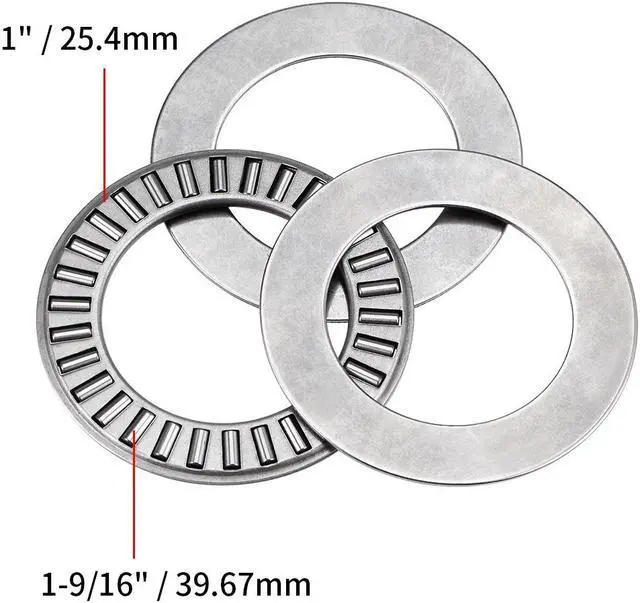

• Thrust Bearings can be combined with washers in applications where adjacent components cannot serve as raceways.
• Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

KEY_TAB

Specification:

Bearing No.: TC1625+2TRA

Needle Roller Material: Chromium Steel (GCr15)

Cage Material: ST14 Steel

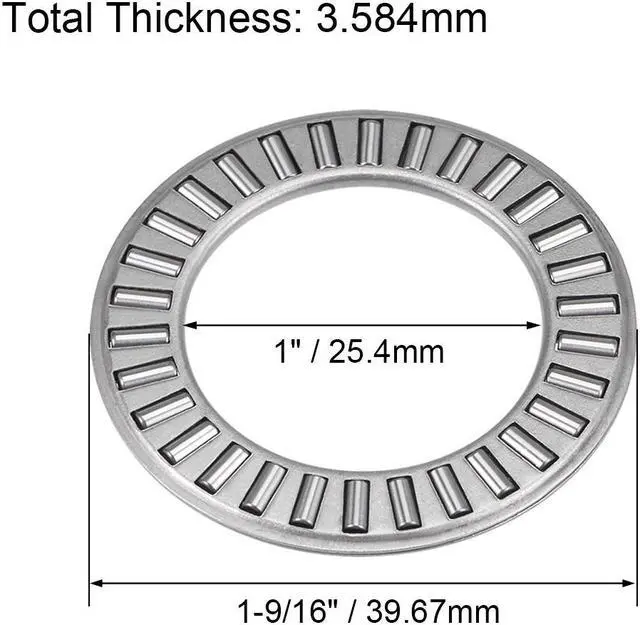

Bore Diameter (d): 1" / 25.4mm

Outside Diameter (D): 1-9/16" / 39.67mm

Bearing Thickness (T1): 5/64" / 1.984mm

Washer Thickness (T2): 0.8mm

Total Thickness: 3.584mm

Dynamic Load Capacity (Cr): 10764N

Static Load Capacity (Cor): 43902N

Maximum Rotational Speed (Oil): 11000rpm

Number of Pack: 1 Pcs
