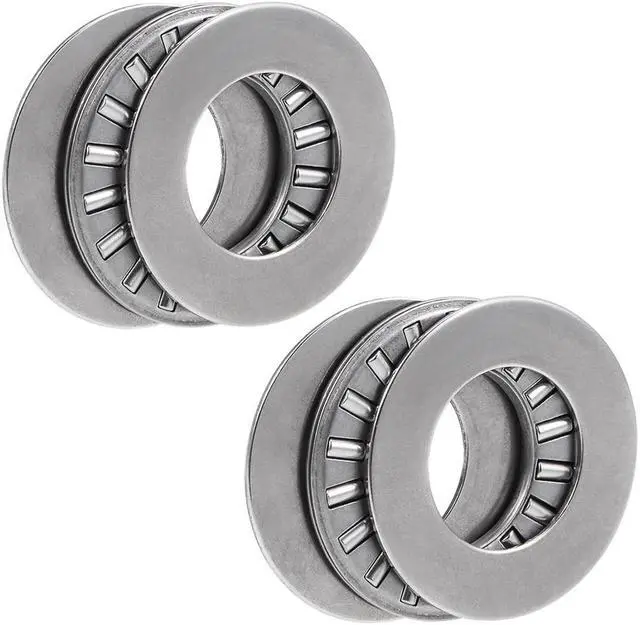

NTA1625 Thrust Needle Roller Bearings with Washers 1" Bore 1-9/16" OD 5/64" Width 2pcs
- Item #: 9SIV0KKDJ94432
- Mfr. Part #: a19111200ux0180
- [Model] - Bearing Model: NTA1625 (I.D.=1", O.D.=1-9/16", Thickness=5/64"); Washer Model: TRA1625
- [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
- [FEATURES] - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
- [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
- [CAPABILITY] - 67.8kN Static Load Capacity, 13.8kN Dynamic Load Capacity, 7000RPM Maximum Rotational Speed
+
+
Overview
Specs
Reviews
Description:
- Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.
- These bearings to accommodate heavy axial loads and peak loads due toKEY_TAB small diameter deviation of the rollers within one assembly.
- AXKKEY_TAB Thrust Bearings can be combined with washers in the TRA series in applications where adjacent components cannot serve as raceways.

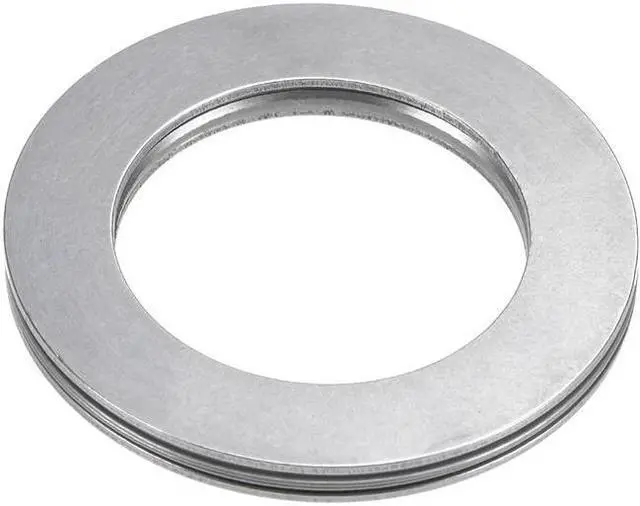

- Made of hardenedKEY_TAB spring steel,KEY_TAB both faces of the washers are polished and can be used as raceways.
- Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.

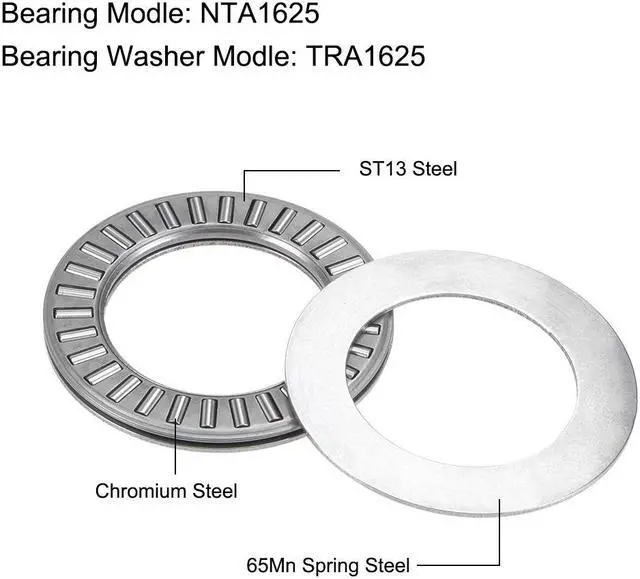

- Bearing Model: NTA1625
- Bearing Washer Model: TRA1625
- Needle Roller Material: Chromium Steel (GCr15)
- Cage Material: ST13 Steel
- Bearing Washer Material: 65Mn Spring Steel
- Bore Diameter (d): 1"
- Outside Diameter (D): 1-9/16"
- Bearing Thickness (T1): 5/64"
- Washer Thickness (T2): 0.032"(Approx.)
- Dynamic Load Capacity (Cr): 13.8kN
- Static Load Capacity (Cor): 67.8kN
- Limiting Speed (Oil): 7000RPM
- 2 x Bearings
- 4 x Bearing Washers
