Mini-Fit Jr. 4.2mm 8Pin Female Receptacle to Open End Cable Dual Row 8 Circuits Power & Signal Cable Compatible with 39-01-2080 (1PC, 1.5M/4.92FT)

Item #: 9SIVTD8M585394
Mfr. Part #: C6T1824-XMHCD0022

Be the first to review this product...

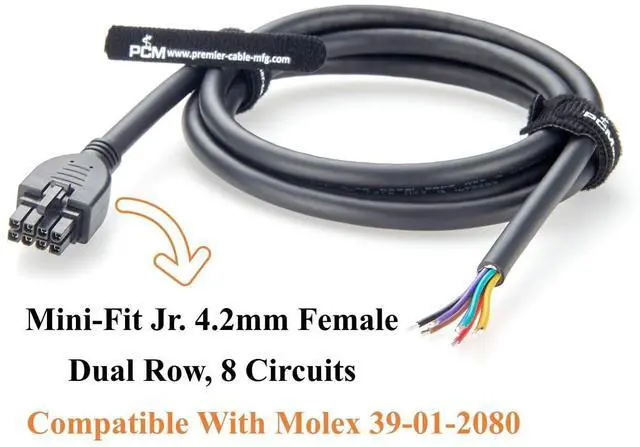

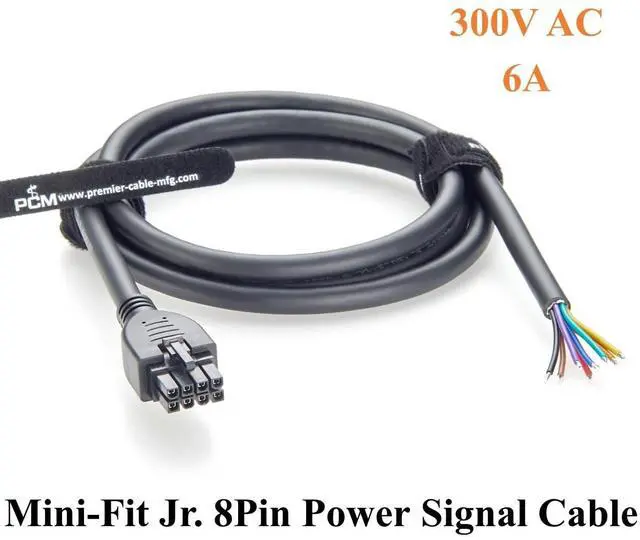

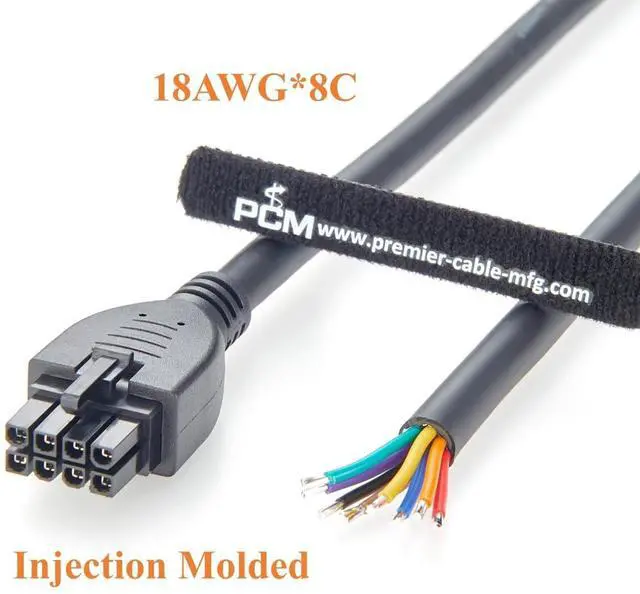

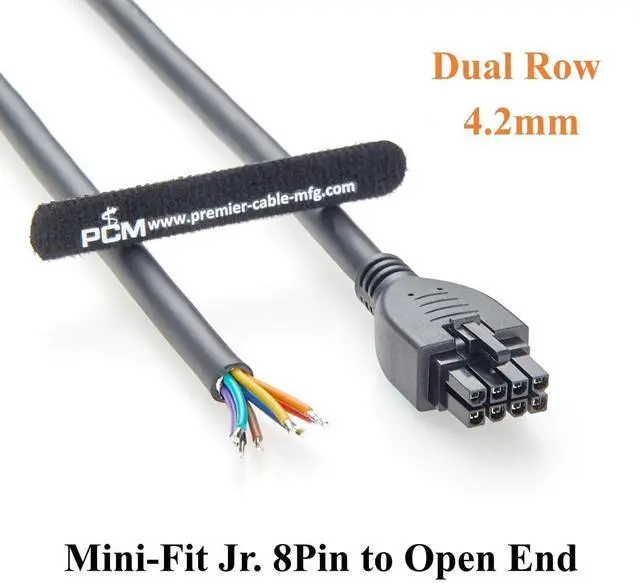

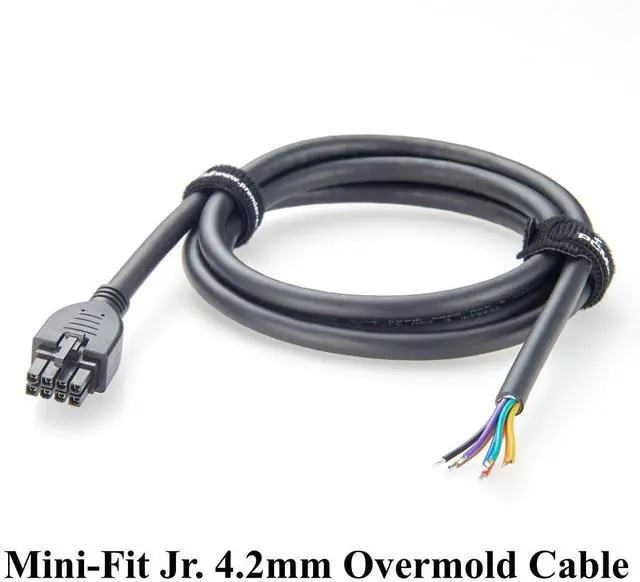

Mini-Fit Jr. 4.2mm Standard Connector The Cable Features Mini-Fit Jr. 4.2 Female Receptacle Housing, 4.2mm Pitch, Dual Row, 8 Circuits, Compatible With 39-01-2080.; Open-End Design The Mini-Fit Jr. 4.2mm Overmolded Cable Assembly Comes with Open-ended Wires Providing maximum flexibility for custom integration and DIY projects. allows users to freely solder, crimp, or connect the wires to PCB board, power module, or terminal block according to their own design needs.; 6A/300V Max Mini-Fit Jr. 4.2mm Open End Wire Assembly, 18AWG 8-Conductor Stranded Tinned Copper Wires, Durable UL2464 PVC Jacket, Providing safe and stable power and signal transmission, Supports up to 6A per Contact and 300V AC.; Overmolded The Mini-Fit 8 Pin Female Socket is injection molded, offers excellent durability and strain relief, provides stronger tensile strength, vibration resistance, and fixation capabilities.; Application Mini-Fit Jr. 8 Circuits Powers Signal Cable, for Power Distribution, Wire-to-Board, Wire-to-Wire, Signal Transfer, Robotics, Servers, Data Center, Industrial Control Systems, PLC, I/O Modules, LED Fixtures, Light Strips, 3D Printers, Relays, CNC Machines, DIY electronics and so on.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.

Overview

Specs

Reviews

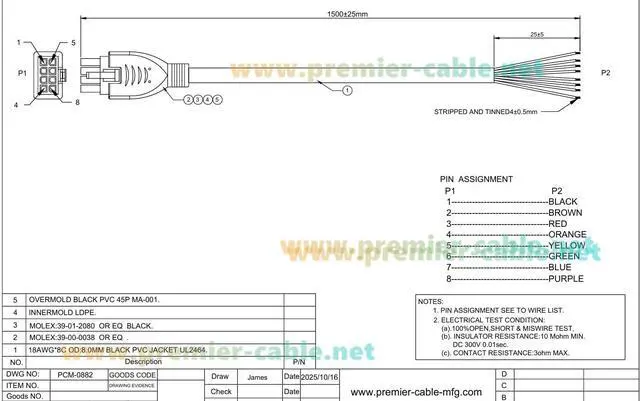

Specification: Product
Name: Mini-Fit Jr. 39-01-2080 8 Circuits Power & Signal Cable
Part No.: PCM-0882
Connector A: Mini-Fit Jr. 4.2 Receptacle Housing, Dual Row, 8 Circuits, Compatible With 39-01-2080
Length: 1.5M / 4.92FT
Cable Type: 18AWG*8C;
UL2464 PVC Jacket OD: 8MM
Voltage Max: 300V AC
Current Max: 6A
