Right Angle Micro-Fit 3.0mm 4 Pin OTS Cable Assembly 45 Degree Micro Fit Power & Signal Cable 5A 300V 20AWG (Right, 1.5M)
- Item #: 9SIVTD8M585383
- Mfr. Part #: C6T1824-XMHCD0040

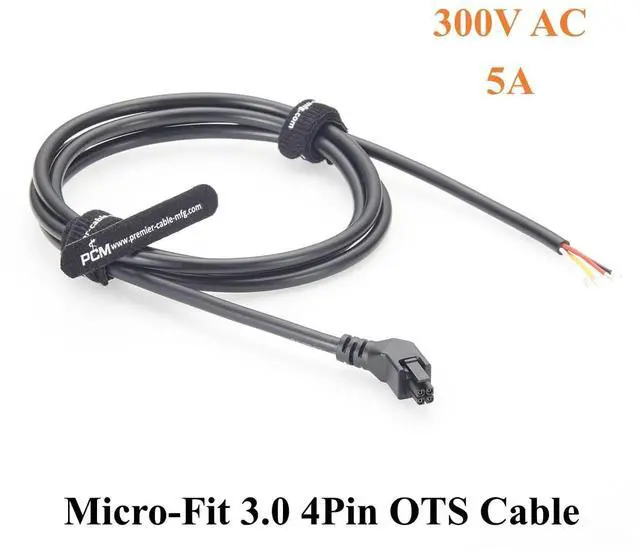

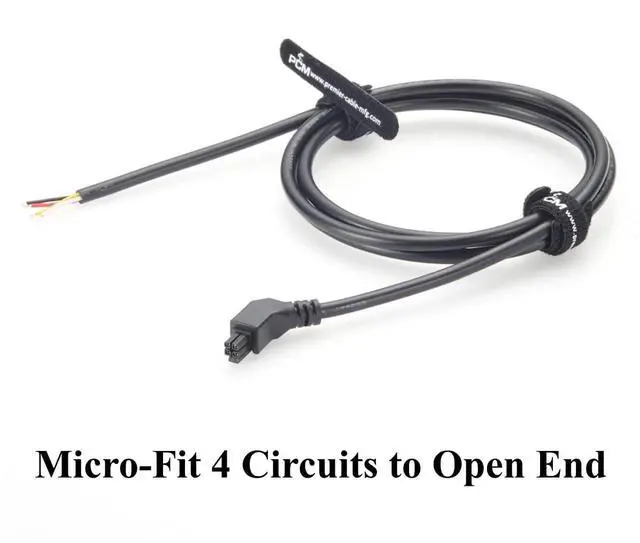

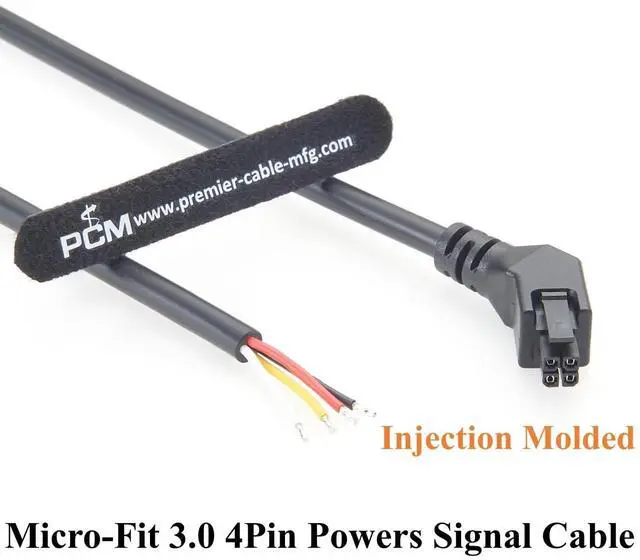

- Right Angled Micro-Fit 3.0 Connector The Cable Features Micro-Fit Female Receptacle Housing, Compact 45 Degree injection molded, 3.0mm Pitch, Dual Row, 4 Circuits. When facing the Micro Fit pins, the cable exits from the Right side; Open-End Design The Micro-Fit 3.0 4Pin Cable Assembly Comes with Open-ended Wires, Providing maximum flexibility for custom integration and DIY projects. allows users to freely solder, crimp, or connect the wires to PCB board, power module, or terminal block according to their own design needs.; 5A/300V Max 45 Degree Micro-Fit Receptacle OTS Cable, 20AWG 4-Conductor Stranded Tinned Copper Wires, Durable UL2464 PVC Jacket, Providing safe and stable power and signal transmission, Supports up to 5A per Contact and 300V AC.; Application Micro-Fit 3.0 4 Circuits Powers Signal Cable, for Power Distribution, Wire-to-Board, Wire-to-Wire, Signal Transfer, PCB Connection & Control Board Wiring, Industrial Automation, Robotics, IoT devices, Embedded systems, Custom Wiring, Prototyping, DIY electronics, and so on.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Specification: Product

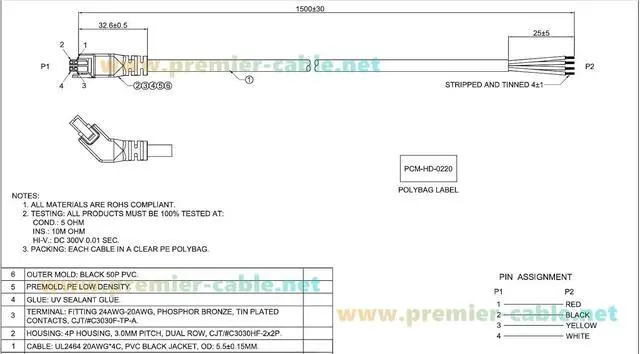

Name: 45 Degree Right Angle Micro-Fit 3.0 4Pin Receptacle OTS Cable Assembly
Part No.: PCM-HD-0220

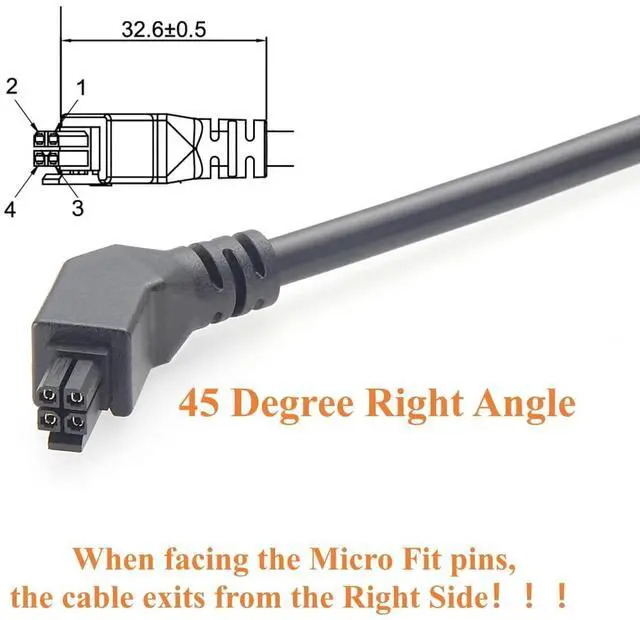

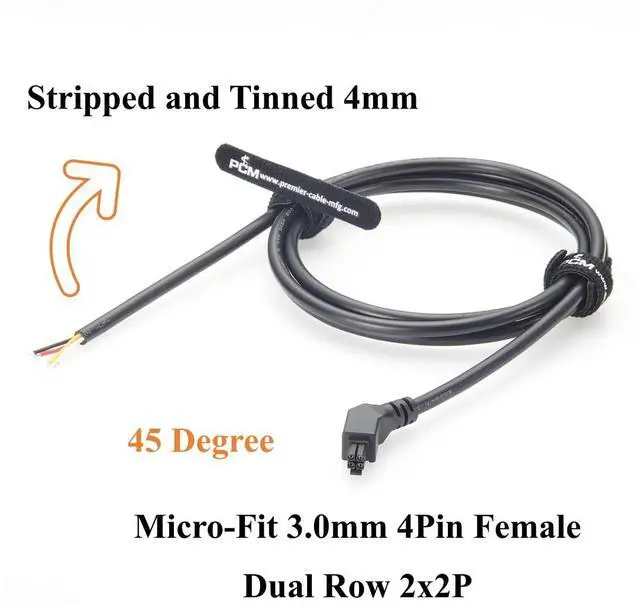

Connector A: 45 Degree Micro-Fit 3.0 mm 4Pin Female, Dual Row 2x2P, When facing the Micro Fit pins, the cable exits from the
Right Side Length: 1.5M / 4.92FT
Cable Type: UL2464 20AWG*4C;
PVC Jacket OD: 5.5MM
Voltage Max: 300V AC
Current Max: 5A
Name: 45 Degree Right Angle Micro-Fit 3.0 4Pin Receptacle OTS Cable Assembly
Part No.: PCM-HD-0220
Connector A: 45 Degree Micro-Fit 3.0 mm 4Pin Female, Dual Row 2x2P, When facing the Micro Fit pins, the cable exits from the
Right Side Length: 1.5M / 4.92FT
Cable Type: UL2464 20AWG*4C;
PVC Jacket OD: 5.5MM
Voltage Max: 300V AC
Current Max: 5A
