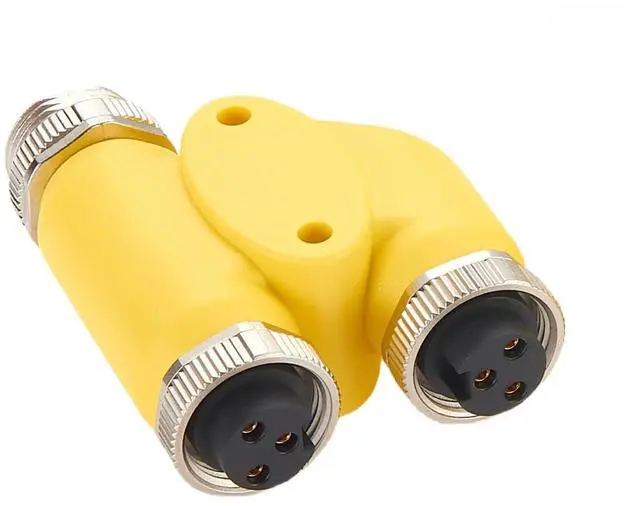

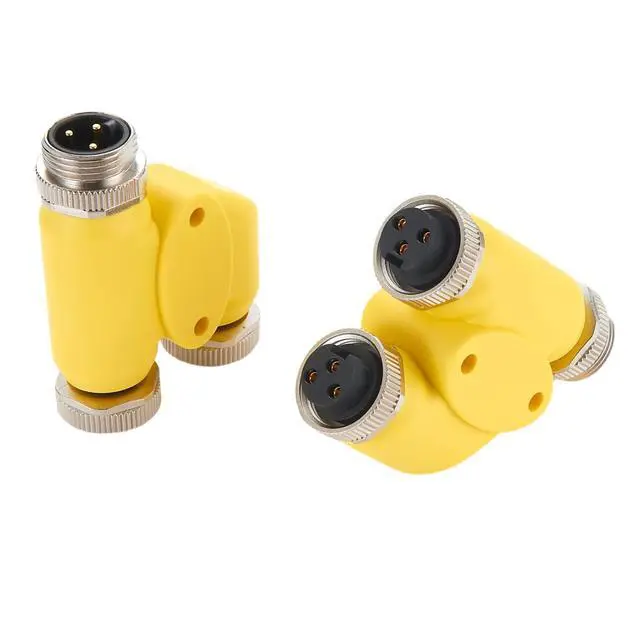

3 Pin 3 Way Mini Change 7/8"-16UN Y H Splitter IP67 Waterproof 7/8" Male to Female Mini-Fast Circular Straight Connector Backbone Cable H Distributor for DeviceNet NMEA2000 CANopen Profibus (3Pin)
- Item #: 9SIVTD8M585017
- Mfr. Part #: C6T1824-XMHCD0259
- Standard 7/8"-16UNF InterfaceUses a universal 7/8-inch UNF circular connector, Thread Locking Mechanism, Anti-vibration locking.compatible with a wide range of industrial equipment, suitable for branch connections such as sensors and actuators.; IP67 WaterProof7/8 inch Threaded Connector with 3 Core Construction, IP67 waterproof rating, for stable connection in harsh environments.; High Performance7/8"-16UNF Field Wireable Y Distributor, Gold Plated Contact,PVC Material,high and low temperature resistance, oil resistance, corrosion resistance, ultraviolet resistance,high-frequency plug-in resistance.; 3 Way H Distributor7/8" Male to 2 Female H Splitter, one-input and two-output configuration, simplify the wiring plan, and improve the system installation efficiency.; ApplicationStraight 3 Way 7/8" Circular Y Connector Widely Compatible With DeviceNet, NMEA 2000, CANopen,Profibus,IO-Link and other CAN Bus Protocol Systems.For sensors, actuators,motor,marine radar,Automated Assembly, Equipment Packaging, Equipment Robotics, Equipment Bus Systems & Transportation Equipment.; Custom CableWe are a professional cable manufacturer,please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Technical:
Connector: 7/8"-16UNF
Mini-Change Y H Splitter Gender: Male to 2*Female Number of

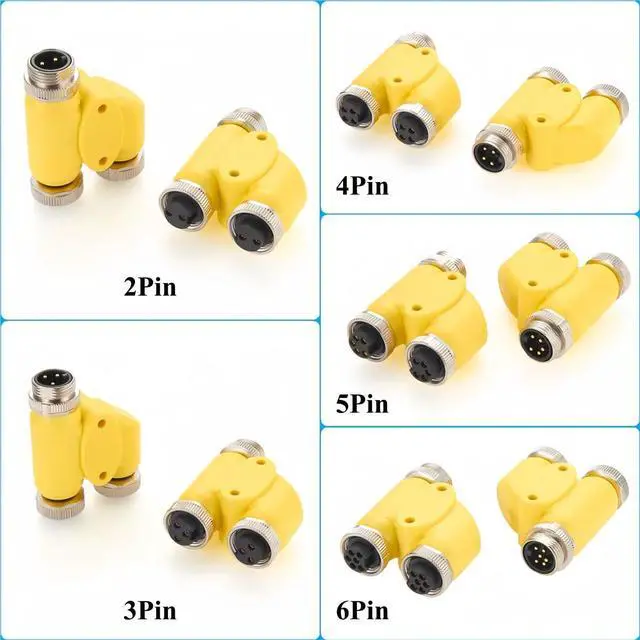

Cores: 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin
Optional Jump Wire: 16AWG
Fire Retardant Grade: UL94-V0
Rated Voltage: 600V
Rated Current: 9
A Contact: Gold Plated
Connector: 7/8"-16UNF
Mini-Change Y H Splitter Gender: Male to 2*Female Number of
Cores: 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin
Optional Jump Wire: 16AWG
Fire Retardant Grade: UL94-V0
Rated Voltage: 600V
Rated Current: 9
A Contact: Gold Plated
