Main image of Compatible with 43025-0400 4 Pin Micro-Fit 3.0 Receptacle Housing to Open End Cable Assembly Dual Row 4 Circuits Power Signal Cable (1PC, 1.5M/4.92FT)

Alt view image 2 of 7 - Compatible with 43025-0400 4 Pin Micro-Fit 3.0 Receptacle Housing to Open End Cable Assembly Dual Row 4 Circuits Power Signal Cable (1PC, 1.5M/4.92FT)

Alt view image 3 of 7 - Compatible with 43025-0400 4 Pin Micro-Fit 3.0 Receptacle Housing to Open End Cable Assembly Dual Row 4 Circuits Power Signal Cable (1PC, 1.5M/4.92FT)

Alt view image 4 of 7 - Compatible with 43025-0400 4 Pin Micro-Fit 3.0 Receptacle Housing to Open End Cable Assembly Dual Row 4 Circuits Power Signal Cable (1PC, 1.5M/4.92FT)

Alt view image 5 of 7 - Compatible with 43025-0400 4 Pin Micro-Fit 3.0 Receptacle Housing to Open End Cable Assembly Dual Row 4 Circuits Power Signal Cable (1PC, 1.5M/4.92FT)

Alt view image 6 of 7 - Compatible with 43025-0400 4 Pin Micro-Fit 3.0 Receptacle Housing to Open End Cable Assembly Dual Row 4 Circuits Power Signal Cable (1PC, 1.5M/4.92FT)

Alt view image 7 of 7 - Compatible with 43025-0400 4 Pin Micro-Fit 3.0 Receptacle Housing to Open End Cable Assembly Dual Row 4 Circuits Power Signal Cable (1PC, 1.5M/4.92FT)

Shop All Colorfire Products | Visit TERRA HAVEN Store

Compatible with 43025-0400 4 Pin Micro-Fit 3.0 Receptacle Housing to Open End Cable Assembly Dual Row 4 Circuits Power Signal Cable (1PC, 1.5M/4.92FT)

Item #: 9SIVTD8M584855
Mfr. Part #: C6T1824-XMHCD0321

Be the first to review this product...

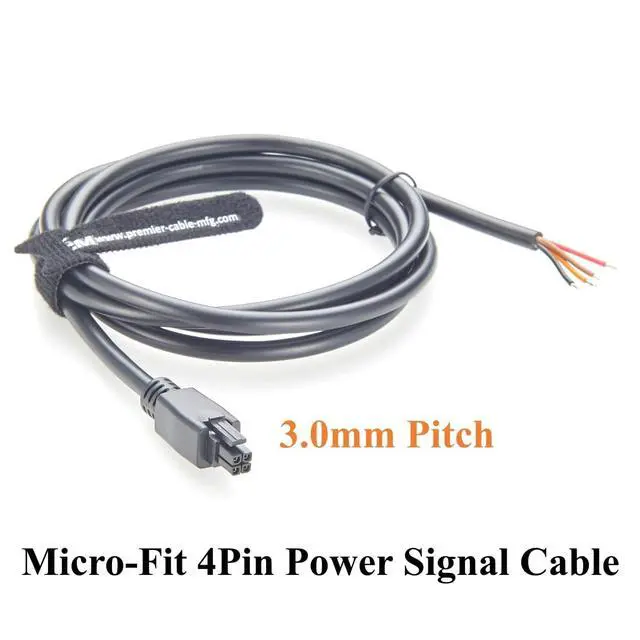

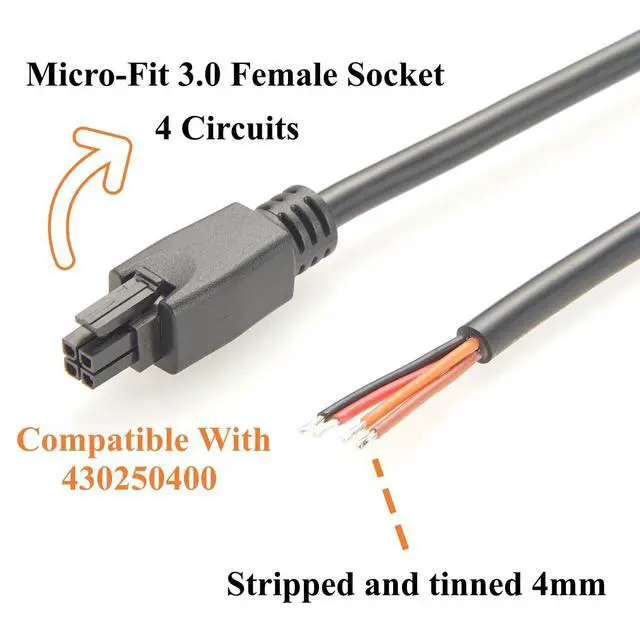

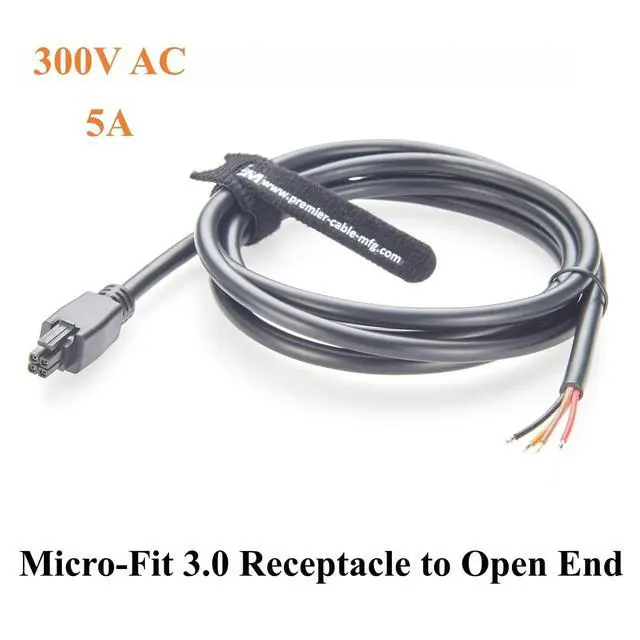

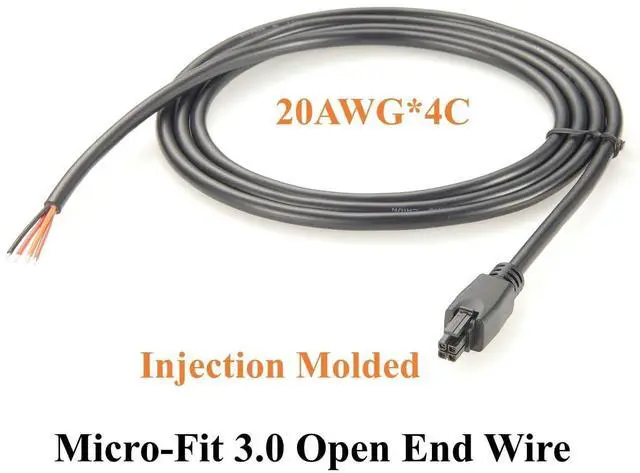

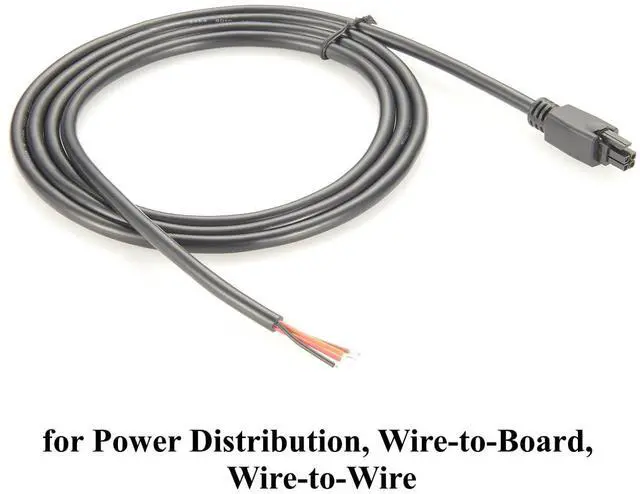

Micro-Fit 3.0 Standard Connector The Cable Features Micro-Fit 3.0 Female Receptacle Housing, 3.0mm Pitch, Dual Row, 4 Circuits, Compatible With 43025-0400.; Open-End Design The Micro-Fit 3.0 Cable Assembly Comes with Open-ended Wires Providing maximum flexibility for custom integration and DIY projects. allows users to freely solder, crimp, or connect the wires to PCB board, power module, or terminal block according to their own design needs.; 5A/300V Max Micro-Fit 3.0 Open End Wire Assembly, 20AWG 4-Conductor Stranded Tinned Copper Wires, Durable UL2464 PVC Jacket, Providing safe and stable power and signal transmission, Supports up to 5A per Contact and 300V AC.; Overmolded The Micro-Fit 3.0 Female Socket is injection molded, offers excellent durability and strain relief, provides stronger tensile strength, vibration resistance, and fixation capabilities.; Application Micro-Fit 3.0 4 Circuits Powers Signal Cable, for Power Distribution, Wire-to-Board, Wire-to-Wire, Signal Transfer, PCB Connection & Control Board Wiring, Industrial Automation, Robotics, IoT devices, Embedded systems, Custom Wiring, Prototyping, DIY electronics, and so on.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements. Please contact us if the cable you received is defective or does not work. We will solve the problems properly or send you a new replacement at once.

Overview

Specs

Reviews

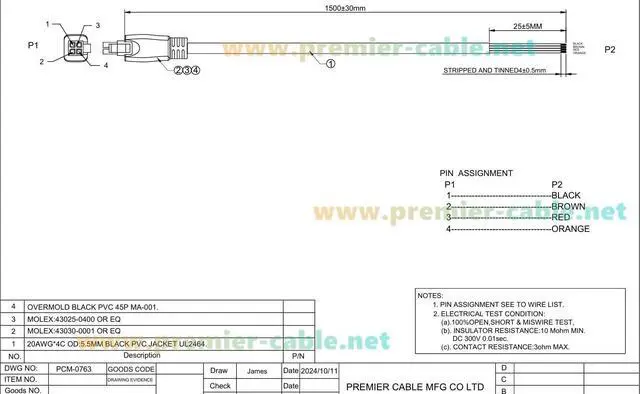

Specification: Product
Name: Compatible With Micro-Fit 3.0 43025-0400 4 Circuits Power Signal Cable
Part No.: PCM-0763
Connector A: Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, Compatible With 430250400
Length: 1.5M / 4.92FT
Cable Type: 20AWG*4C;
UL2464 PVC Jacket OD: 5.5MM
Voltage Max: 300V AC
Current Max: 5A
