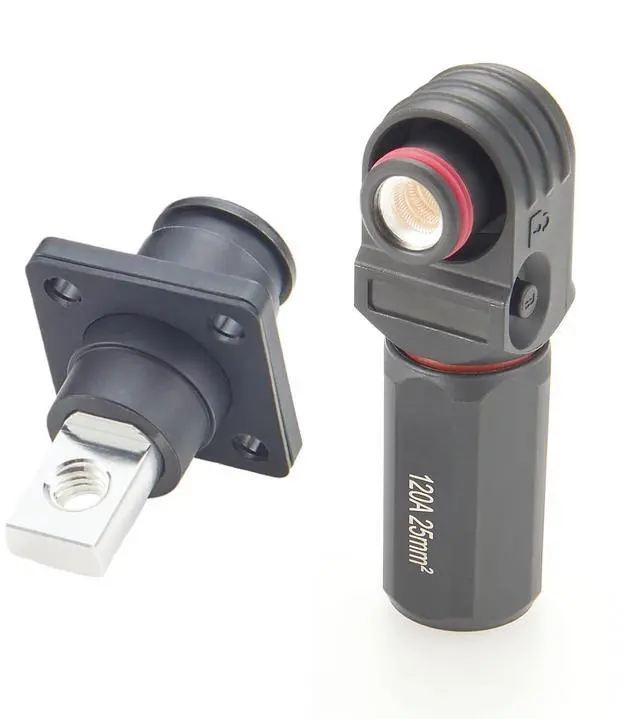

1 Set Battery Energy Storage Connector 120A 25mm² High Current HV Connectors Quick Plug Terminal Right Angle Plug and Socket IP67 Waterproof Power Adapter (Black, 120A)
- Item #: 9SIVTD8M584431
- Mfr. Part #: C6T1824-XMHCD0813
- Product Parameters Rated Current: 120A; Wire Cross Section: 25mm²; OD: 6mm; Waterproof Grade(Plug-In): IP67; Working Temperature: -40°C ~ +125°C; Flammability: UL94 V-0; Durability: 500 Mating Cycles.; Premium Structural The Battery Energy Storage Connector are Made of Pure Copper Core+Silver-Plated and Feature Flame Retardant PA66 Shell, IP67 rating, Quick Lock and Press to Release Design, Ensure high conductivity, high voltage resistance, stable and safe connection even in severely vibrating environments.; Firm And Flexible Connection This Battery Energy Storage Plug is color coded and has a unique interface to prevent cross insertion, ensuring high safety when connecting battery terminals. This connector has reverse polarity function and can rotate 360°, making it suitable for flexible cable sockets in modular battery racks.; Easy Installation Features Screw Chassis Flange Panel Mount Design, The wiring is secure and stable with the screw fixing, Safe, stable electrical connection, even in demanding environments.; Application HV Battery Storage Plug for Solar Power Stations, Electric Vehicles, Smart Grids, UPS & Backup System, Data Center, Industrial Power Distribution, Heavy Equipment Power System, Large-Capacity Battery, Battery Energy Storage Cabinet, Home Energy Storage, Water-Cooled Inverter, Photovoltaic PV System and so on.; Custom Cable We are a professional cable manufacturer,please contact us for customised requirements. Please contact us if t
+
+
Overview
Specs
Reviews
Specifications
: ProudctName: 1 Set Battery Energy
Storage Connector Plug Type: Single-Core Right-Angle Plug, Crimp
Socket Connection Method: Busbar/Screw

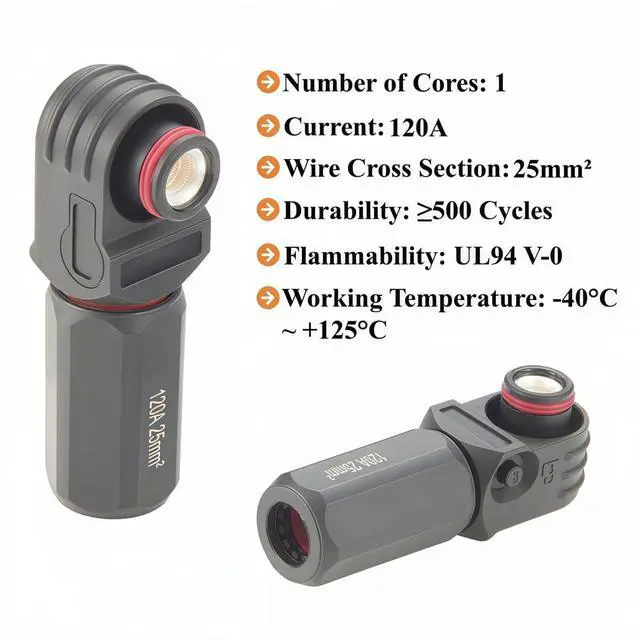

Rated Current: 120A
Wire Cross Section: 25mm²

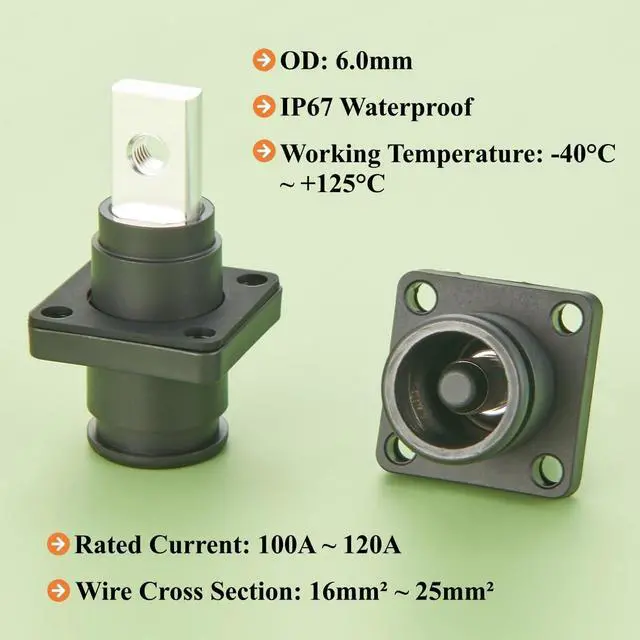

OD: 6.0 mm
Color: Orange/Black Optional
Waterproof Grade(Plug-In): IP67
Working Temperature: -40°C ~ +125°C

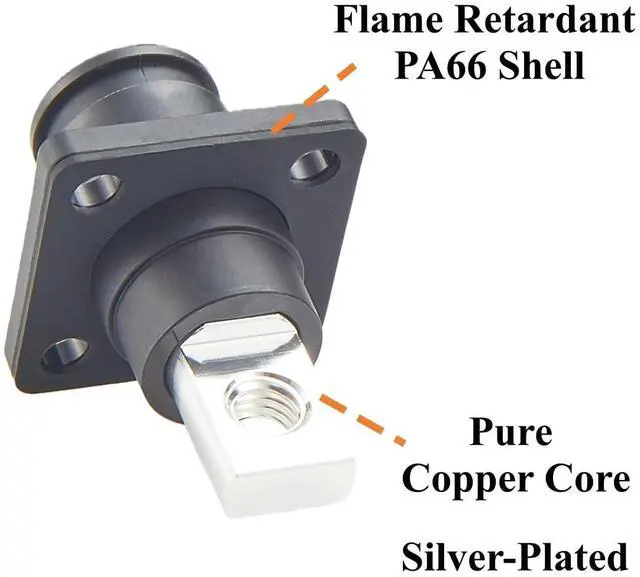

Material: Pure Copper Core+Silver-Plated+PA66
Shell Flammability: UL94
V-0 Durability: 500 Mating Cycles
