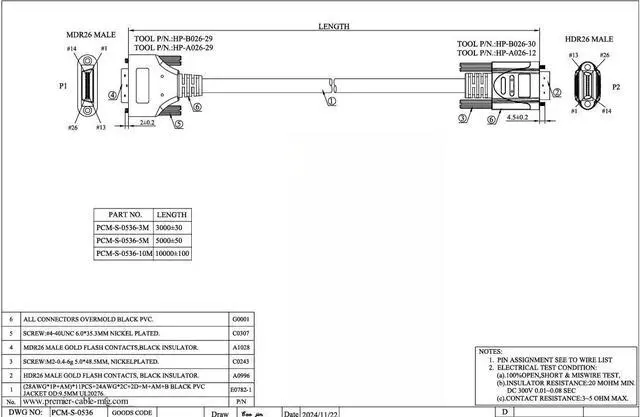

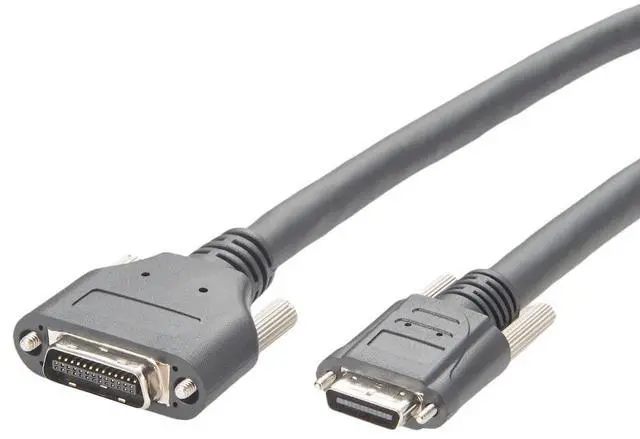

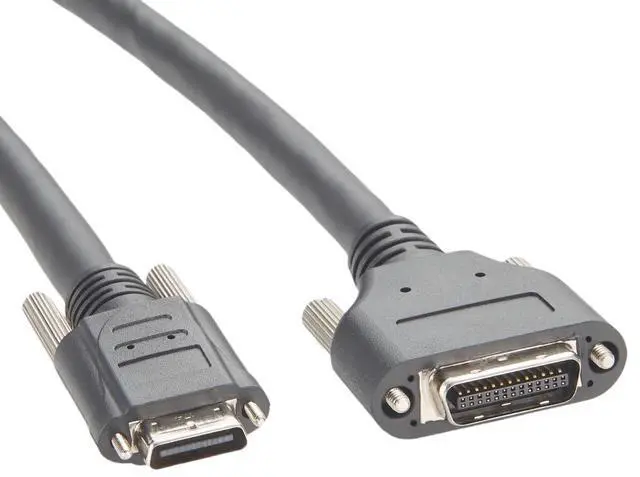

Camera Link Machine Vision MDR 26Pin to SDR 26Pin Cable PoCL Power Over Camera Link High Flex Data Cable with Screw for Frame Grabber Robotics (3M/10FT)
- Item #: 9SIVTD8M584179
- Mfr. Part #: C6T1824-XMHCD0924
- Product Parameter Connector Type: MDR 26Pin Connector,SDR 26Pin Connector; Cable Length: 10FT/16FT/33FT Optional; OD: 9.5MM; Wire Gauge: 28AWG; Jacket Material: UL20276 PVC.; Advantage The High Flex Drag Chain Cable with 1,000,000 flex cycle rating,conforms to UL standards and RoHS Directive.The real-time Machine Vision protocol to assure fast transfer of large files with no latency issues.; Screw Lock MDR26 (mini delta ribbon 26 pin) to SDR26 (shrunk delta ribbon 26 pin) connectors are robust and durable with standard locking screws to prevent accidental disconnects on your critical applications.; PoCL The assembly is capable of PoCL (Power over Camera Link) which allows the camera to be powered by the frame grabber through the Camera Link cable, eliminating the need for a separate power cable to save space, time and cost in your installations.; Application This cable is suitable for Industrial Camera,Machine Vision,Frame Grabber,Medical imaging,Industrial Automation,Robot Visual,Traffic Monitoring,3D Vision,Process Control Systems.; Custom Cable We are a professional cable manufacturer, please contact us for customised requirements.Please contact us if the cable you received is defective or does not work.We will solve the problems properly or send you a new replacement at once.
+
+
Overview
Specs
Reviews
Specifications
: ConnectorType: MDR 26Pin to
SDR26 Gender: Male to Male
Wire Gauge: 28AWG
Cable Length: 10FT/16FT/33FT
Jacket Material: UL20276 PVC High Flex Drag Chain OD: 9.5MM
Technology: PoCL Power Over
Camera Link Application: Machine Vision Systems including Frame Grabbers and Cameras Quality Control and Automatic Inspection Process Control Systems Medical Devices and Imaging Robot Guidance and robotics
