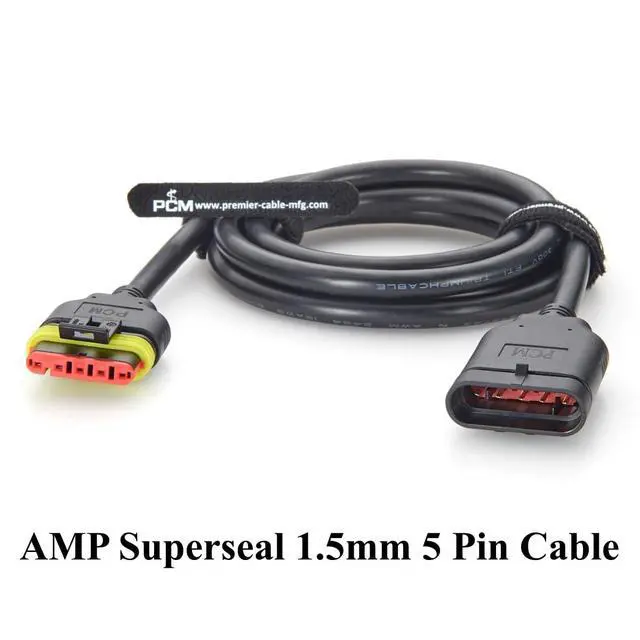

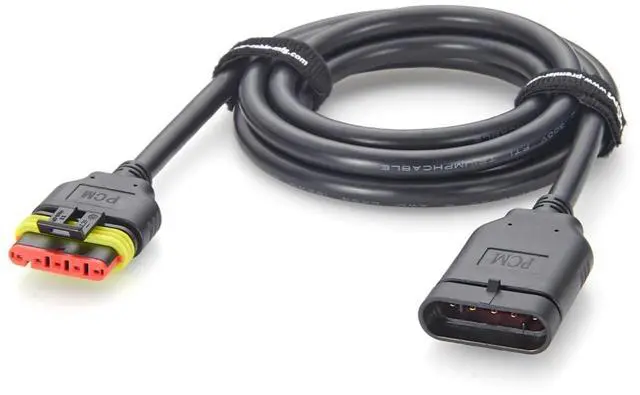

Main image of 5 Pin TE AMP Superseal 1.5 Series Cable Assembly Waterproof Automotive Male to Female Connector 282107-1 282089-1 (5Pin, 2M/6.6FT)

Alt view image 2 of 7 - 5 Pin TE AMP Superseal 1.5 Series Cable Assembly Waterproof Automotive Male to Female Connector 282107-1 282089-1 (5Pin, 2M/6.6FT)

Alt view image 3 of 7 - 5 Pin TE AMP Superseal 1.5 Series Cable Assembly Waterproof Automotive Male to Female Connector 282107-1 282089-1 (5Pin, 2M/6.6FT)

Alt view image 4 of 7 - 5 Pin TE AMP Superseal 1.5 Series Cable Assembly Waterproof Automotive Male to Female Connector 282107-1 282089-1 (5Pin, 2M/6.6FT)

Alt view image 5 of 7 - 5 Pin TE AMP Superseal 1.5 Series Cable Assembly Waterproof Automotive Male to Female Connector 282107-1 282089-1 (5Pin, 2M/6.6FT)

Alt view image 6 of 7 - 5 Pin TE AMP Superseal 1.5 Series Cable Assembly Waterproof Automotive Male to Female Connector 282107-1 282089-1 (5Pin, 2M/6.6FT)

Alt view image 7 of 7 - 5 Pin TE AMP Superseal 1.5 Series Cable Assembly Waterproof Automotive Male to Female Connector 282107-1 282089-1 (5Pin, 2M/6.6FT)

Shop All Colorfire Products | Visit TERRA HAVEN Store

5 Pin TE AMP Superseal 1.5 Series Cable Assembly Waterproof Automotive Male to Female Connector 282107-1 282089-1 (5Pin, 2M/6.6FT)

Item #: 9SIVTD8M583932
Mfr. Part #: C6T1824-XMHCD1053

Be the first to review this product...

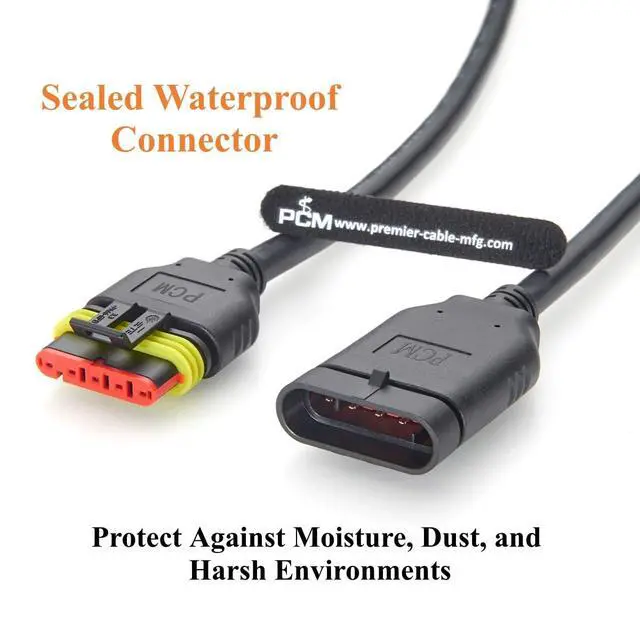

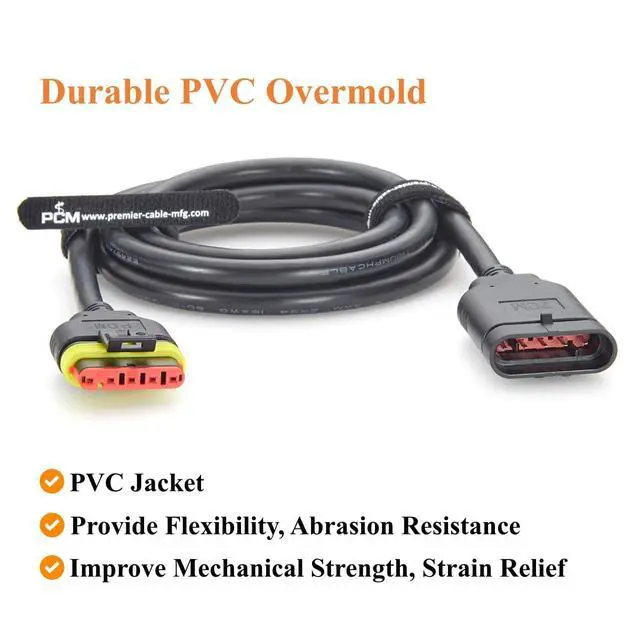

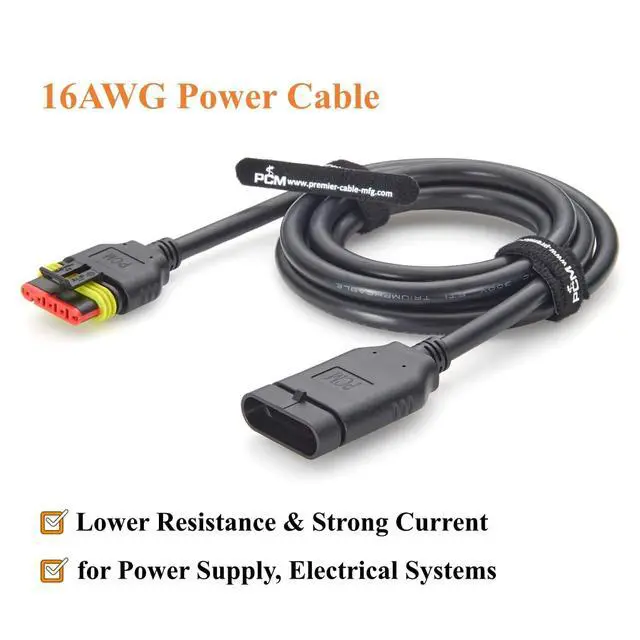

TE AMP Superseal Connector Automotive Waterproof Wire Harness, feature TE AMP Superseal 1.5 Series 5 Pin male connector on one end (282107-1) and 5 Pin female connector on the other end (282089-1), providing reliable mating performance, secure connection.; 16AWG Power Cable Assembly 5 Pin TE AMP Superseal 1.5 Series Cable Assembly, constructed with UL2464 16AWG wire, offering lower resistance and strong current carrying capability for power supply connections, electrical systems, and equipment wiring. The durable PVC jacket provides excellent flexibility, abrasion resistance, and oil resistance.; Sealed Waterproof Connector AMP Superseal 1.5mm 5 Pin Connector Cable equipped with TE single wire seal and sealed connector structure to help protect against moisture, dust, and harsh environments, ensuring stable performance.; Durable PVC Overmold The Auto Electrical Connector ends are overmolded with PVC material to improve mechanical strength, provide strain relief, and protect the wire connection points from bending, pulling, and abrasion.; Wide Applications TE AMP 5 Pin Male to Female Auto Wire, Ideal for automotive wiring harnesses, automotive sensor, Automotive Lighting Systems, Oil Pressure Sensor Wiring, Ignition and Engine sensors Control Systems, ECU, vehicle electrical, LED work lights, marine, motorcycles, trucks, ATV/UTV, agricultural equipment, construction machinery, industrial equipment, battery power connections, and other applications requiring a r

Overview

Specs

Reviews

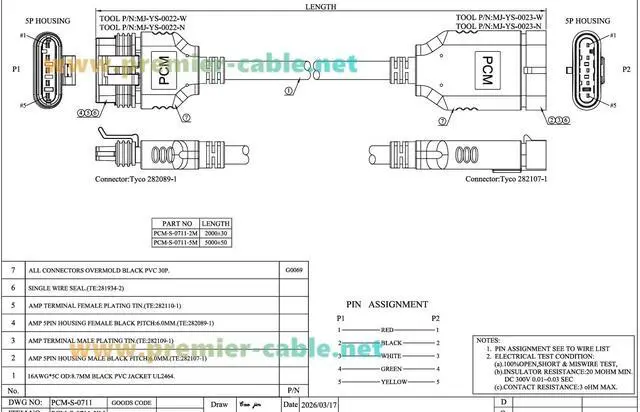

Specification: Product
Name: 5 Pin AMP Superseal Automotive Extension Cable
Part No.: PCM-S-0711
Length: 2m/ 6.6FT

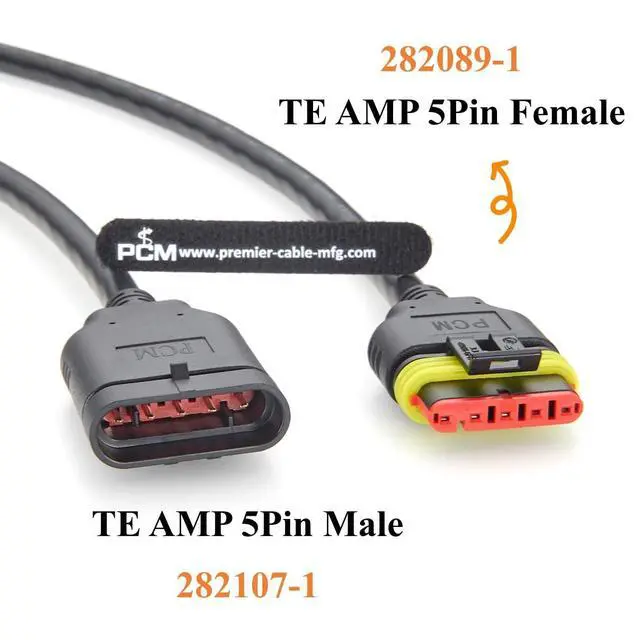

Connector A: TE AMP 5Pin Male Connector, Plating Tin. 282107-1, 282109-1
Connector B: TE AMP 5Pin Female Connector, Plating Tin. 282089-1, 282110-1
Wire Gauge: UL2464 16AWG*5C, PVC
Jacket OD: 8.7MM
Single Wire Seal: TE 281934-2 All Connectors Overmold PVC 30P.

Additional Information
First Listed on Newegg	August 24, 2026
