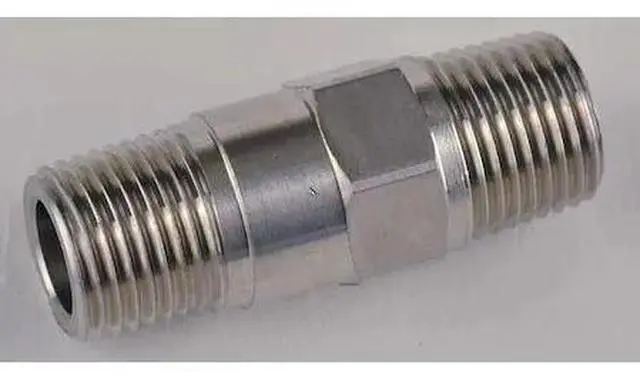

ZORO SELECT CHK SST 210-2M2M-F 1/8" MNPT Stainless Steel Piston Spring Check

Zoro Select 210 Series piston spring check valve is an inline, single-flow valve configured for one-way flow applications with spring-assisted closure. It has a stainless steel body with a piston check mechanism and is rated for use with air and fluids. This 1/8 in valve has male NPT connections on both ends, a 1 psi cracking pressure, and a 1.19 in overall length.

Key Features:

• Inline piston spring check valve for one-way flow control
• Stainless steel body, seat, spring, and check mechanism
• 1/8 in male NPT x male NPT connections
• For media: air, fluids
• Cracking pressure: 1 psi
• Maximum operating pressure: 500 psi
• Operating temperature range: -20 degrees F to 180 degrees F
• Seal material: Viton/FKM
• Mounting orientation: horizontal or vertical
• Cv: 0.2
• Overall length: 1.19 in
• Standards: UL, UR
