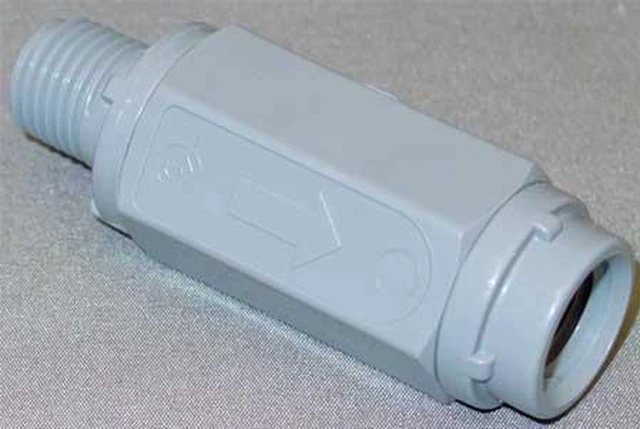

ZORO SELECT PVC CHK 426-4M4F-B 1/4" MNPT x FNPT Gray PVC Ball Cone Spring Check

ZORO SELECT 426 series ball cone spring check valve is an inline valve for one-way flow applications with spring-assisted check mechanism. It features a PVC body, a ball check mechanism, and is constructed with a PVC body and Buna-N seal material. The 1/4 in valve size with MNPT x FNPT threaded connections supports horizontal or vertical installation.

Key Features:

• Valve type: Ball cone spring check valve with inline body design
• Body material: PVC
• Check mechanism: Ball with stainless steel mechanism components
• Connection size: 1/4 in x 1/4 in
• Connection type: MNPT x FNPT, NPT threaded
• Cracking pressure: 1 psi
• Pressure rating: 125 psi maximum operating/water pressure
• Temperature range: -20 degrees F to 140 degrees F
• Seal material: Buna-N
• Seat material: PVC
• Spring material: Hastelloy
• Full flow: Yes
• Mounting orientation: Horizontal or vertical
• Standards: NSF 42
• Overall dimensions: 2.99 in L x 1 in H x 1 in W
