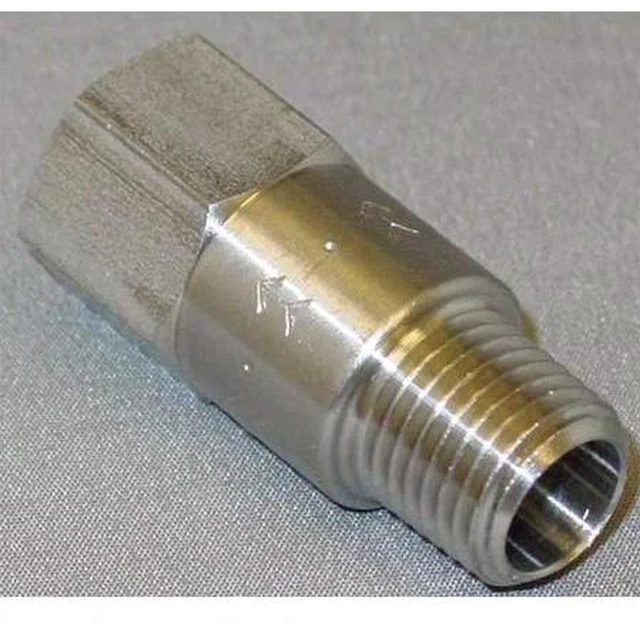

ZORO SELECT CHK SST 410-4M4F-F 1/4" MNPT x FNPT Stainless Steel Piston Spring
- Item #: 9SIV0HAJ612844
- Mfr. Part #: CHK SST 410-4M4F-F
- The brand for this item is ZORO SELECT
- Orders $75 or more ship free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
ZORO SELECT Series 410 check valve is an inline piston spring check valve for compatible air and fluid applications. Its spring-loaded piston check mechanism is intended for one-way flow control and to help reduce backflow when flow slows or reverses. This stainless steel valve has a 1/4 in nominal size with MNPT x FNPT threaded connections, a 1 psi cracking pressure, and a mounting orientation of horizontal or vertical.
Key Features:
- Inline piston spring check valve for one-way flow control
- Body material: Stainless steel
- Check mechanism: Piston
- Mechanism material: Stainless steel
- Connection type: 1/4 in MNPT x FNPT
- Flow design: Single
- Full flow: Yes
- Cracking pressure: 1 psi
- Maximum operating pressure: 500 psi
- Operating temperature range: -20 Degrees F to 180 Degrees F
- Seal material: FKM/Viton
- Seal: TFE, carbon filled
- Seat material: Stainless steel
- Spring material: Stainless steel
- Mounting orientation: Horizontal, Vertical
- Valve body style: Inline
- Type: Piston design
- Standards: UL, UR
