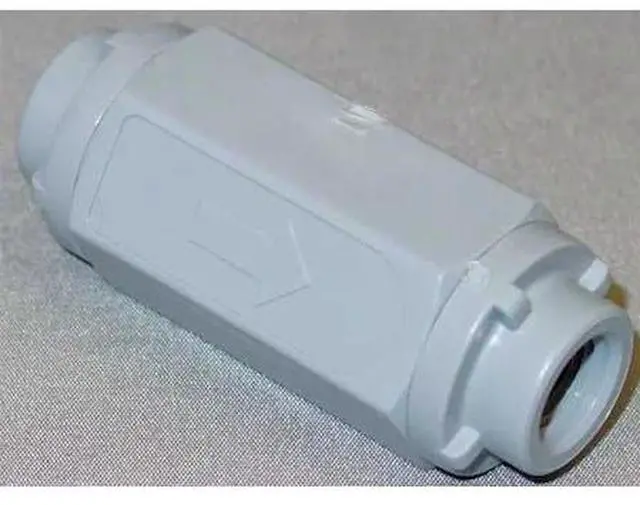

ZORO SELECT PVC CHK 426-2F2F-B 1/8" FNPT Gray PVC Ball Cone Spring Check Valve
- Item #: 9SIV0HAJ612913
- Mfr. Part #: PVC CHK 426-2F2F-B
- The brand for this item is ZORO SELECT
- Orders $75 or more ship free
- This item ships directly from Zoro
+
+
Overview
Specs
Reviews
Zoro Select Series 426 ball cone spring check valve is an inline valve for one-direction flow applications with a ball check mechanism. This model features a PVC body, Buna-N seal, and FNPT x FNPT threaded connections. Service category: chemical service. Mounting orientation: horizontal or vertical.
Key Features:
- Valve type: Ball cone spring check valve with single-flow inline ball cone design
- Body material: PVC
- Check mechanism: Ball; check mechanism material: Stainless steel
- Connection size: 1/8 in x 1/8 in
- Connection type: FNPT x FNPT; connection gender: Female x Female
- Cracking pressure: 1 psi
- Pressure rating: 125 psi maximum operating pressure
- Temperature range: -20 degrees F to 140 degrees F
- Seal material: Buna-N; seat material: PVC
- Full flow: Yes
- Mounting orientation: Horizontal or vertical
- Standards: NSF 42
- Overall length: 2.99 in; overall height: 1 in; width: 1 in
