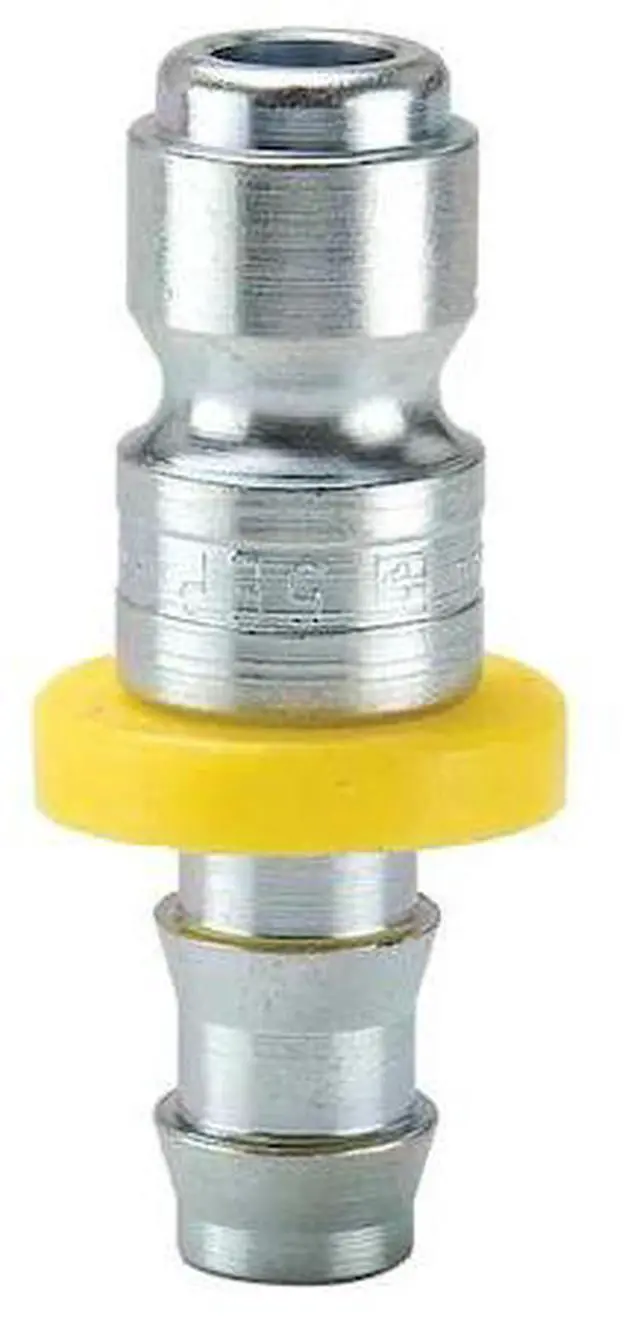

PARKER 5EP Coupler Plug,Steel,Push On,50 cfm

The PARKER - 5EP hose coupling for pneumatic applications provides a push-to-connect locking mechanism for hose attachment and release without hand tools. It is equipped with a push-to-connect locking mechanism and a male hose fitting with a 3/8 in barb size that accepts hoses with a 3/8 in inner diameter. The coupling is constructed from steel with a trivalent chrome finish and is rated for use with Tru-Flate-Automotive interchange applications (per the specified interchange type). Rated for operation at -40°F to 250°F, it is rated maximum working pressure: 300 psi at 70°F, with a rated maximum flow rate: 1,415.84 L/min.

Key Features

• - Application: Pneumatic systems
• - Connection Type: Push Hose Barb
• - Hose Fitting Gender: Male
• - Hose Fitting Size and Barb Size: 3/8 in
• - Coupling Size: 3/8 in
• - Coupling Locking Type: Push-to-Connect
• - Material: Steel with trivalent chrome finish
• - Maximum Working Pressure: 300 psi @ 70°F
• - Maximum Flow Rate: 1,415.84 lpm
• - Operating Temperature Range: -40°F to 250°F
• - Overall length: 2 in
• - Maximum outside diameter: 5/8 in
• - Includes Valve: No
• - Interchange Type: Tru-Flate-Automotive
