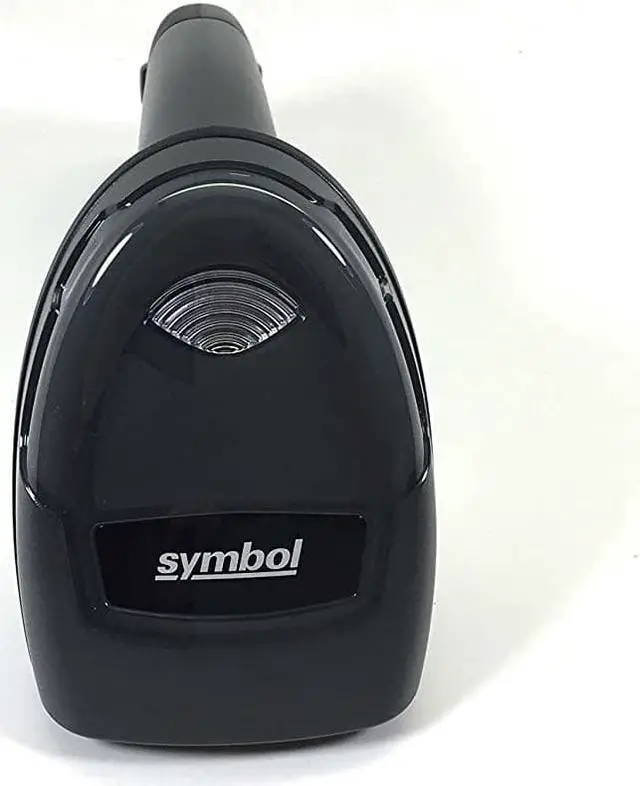

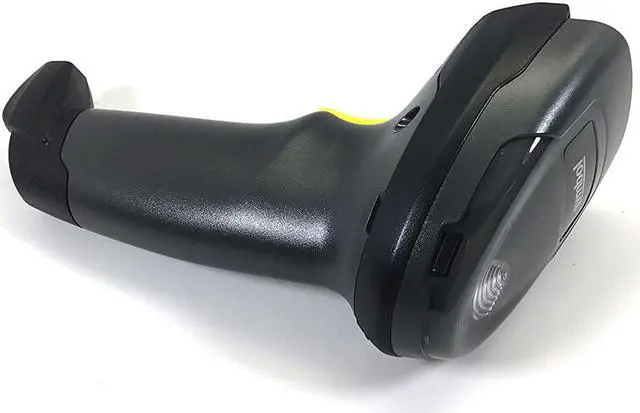

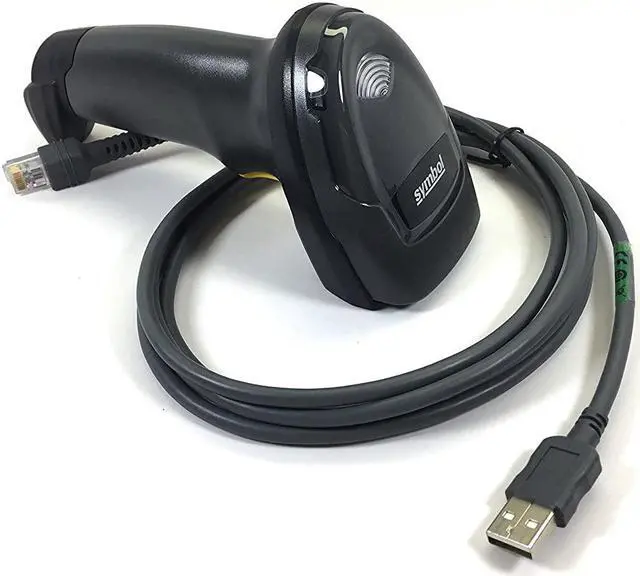

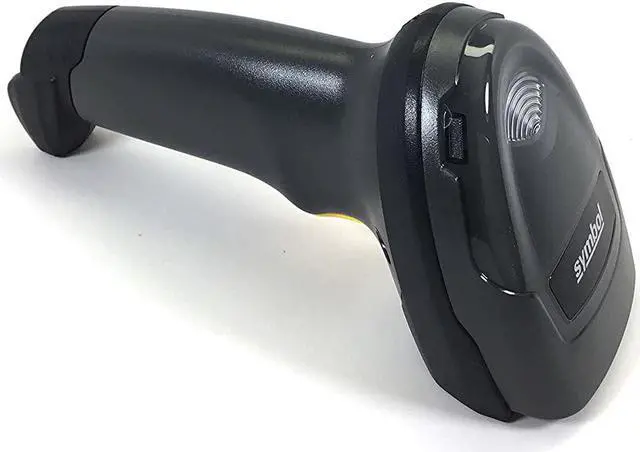

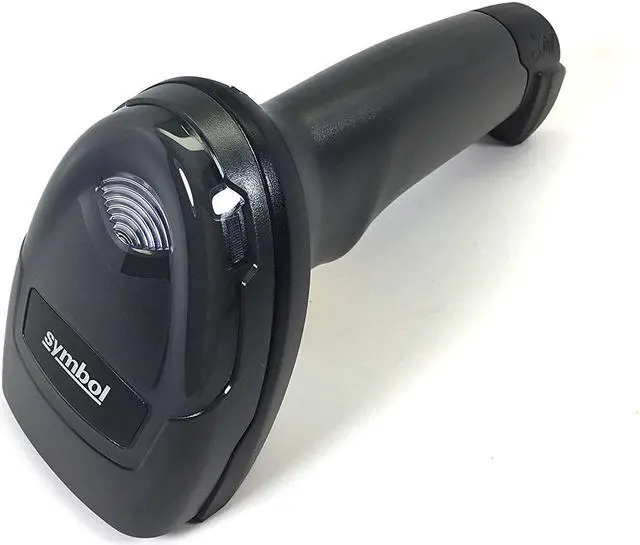

Zebra DS4308-XD (Extreme Density) 1D/2D Handheld Barcode Omni-Directional Scanner/Imager with USB Cable
- Item #: 9SIV88HJY32467
- Mfr. Part #: GB0738WCN7M
- UNSPSC: 43212113
- High resolution optical lens for superior scanning of tiny dense codes------Reads very high density codes faster and closer — including codes that are a half inch or less at near contact.
- Scan any barcode on any medium------Scan 1D, 2D and PDF417 barcodes printed on plastic and metal electronic subcomponents such as PCB boards, memory chips and more. Also captures direct marks printed on non- reflective surfaces, plus barcodes in virtually any condition printed on paper labels.
- Omni-directional scanning------Enables true point-and-shoot scanning simplicity by eliminating the need to align barcode and scanner.
- Unsurpassed aiming technology------Crisp and bright aiming dot has the reach and brightness needed for near field scanning, as well as picklist mode.
- Durable design for superior uptime------Built to survive a 6 ft./1.83 m drop to concrete, the DS4308-XD delivers reliable operation, despite the inevitable everyday drops.
+
+
Overview
Specs
Reviews
Loaded with advanced scanning technology, the DS4308-XD has what it takes to capture 1D and 2D barcodes and direct marks printed on non-reflective surfaces. Want to reduce your cycle times, improve product quality and enable cost-effective compliance with the track-and-trace requirements in your industry. You can do it all with the Zebra DS4308-XD.
Not only does the DS4308-XD scan all the barcodes on your production line, it’s designed for the production line environment. You get a durable design that ensures reliable operation, despite the inevitable drops to the concrete floor. Flexible feedback modes ensure users know instantly when a scan is successful, even on the noisy production line — choose from haptic feedback (vibration) or the adjustable beeper volume and frequency tone. Unsurpassed aiming technology offers a crisp and bright aiming dot for first-time every time accurate aim.
Specifications:
Brand:
Zebra
Model:
DS4308-XD
Color:
Twilight Black
Supported Host Interfaces:
USB, RS232, Keyboard Wedge, TGCS(IBM)
User Indicators: Green LED on good decode; pager motor (for haptic feedback)
Operating Temp:
32F to 122F / 0C to 50C
Humidity:
5% to 95%, non-condensing
Drop Spec:
Withstands multiple 6 ft./1.83 m drops to concrete
Sealing:
IP42
Skew/Pitch/Roll:
60/65/360
Decode Capability:
1D (Code 39, Code 128, Code 93, UPC/EAN,GS1 DataBar) and 2D (PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, QR Code, Micro QR, Postal Codes)
Dimensions:
6.5 in. H x 3.9 in. W x 2.6 in. D 16.5 cm H x 9.8 cm W x 6.7 cm D
Weight:
5.71 oz./161.9 g
Package Includes:
One Barcode Scanner
One USB Cable
One manual
Not only does the DS4308-XD scan all the barcodes on your production line, it’s designed for the production line environment. You get a durable design that ensures reliable operation, despite the inevitable drops to the concrete floor. Flexible feedback modes ensure users know instantly when a scan is successful, even on the noisy production line — choose from haptic feedback (vibration) or the adjustable beeper volume and frequency tone. Unsurpassed aiming technology offers a crisp and bright aiming dot for first-time every time accurate aim.
Specifications:
Brand:
Zebra
Model:
DS4308-XD
Color:
Twilight Black
Supported Host Interfaces:
USB, RS232, Keyboard Wedge, TGCS(IBM)
User Indicators: Green LED on good decode; pager motor (for haptic feedback)
Operating Temp:
32F to 122F / 0C to 50C
Humidity:
5% to 95%, non-condensing
Drop Spec:
Withstands multiple 6 ft./1.83 m drops to concrete
Sealing:
IP42
Skew/Pitch/Roll:
60/65/360
Decode Capability:
1D (Code 39, Code 128, Code 93, UPC/EAN,GS1 DataBar) and 2D (PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, QR Code, Micro QR, Postal Codes)
Dimensions:
6.5 in. H x 3.9 in. W x 2.6 in. D 16.5 cm H x 9.8 cm W x 6.7 cm D
Weight:
5.71 oz./161.9 g
Package Includes:
One Barcode Scanner
One USB Cable
One manual
