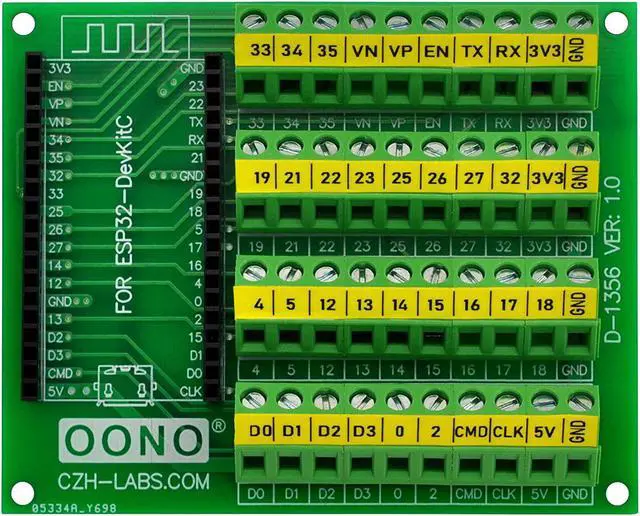

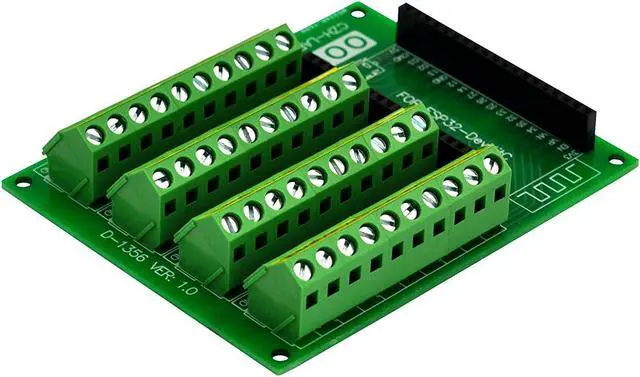

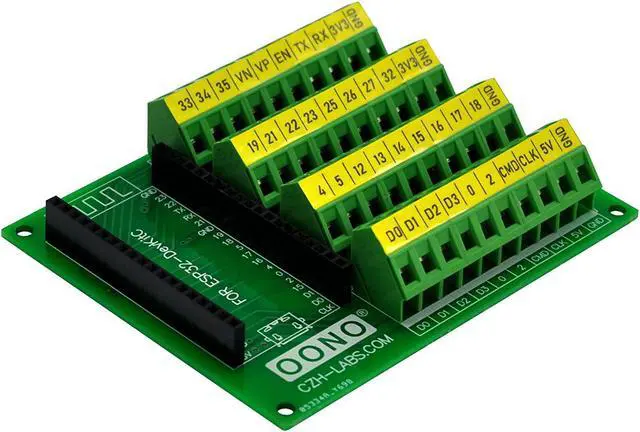

Screw Terminal Block Breakout Module Board for ESP32-DevKitC
- Item #: 9SIVB0EHC07019
- Mfr. Part #: B1VA968D65FW
- With the breakout board, you can easily extend ESP32-DevKitC projects to industrial control applications.
- PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square.
- FR-4 fiber glass PCB, dual copper layers.

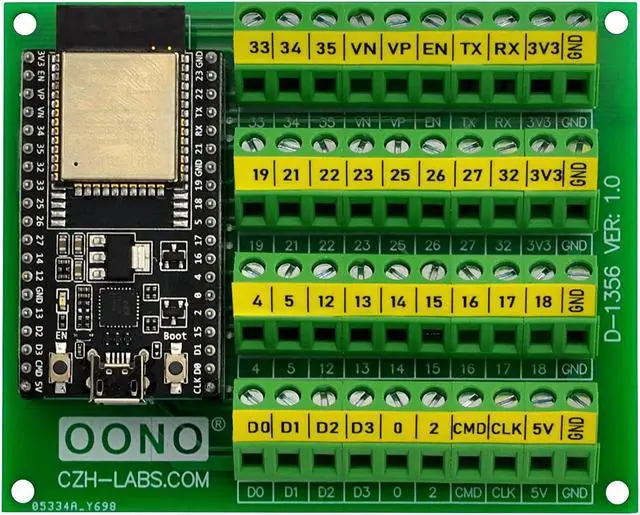

- Note: the item not include ESP32-DevKitC board. The breakour board supports ESPRESSIF official ESP32-DevKitC, but we do not guarantee whether to support third-party modules, you can check the ESPRESSIF official website for more information before buying.
+
+
