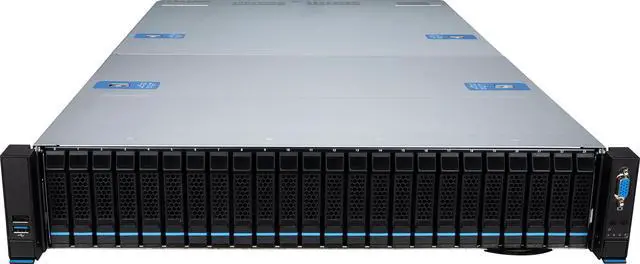

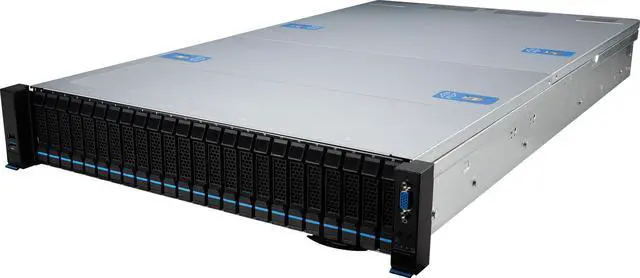

MSI Intel Whitley Platform 2U Intel C621A Ice Lake SP Barebone

CPU: 2 x Intel® Xeon® Processor Scalable Family (Socket P+ 4189pin), Ice Lake-SP, 3x UPI, (*depend on system configuration; CPU not included)
Memory: 32 x DDR4 2400/2666/2933/3200 Mhz, RDIMM/LRDIMM/BPS, w/ ECC 8 x channel memory bus / processor (Mem not included)
Drive Bays: a.12x Hot-swap 2.5 6Gb/s HDDs (SATA/SAS/NVMe) ; *1 x micro-SD (internal)
Raid: PCH SATA 6Gb/s RSTe: RAID 0, 1, 5,10, Avago MegaSR: RAID0,1,10,5 Intel® VROC7.0 uses Intel® VMD2.0
Ethernet: 1 x GbE RJ45 (Intel I210AT, NCSI supported); 1 x GbE RJ45 Mgmt. (Realtek RTL8211E-VB-C PHY); 1 x OCP3.0 Mezz
Expansion Slots: 3x LP (G3)

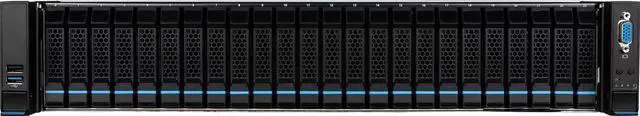

Front I/O: 1x Power On/Off Button; 1x UID Button; 2x USB3.0 (1x USB3.0/2.0, 1x USB2.0)
Indicators: 1x PWR_SW-LED, 1x UID_SW-LED; 1x Global ALM, 2x NIC, 1x HDD Act.

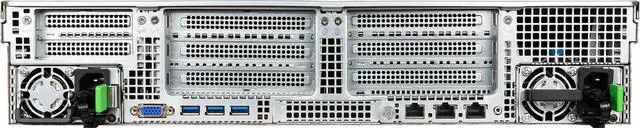

Rear I/O: 3 x USB3.0 Ports; 2 x GbE RJ45 (1x Mgmt., 1x NCSI);1 x VGA Port, 1x Serial COM RJ45, 1 x UID LED button (w/ BMC reset function)
Cooling: 2x CPU H/S; 6x 4056 non hot-swap fan
PSU: CRPS 550W/800W module

Overview

Specs

Reviews

OS
CentOS Linux 7. x x86_64
Red Hat Enterprise Linux server 7. x x86_64
Windows Server 2012 R2 x64
Windows Server 2016

CPU Supported
CPU Type	Intel Xeon

Additional Information
First Listed on Newegg	August 04, 2023
