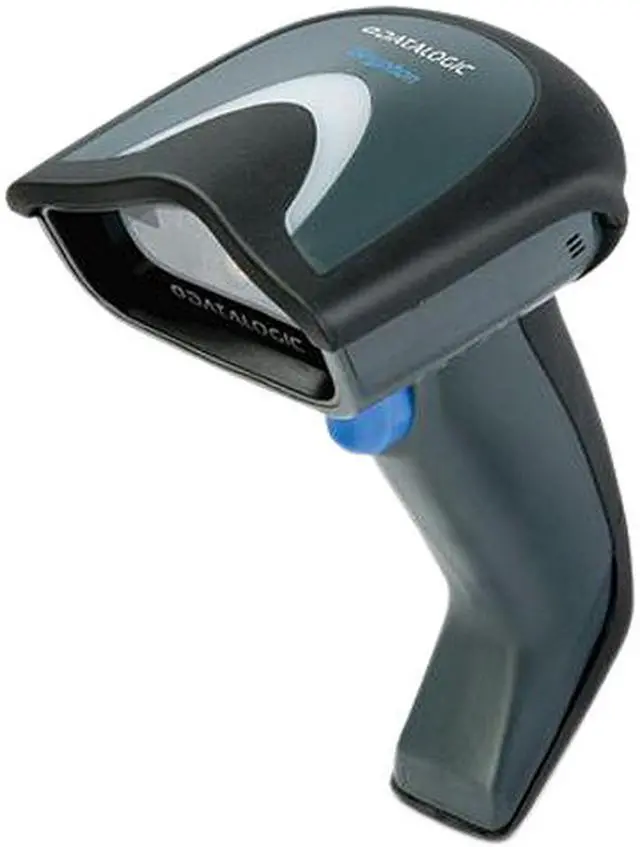

Datalogic Gryphon GM4102 General Duty Handheld Cordless Linear Imager w/ Datalogic's STAR Cordless System, 910MHz, USB, RS-232, KBW, Wand Emulation, Black, Scanner Only - GM4102-BK-910

Fastest speed-to-read: 325 reads/second
Radio frequency: 910 MHz
Radio Range (open air) up to 15.0 m / 49.2 ft for 910 MHz
Point-to-point and multi-point transmission
Datalogic’s patented 2-position cradle with Scan-While-Charging capability (Cradle SOLD SEPARATELY)
Batch Mode capability (>1200 codes stored in memory)
Drop resistance to 1.8 m / 5.9 ft
Datalogic’s patented ‘Green Spot’ technology for good-read feedback
Long lasting user-replaceable Lithium-Ion battery

Specs

Reviews

Connectivity
Interfaces Supported	USB, RS-232, Keyboard Wedge
Cordless Type	Radio / STAR Cordless System

Scan Performance
Light Source	LED Array 630 - 670 nm
Resolution	3 mils
Depth of Scan Field	Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. 5 mils: 6.0 to 18.0 cm / 2.3 to 7.00" 7.5 mils: 3.5 to 30.0 cm / 1.4 to 11.70" 10 mils: 2.0 to 45.0 cm / 0.8 to 17.70" 13 mils: 3.0 to 60.0 cm / 1.2 to 23.40" 20 mils: 3.0 to 80.0 cm / 1.2 to 31.20"
Pitch	±65 degree
Roll	±35 degree
Yaw	±65 degree
Scan Speed	325 reads/sec.
Decoding Capability	1D / LINEAR CODES: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes. POSTAL CODES :China Post STACKED CODES: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional

Electrical
Battery	Battery Type: Lithium-Ion, 2550 mAh Charge Time: External Power: 4.5 Hours @ 12 VDC
Input Voltage	4.75 - 14 VDC
Current	Charging (Typical): < 8 Watts; Operating (Typical): < 2.5 Watts @ 5 VDC; Standby/Idle (Typical): < 2.5 mA @ 5 VDC

Additional Information
First Listed on Newegg	October 31, 2024

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
