5Male+5Female DB25 Male to RJ45 Ethernet LAN Extend Modular Converter | 25 Pin Serial Port Male to RJ45, Plug and Play Design, No Need for Welding
- Item #: 9SIVV5XM8X1969

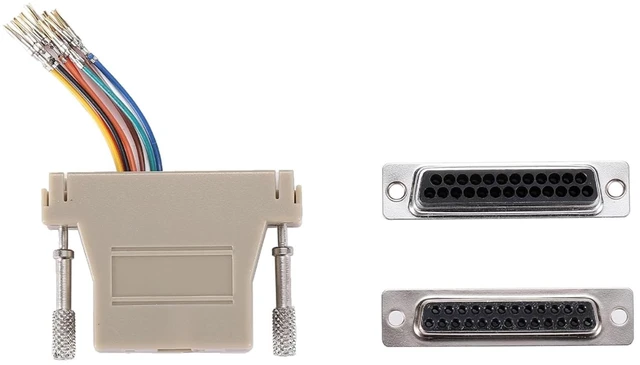

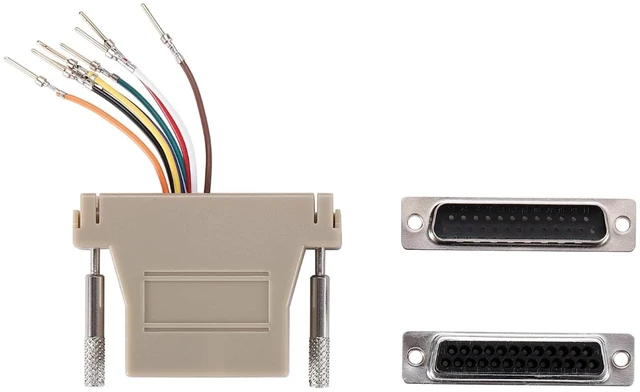

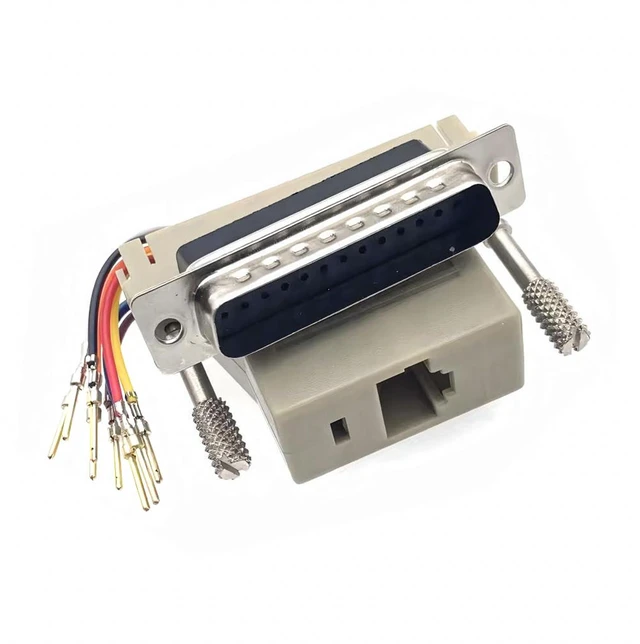

- DB25 to RJ45 modular adapter can convert DB25 to RJ45 sockets (female), allowing you to establish a connection between devices with different interfaces.
- Easy to Use: Plug and play design for a straightforward setup without the need for driver.
- RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, 8-White.
- Send); 5. CTS(Clear to Send); 6.DSR(Data Set Ready); 7.GND(System Ground); 8.DCD(Data Carrier Detect); 9.RESERVED; 10.RESERVED; 11.STF(Select Transmit Channel); 12.SCD(Secondary Carrier Detect); 13.SCTS(Secondary Clear to Send); 14.STXD(Secondary Transmit Data); 15.TCK(Transmission Signal Element Timing); 16.SRXD(Secondary Receive Data); 17.RCK(Receiver Signal Element Timing); 18.LL(Local Loop Control; 19.SRTC(Secondary Request to Send); 20.DTR(Data Terminal Ready); 21.RL(Remote Loop Control); 22.RI(Ring Indicator); 23.DSR(Data Signal Rate Selector); 24.XCK; 25.TI.

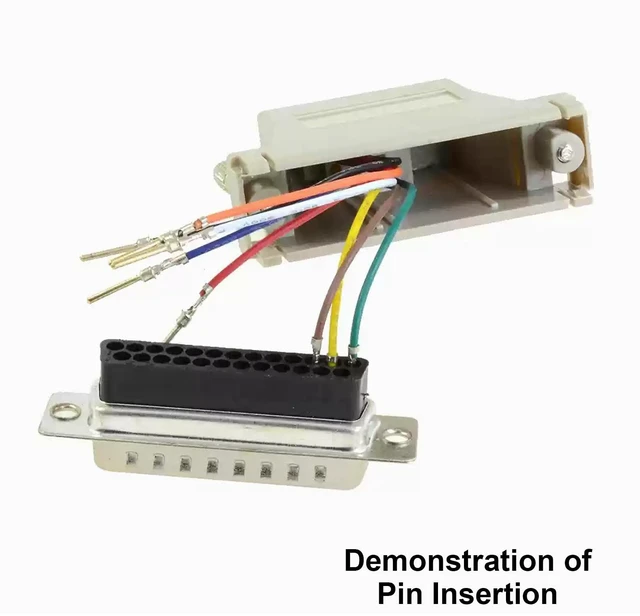

- Widely Application: You can customize the configuration pins to meet your needs. The lead wire is a "flying wire" that provides you with more flexibility when inserting pins. This connector is often used in scenarios where legacy serial devices need to be connected to a network infrastructure using Ethernet technologies.
+
+
Overview
Specs
Reviews
Specifications:

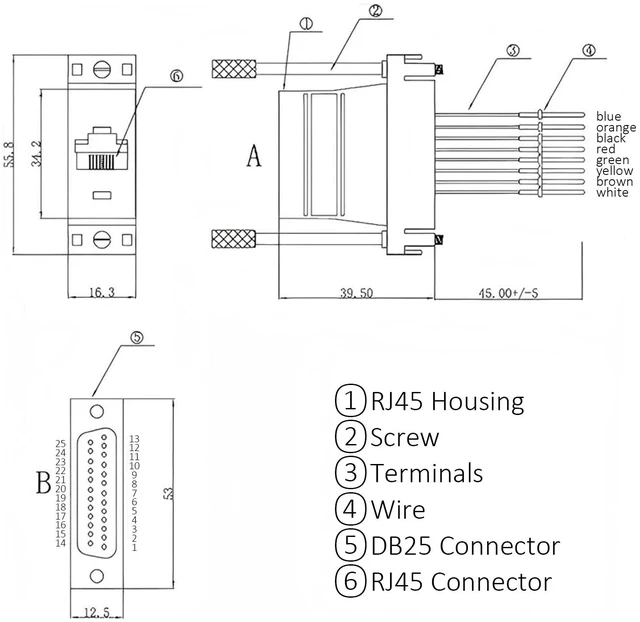

Product name: DB25 to RJ45 female module
Shell material: ABS
Wire: 1007 # 26 tinned copper wire
RJ45 pin outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Brown, and 8-White

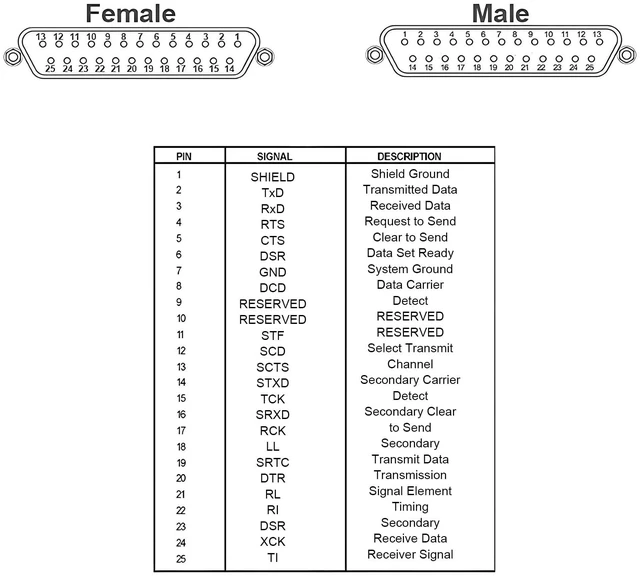

DB25 pin definition: 1.SHIELD(Shield Ground); 2.TxD(Transmitted Data); 3.RxD(Received Data); 4. RTS(Request to Send); 5. CTS(Clear to Send); 6.DSR(Data Set Ready); 7.GND(System Ground); 8.DCD(Data Carrier Detect); 9.RESERVED; 10.RESERVED; 11.STF(Select Transmit Channel); 12.SCD(Secondary Carrier Detect); 13.SCTS(Secondary Clear to Send); 14.STXD(Secondary Transmit Data); 15.TCK(Transmission Signal Element Timing); 16.SRXD(Secondary Receive Data); 17.RCK(Receiver Signal Element Timing); 18.LL(Local Loop Control; 19.SRTC(Secondary Request to Send); 20.DTR(Data Terminal Ready); 21.RL(Remote Loop Control); 22.RI(Ring Indicator); 23.DSR(Data Signal Rate Selector); 24.XCK(Transmit Signal Element Timing); 25.TI(Test Indicator)
Package includes:

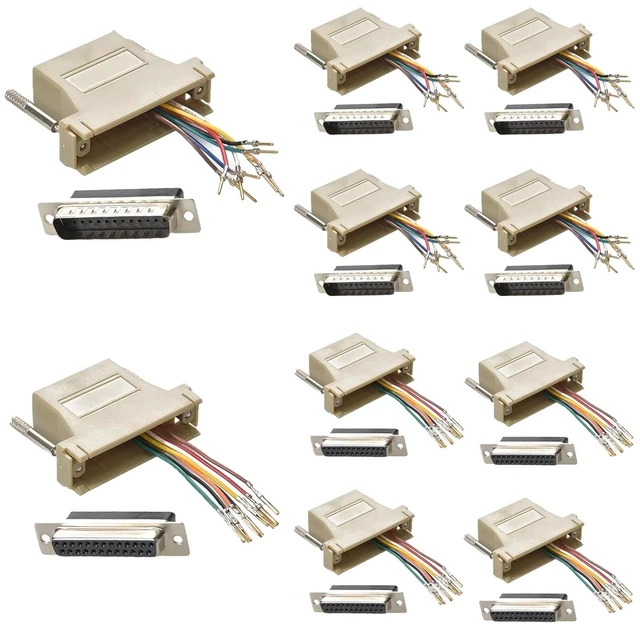

5 x DB25 Male to RJ45 Modular Adapter 5 x DB25 Female to RJ45 Modular Adapter
