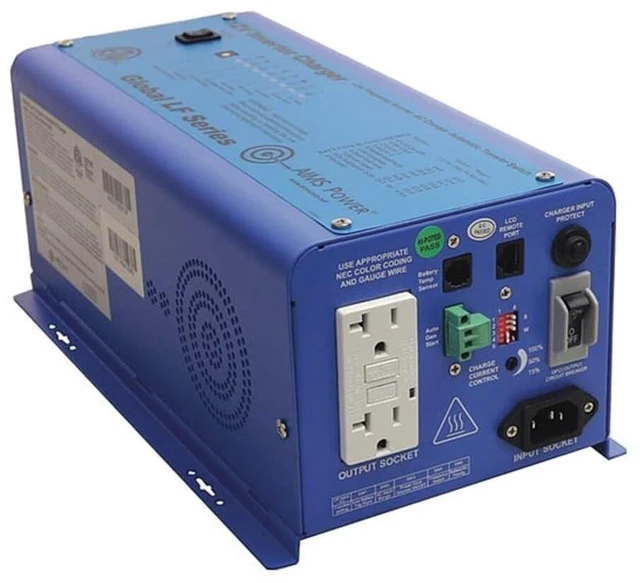

AIMS 600W 12V Pure Sine Inverter Charger w/Transfer Switch 120V ETL
- Item #: 9SIVUF8M652192
- Mfr. Part #: 617327082635
- UNSPSC: 39121006
- 3-in-1 Power Conversion System: Combines a pure sine inverter 5A, 600 Watt, 20A smart battery charger, and automatic transfer switch into a single integrated unit for simplified system design.
- High Surge Capability for Demanding Loads: Delivers 1800W surge (3x of continuous output) for up to 20 seconds, supporting motor driven tools and equipment during startup.
- Wide Battery Compatibility Charging: Four stage smart charger supports GEL, Lead Acid, AGM, and Lithium batteries with selectable charging profiles and adjustable current.
- Advanced Power Management Modes: Selectable AC priority or battery priority operation allows the system to automatically manage power between utility and battery power.
- 30 Years of Power Engineering: Put serious technical experience into your setup. Count on an established brand that stands firmly behind its products.
+
+
Overview
Specs
Reviews
AIMS Power PICOGLF6W12V120VETL Pure Sine Inverter Charger, 600W Low Frequency Inverter, 1800W Surge, 12V, AC Input Cable, GFCI Outlet, Auto Frequency Detect From AC Input, 7 Battery Type SettingsThis 600 watt pure sine inverter charger ETL listed and conforms to UL 458 standards, is a combination of an inverter, battery charger and AC auto-transfer switch into one complete system with a peak DC and AC conversion efficiency of 80%. It is packed with unique features and it is one of the most advanced inverter chargers in the market today.
It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment. Key Features 600 watt low frequency inverter - ETL listed to UL 458 standards 1800 watt surge for 20 seconds 300% surge capability AC Input Cable; GFCI outlet; Conformal Coated for Marine Applications Multi Stage Smart Charger 20 Amp Auto Frequency Detect From AC Input Less than 10msec Typical Transfer Time selectable 25W power save mode (hibernation) 7 Battery Type Settings for ChargerSpecifications Continuous
Output Power: 600
Watts Surge Rating: 1800 Watts (20 Seconds)
Output Waveform: Pure Sine/Same as input (Bypass Mode)
Output Voltage: 120Vac
Nominal Efficiency: 80% (Peak)
Output Frequency: 50Hz 0.3H z / 60Hz 0.3H z
Typical Transfer Time: 10ms (Max) Nominal
Input Voltage: 12.0V dc Low
Battery Alarm: 10.5V dc- 11.0V dc High
Voltage Alarm: 16.0V dc Low
Battery Voltage Restart: 15.5V dc Four Stage Smart Charger Max input
AC voltage: 150
Weight: 18 lbs
Size (LxWxH): 14.7" x 7" x 5.5"
It features power factor corrected, sophisticated multi-stage charging and pure sine wave output with unprecedentedly high surge capability to meet demanding power needs of inductive loads without endangering the equipment. Key Features 600 watt low frequency inverter - ETL listed to UL 458 standards 1800 watt surge for 20 seconds 300% surge capability AC Input Cable; GFCI outlet; Conformal Coated for Marine Applications Multi Stage Smart Charger 20 Amp Auto Frequency Detect From AC Input Less than 10msec Typical Transfer Time selectable 25W power save mode (hibernation) 7 Battery Type Settings for ChargerSpecifications Continuous
Output Power: 600
Watts Surge Rating: 1800 Watts (20 Seconds)
Output Waveform: Pure Sine/Same as input (Bypass Mode)
Output Voltage: 120Vac
Nominal Efficiency: 80% (Peak)
Output Frequency: 50Hz 0.3H z / 60Hz 0.3H z
Typical Transfer Time: 10ms (Max) Nominal
Input Voltage: 12.0V dc Low
Battery Alarm: 10.5V dc- 11.0V dc High
Voltage Alarm: 16.0V dc Low
Battery Voltage Restart: 15.5V dc Four Stage Smart Charger Max input
AC voltage: 150
Weight: 18 lbs
Size (LxWxH): 14.7" x 7" x 5.5"
