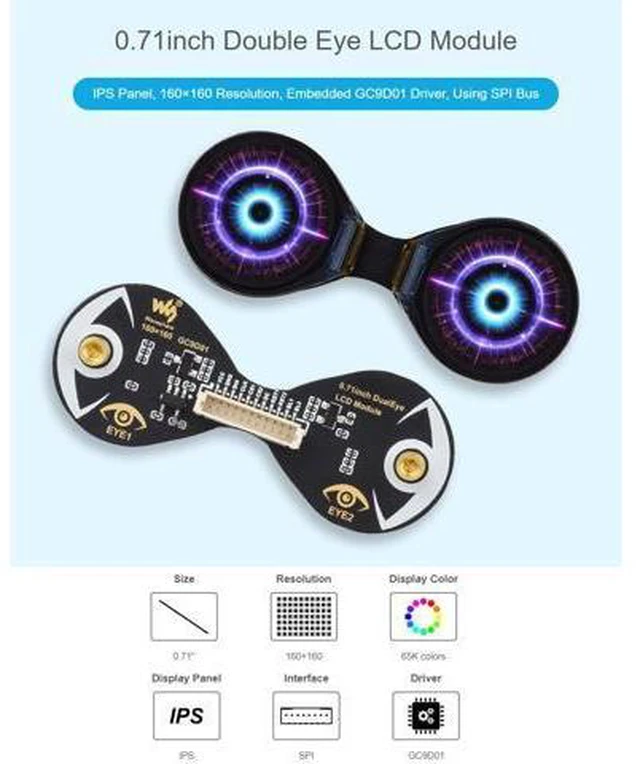

waveshare 0.71inch Double Eye Round LCD Display Module 160×160 Resolution 65K Colors IPS Display Supports Controller Boards Like ESP32 / Arduino, Embedded GC9D01 Driver
- Item #: 9SIVSMNM3P0660
- Mfr. Part #: OYSC5KU-8.5-2IN1-181

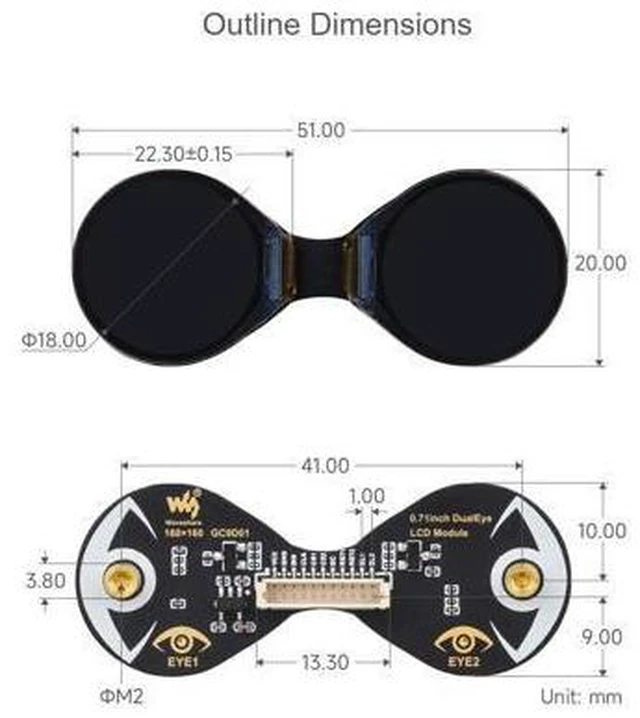

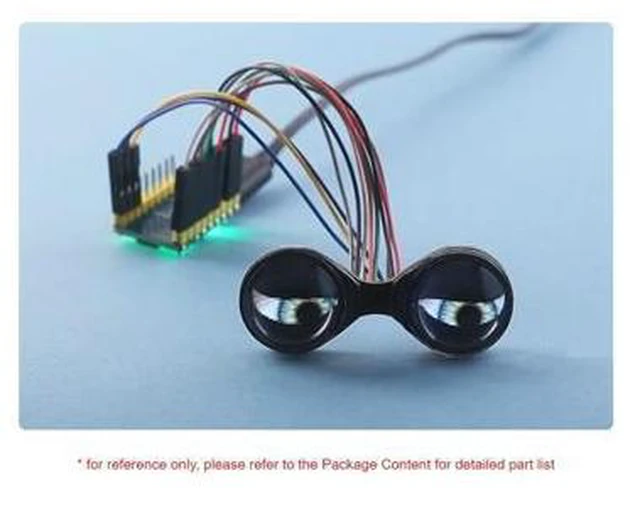

- Overview Introduction The 0.71 inch binocular LCD module features two 0.71 inch round IPS screens with 160 x 160 pixels, equipped with a GC9D01 driver chip, and utilizes SPI interface communication. It is suitable for integration into controllers such as ESP32, Raspberry Pi Pico, Arduino, etc., and can be used in creative applications like simulated electronic eyes or wearable devices. Specifications OPERATING VOLTAGE 3.3V / 5V COMMUNICATION INTERFACESPI DISPLAY PANELIPS DRIVERGC9D01 RESOLUTION160 × 160 pixels DISPLAY SIZE18 × 18 (mm) PIXEL PITCH 37.5 × 112.5 (m) DIMENSIONS 20.00 × 51.00 (mm) LCD and its Controller This LCD uses the built-in GC9D01 driver, with a resolution of 160×160. It has an internal GRAM and supports 12/16/18-bit data bus MCU interfaces, i. e., RGB444, RGB565, RGB666 three color formats, which are common RGB formats. For most LCD controllers, the communication interface can be configured, including 8080 parallel, 3-wire SPI, 4-wire SPI, etc. This LCD uses a 4-wire SPI interface, which saves GPIO pins and increases communication speed. Some of you might wonder : since the screen is circular, which point is the first pixel? How do we determine the coordinates? Actually, you can think of it as a square screen with an inscribed circle inside. We only display content within this inscribed circle, and pixels outside the circle are discarded. Most circular LCDs on the market work this way. Package Content 0.71 inch DualEye LCD Module x1 SH 1.0 11PIN cable x1 Co
+
+
Overview
Specs
Reviews

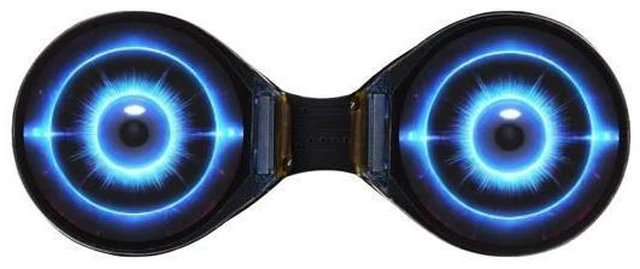

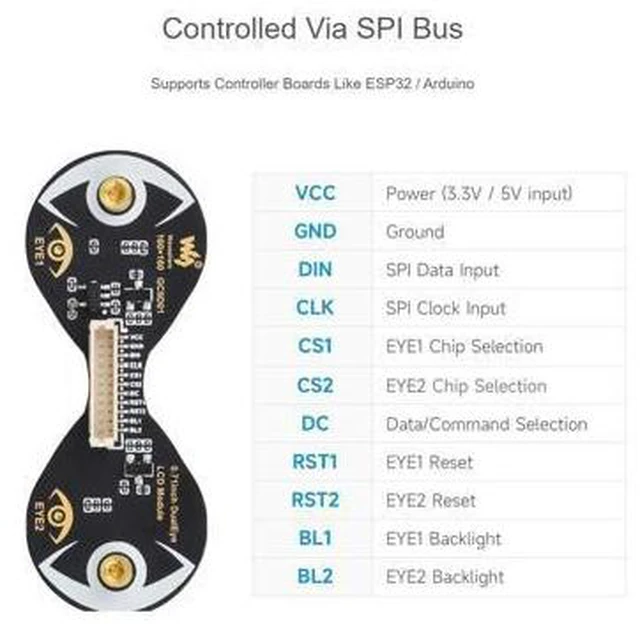

The double eye LCD module consists of two 0.71 inch round LCD displays, IPS panel, wide viewing angle; IPS Panel, Embedded GC9D01 Driver, Using SPI Bus; 160×160 resolution, 65K colors, clear and colorful displaying effect; SPI interface, minimizes required IO pins, supports controller boards like ESP32 / Arduino; Controlled Via SPI Bus. Supports Controller Boards Like ESP32 / Arduino
