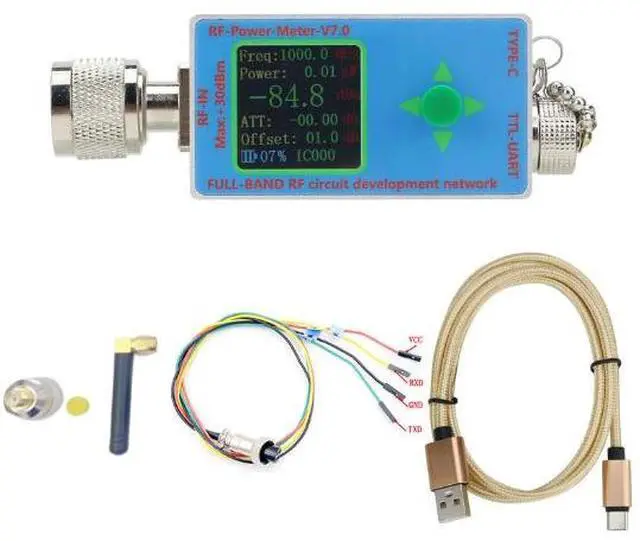

N-type RF power meter V7 10GHz TYPE-C communication data export power detector serial port communication V7.0 RF power meter main unit + Type-C data cable + SMA

The RF-Power-Meter-V7.0 series is a high-performance, low-cost, portable TYPE-C simple RF power meter. It provides 5V power supply and enables high-speed data communication via TYPE-C. It is simple to use, compact in size, convenient to carry, stable in performance, highly accurate, capable of presetting bias values, has a wide dynamic range, and offers fast measurement speed. The software that comes with this power meter enables users to configure the power meter on a PC and makes data recording and sharing simple.
Advantages of RF-Power-Meter-V7.0:
Supports multiple high-speed dynamic data acquisition, with a maximum rate of 500 kbps (2 microseconds) when the upper computer is conducting the acquisition.
2. Supports the highest 10GHz RF signal acquisition function;
3. Built-in digital programmable attenuator (0 - 31.75 dB). When combined with the digital attenuator, the maximum input power that can be measured is 30 dBm (1W), and the dynamic range is from +30 dBm to -60 dBm.
4. The power meter V7.0 is equipped with a 1.3-inch TFT LCD and an internal Li battery, and it can operate independently.
5. The 4-pin aviation connector is used to provide the TTL serial port read and write function, offering both single-shot and continuous data reading modes.
6. The upper computer has two MARK cursor functions, which facilitate the measurement of the modulation pulse width; it can automatically calculate the maximum and minimum values; the maximum storage depth is 500 points; i
