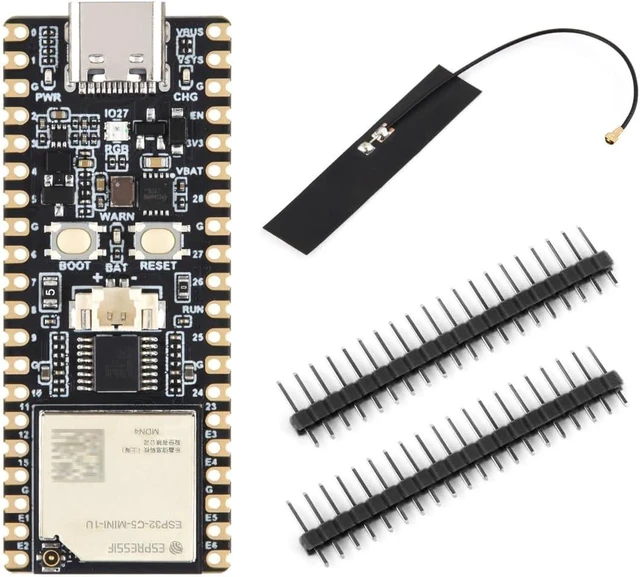

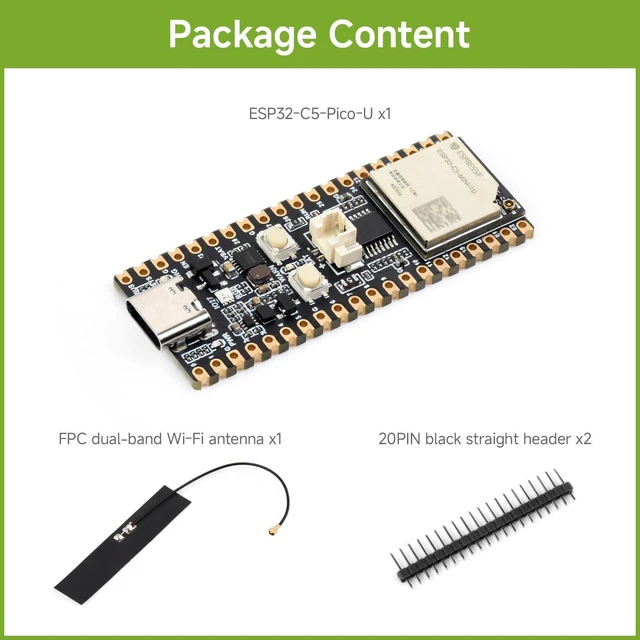

Waveshare ESP32-C5 Dual-Band Wi-Fi6 Dev Board, External FPC Antenna | Onboard 4MB Flash, external FPC dual-band Wi-Fi antenna, without pinheader, 240MHz single-core processor

Adopts ESP32-C5-MINI-1 series module with RISC-V 32-bit single-core processor, up to 240MHz main frequency. Integrated 320KB ROM, 384KB H-P Static RAM, 16KB LP Static RAM and 4MB Flash
Integrated 2.4GHz and 5GHz dual-band Wi-Fi 6, Bluetooth 5 (LE) and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance. Onboard USB Type-C port, easier to use, supporting convenient power supply and development debugging
Onboard MP1605GTF-Z high-efficiency DC-DC buck-boost chip with a load current of up to 2A. Onboard ETA6098 power management circuit, supporting Lithium Batt power supply, charging status indication, and Batt voltage monitoring. Adapting multiple GPIO pins and expanding 6 × IO pins via TCA9554 for connecting more peripherals
Rich peripheral interfaces including USB, UART, I2C, SPI, ADC, PWM and more for flexible function expansion. Castellated module allows soldering directly to carrier boards.
Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios. Supports most of the Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development
