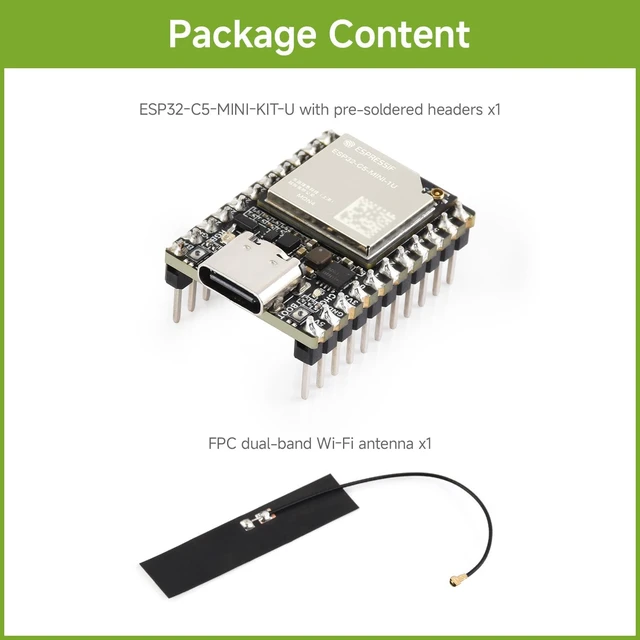

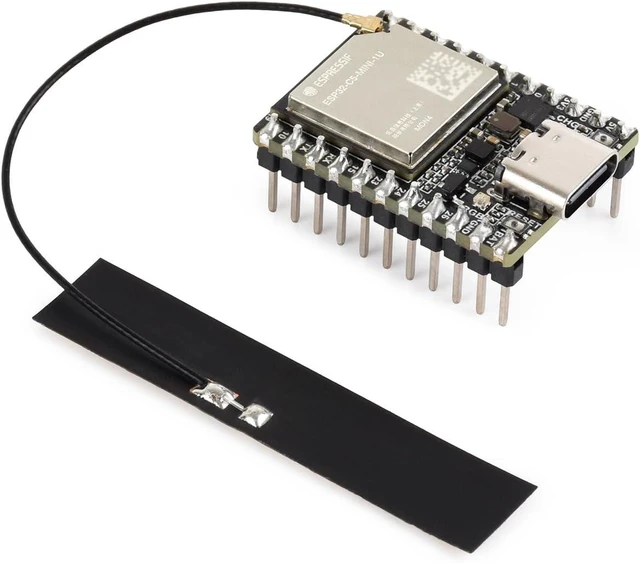

Waveshare ESP32-C5 Mini Wi-Fi 6 Dev Board, FPC Antenna & Pre-soldered Pins | Onboard 4MB Flash, external FPC dual-band Wi-Fi antenna, with black pre-soldered headers, 240MHz single-core

Adopts ESP32-C5-MINI-1 series module with RISC-V 32-bit single-core processor, up to 240MHz main frequency. Integrated 320KB ROM, 384KB H-P Static RAM, 16KB LP Static RAM and 4MB Flash
Integrated 2.4GHz and 5GHz dual-band Wi-Fi 6, Bluetooth 5 (LE) and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance. Onboard USB Type-C port, easier to use, supporting convenient power supply and development debugging
Onboard MP1605GTF-Z high-efficiency DC-DC buck-boost chip with a load current of up to 2A. Onboard ETA6098 power management circuit, supporting Lithium Batt power supply, charging status indication, and Batt voltage monitoring
Rich peripheral interfaces including USB, UART, I2C, SPI, ADC, PWM and more for flexible function expansion. Castellated module allows soldering directly to carrier boards
Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
