Waveshare 4.2inch E-Paper Module, 400x300 Resolution Red/Black/White 3Colors Display Module for Raspberry Pi/Jetson Nano/Nucleo Main Control Board
- Item #: 9SIVAMDM9A4729
- Mfr. Part #: 69044406005
- With advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
+
+
Overview
Specs
Reviews

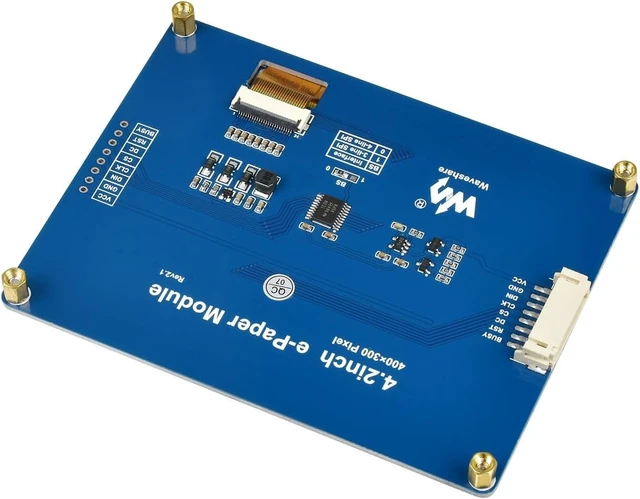

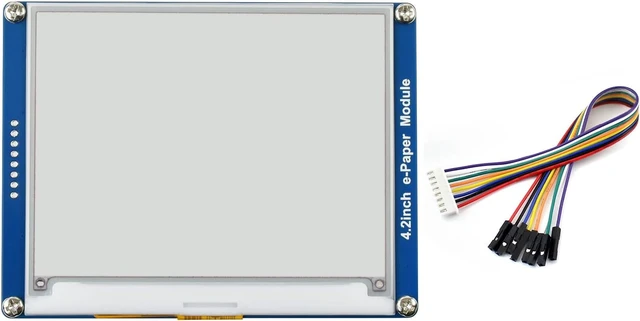

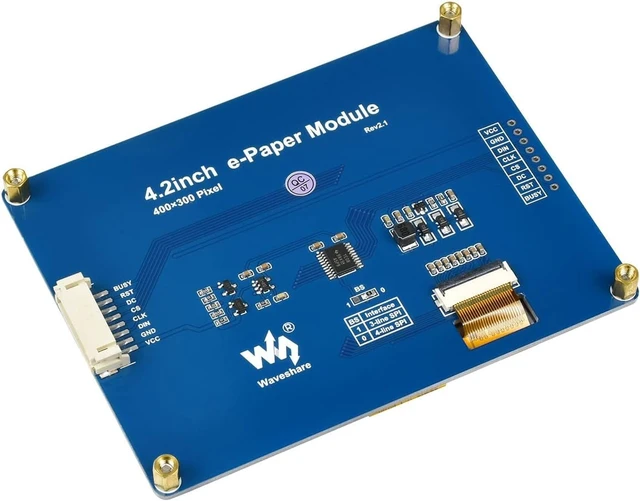

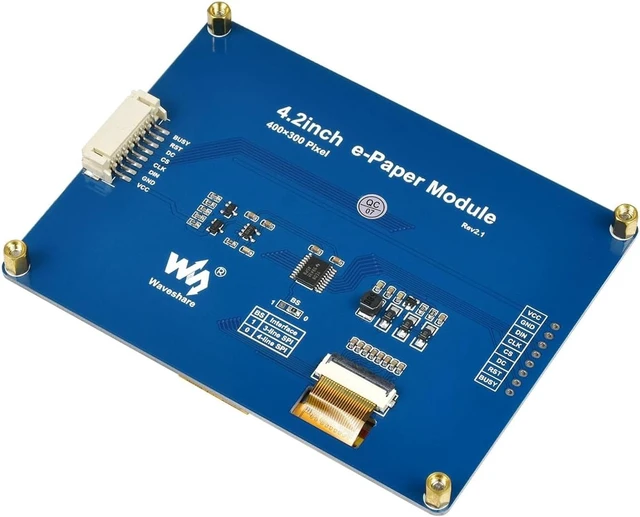

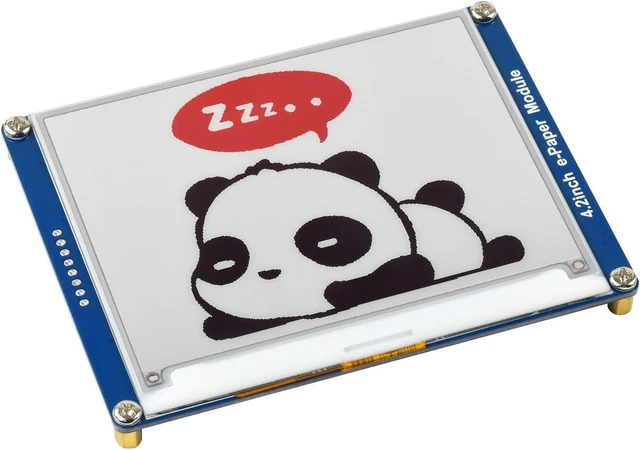

An E-Ink display module, 4.2inch, 400x300 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
With advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
No backlight is required, and the display content of the last screen can be maintained for a long time after disconnecting the power supply; the power consumption is very low, basically only power consumption during refresh

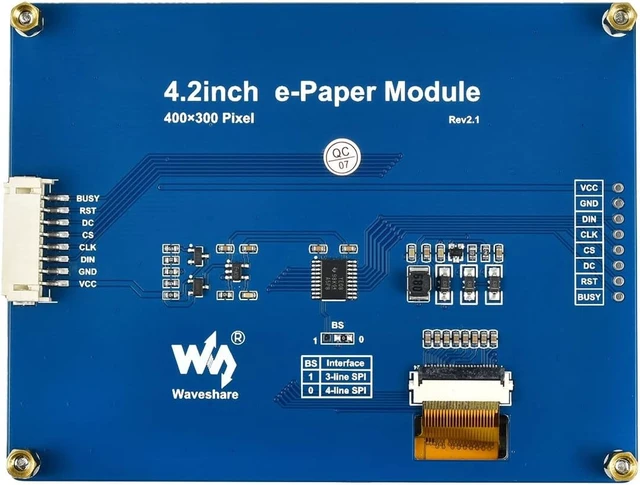

SPI control interface, which can be connected to main control boards such as Raspberry Pi/Jetson Nano/STM32; on-board level conversion chip, compatible with 3.3V and 5V microcontroller interfaces
Provide complete supporting information manual (example program for Raspberry Pi/Jetson Nano/STM32)
With advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
No backlight is required, and the display content of the last screen can be maintained for a long time after disconnecting the power supply; the power consumption is very low, basically only power consumption during refresh
SPI control interface, which can be connected to main control boards such as Raspberry Pi/Jetson Nano/STM32; on-board level conversion chip, compatible with 3.3V and 5V microcontroller interfaces
Provide complete supporting information manual (example program for Raspberry Pi/Jetson Nano/STM32)
