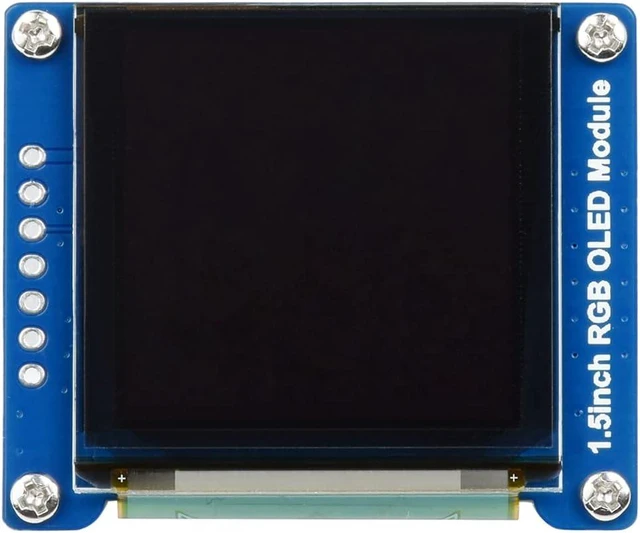

Waveshare 1.5inch RGB OLED Module, 128×128 Resolution 65K RGB Colors Display Module for Raspberry Pi
- Item #: 9SIVAMDM9A5024
- Mfr. Part #: 69044406072
- Use SPI control to ensure that it does not take up too many interface pins
+
+
Overview
Specs
Reviews

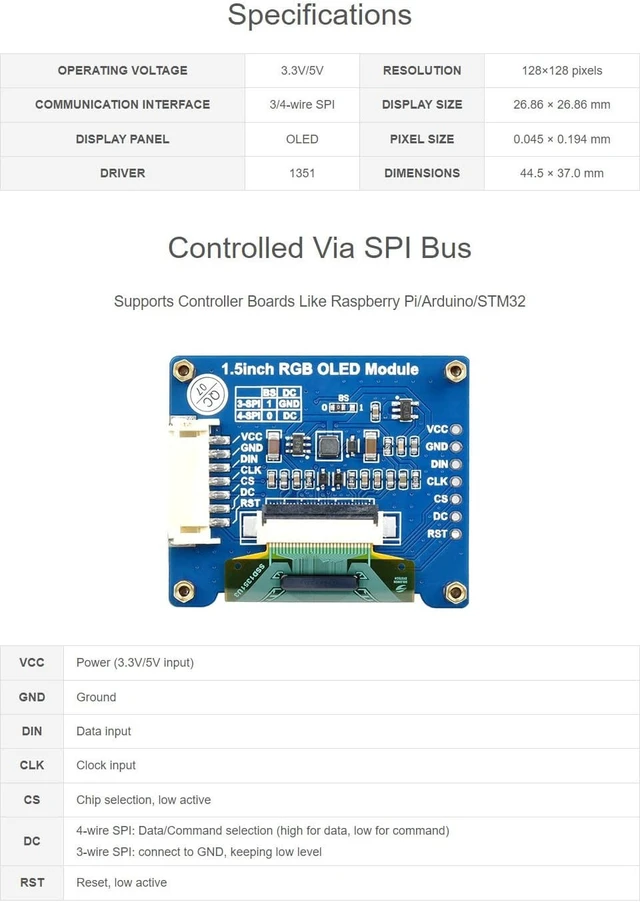

128 × 128 resolution OLED display, 65K color, can clearly display color pictures
Use SPI control to ensure that it does not take up too many interface pins
Provide complete supporting information manual (example program for Raspberry)
At the operating voltage of 3.3V: the working current of the OLED module is about 60mA for full white and 4mA for full black. (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
OLED has no backlight, and the display is self-illuminating. Only connect VCC and GND, the OLED will not light up. Program control is required to brighten the OLED
Use SPI control to ensure that it does not take up too many interface pins
Provide complete supporting information manual (example program for Raspberry)
At the operating voltage of 3.3V: the working current of the OLED module is about 60mA for full white and 4mA for full black. (Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
OLED has no backlight, and the display is self-illuminating. Only connect VCC and GND, the OLED will not light up. Program control is required to brighten the OLED
