RP2350-USB-C Microcontroller Development Board USB-C Embedded Development Module with RP2350A Dual-Core Chip ARM Cortex-M33 or Hazard3 RISC-V Architecture GPIO SPI I2C UART ADC PWM
- Item #: 9SIVUX4M982902
- Mfr. Part #: 266534192754
- Built around the RP2350A chip, this development board provides a dual-core platform for embedded development and programming projects.
- Choose between ARM Cortex-M33 and Hazard3 RISC-V architecture as described for the RP2350A, supporting different embedded development approaches.
- A USB-C Type-C connection supports board power and programming, combining both functions through the stated connector.
- USB 1.1 device and host functions support development with the board across both USB operating modes.
- Drag-and-drop firmware programming provides a direct way to load firmware onto the development board.
- Multifunction GPIO pins provide expansion connections for custom embedded systems and hardware development.
- SPI, I2C and UART interfaces support peripheral connections through the board's GPIO expansion.
- ADC and PWM interfaces add the stated signal and control options for embedded hardware development.
- Castellated edges allow the module to be soldered directly onto carrier boards for hardware integration.
+
+
Overview
Specs
Reviews
Product Description:

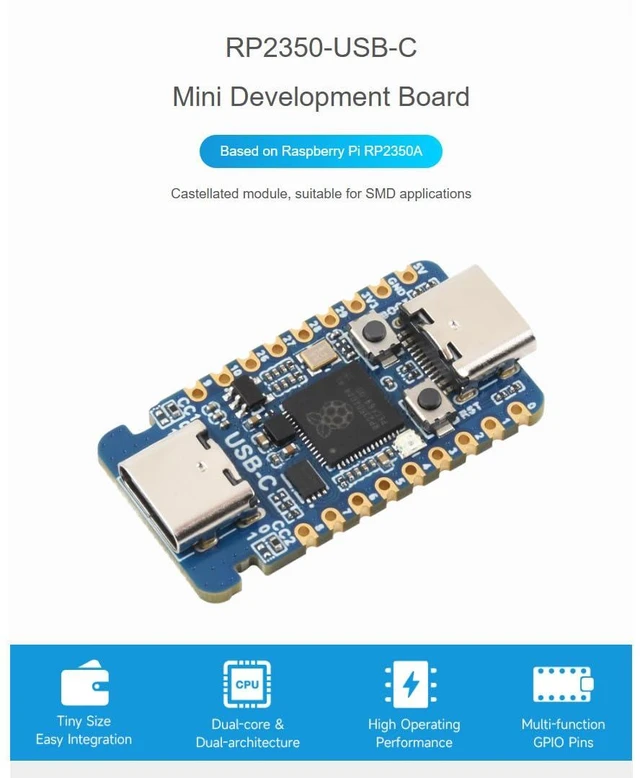

RP2350-USB-C Microcontroller Development Board is a compact USB-C development module based on the RP2350A chip. It is designed for embedded development, advanced programming projects, prototypes, and custom hardware integration.
Core Selling Points:
Dual-core ARM Cortex-M33 or Hazard3 RISC-V architecture supports embedded development. USB-C connectivity provides power and programming with USB 1.1 device and host functions. Drag-and-drop firmware programming simplifies development. Multifunction GPIO supports multiple peripheral interfaces, while castellated edges enable direct soldering onto carrier boards.
Technical Specifications:
Chip: RP2350A. Architecture: dual-core ARM Cortex-M33 or Hazard3 RISC-V. Connection: USB-C. USB functions: USB 1.1 device and host. GPIO interfaces: SPI, I2C, UART, ADC, and PWM. Programming support: C/C++ and MicroPython. Module design: castellated edges for direct soldering onto carrier boards.
Before Purchase:
Confirm that your project supports a USB-C connection for power and programming, USB 1.1 device and host functions, and the listed GPIO interfaces. The castellated-edge design is intended for direct soldering onto carrier boards.
