    ESP32-S3-Touch-LCD-2 2inch Capacitive Touch LCD Development Board 240x320 IPS Display ESP32-S3R8 32-bit LX7 Dual-Core MCU up to 240MHz 2.4GHz Wi-Fi 802.11 b/g/n Bluetooth 5 LE

    • Item #: 9SIVUX4M971381
    • Mfr. Part #: 503225299303
    Be the first to review this product...

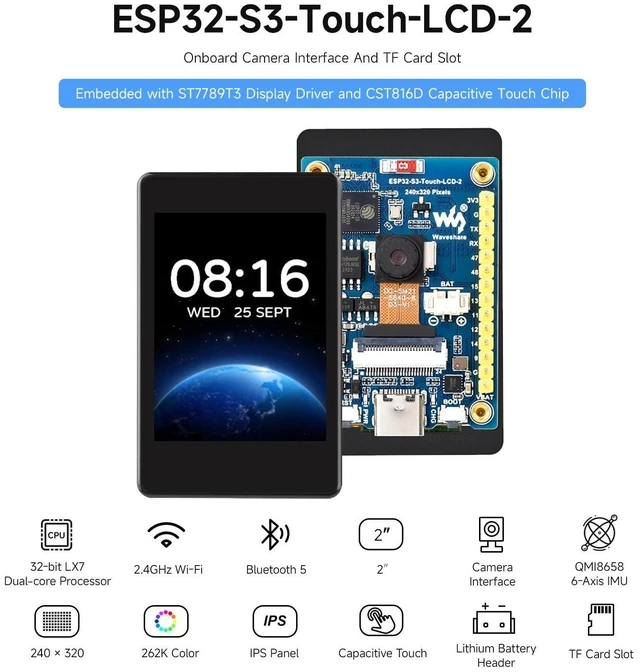

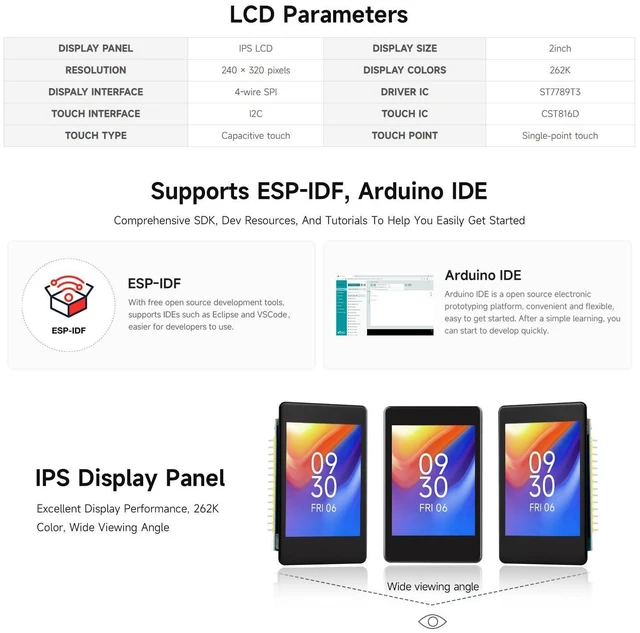

    • The 2-inch IPS capacitive touch display provides a 240 × 320 resolution and 262K colors for color-picture display.
    • An ESP32-S3R8 32-bit LX7 dual-core processor runs at up to 240MHz, providing the board's main processing capability.
    • Built-in wireless support includes 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna.
    • Memory includes 512KB SRAM, 384KB ROM, 8MB onboard PSRAM, and 16MB external Flash memory.
    • The onboard ST7789T3 display driver and CST816D capacitive touch chip use SPI and I2C communication, respectively, saving IO resources.
    • A 3.7V MX1.25 lithium battery recharge/discharge header and onboard lithium battery recharge manager support battery charging and discharging.
    • An onboard 6-axis sensor combines a 3-axis accelerometer and a 3-axis gyroscope for motion sensing.

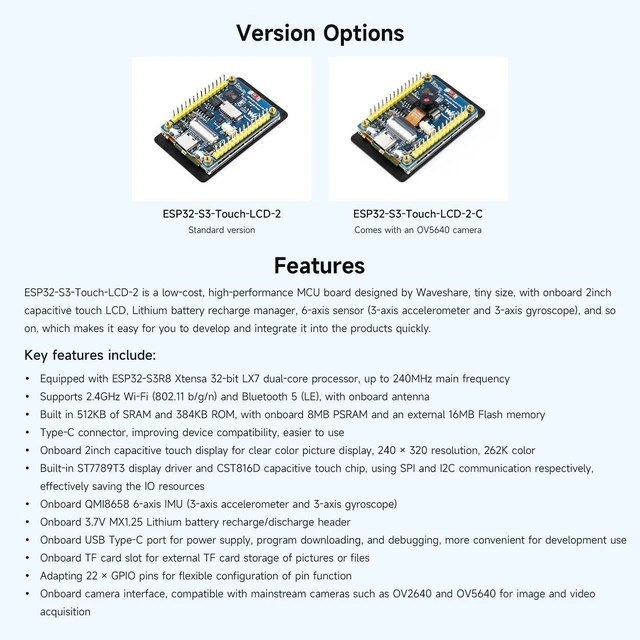

    • The development board does not include an OV560 camera.
    +
    +
    Overview
    Specs
    Reviews

    Product Description:

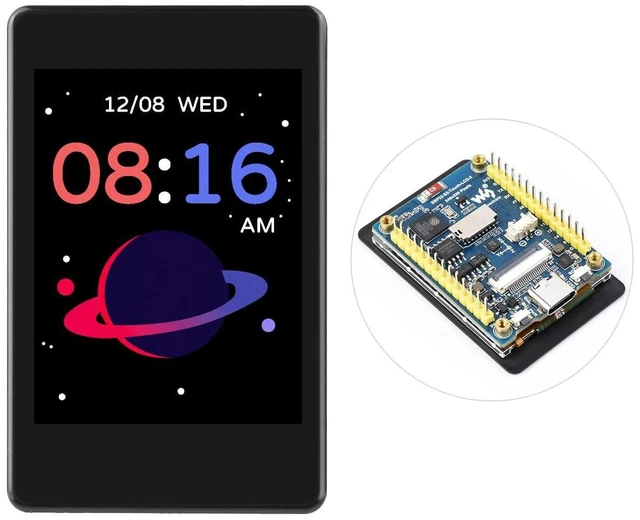

    ESP32-S3-Touch-LCD-2 development board with a 2-inch capacitive touch display for product development and integration.

    Core Selling Points:

    The board combines a color touch display, a 6-axis sensor with a 3-axis accelerometer and 3-axis gyroscope, wireless connectivity, and a lithium battery recharge manager. The display uses SPI communication and the touch chip uses I2C communication to save IO resources.

    Technical Specifications:

    Processor: ESP32-S3R8 Xtensa 32-bit LX7 dual-core, up to 240MHz. Display: 2-inch IPS capacitive touch LCD, 240 × 320 resolution, 262K colors; ST7789T3 display driver and CST816D capacitive touch chip. Wireless: 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna. Memory: 512KB SRAM, 384KB ROM, 8MB PSRAM, and 16MB external Flash. Connector: Type-C. Battery header: 3.7V MX1.25 lithium battery recharge/discharge.

    Before Purchase:

    The OV560 camera is not included.
