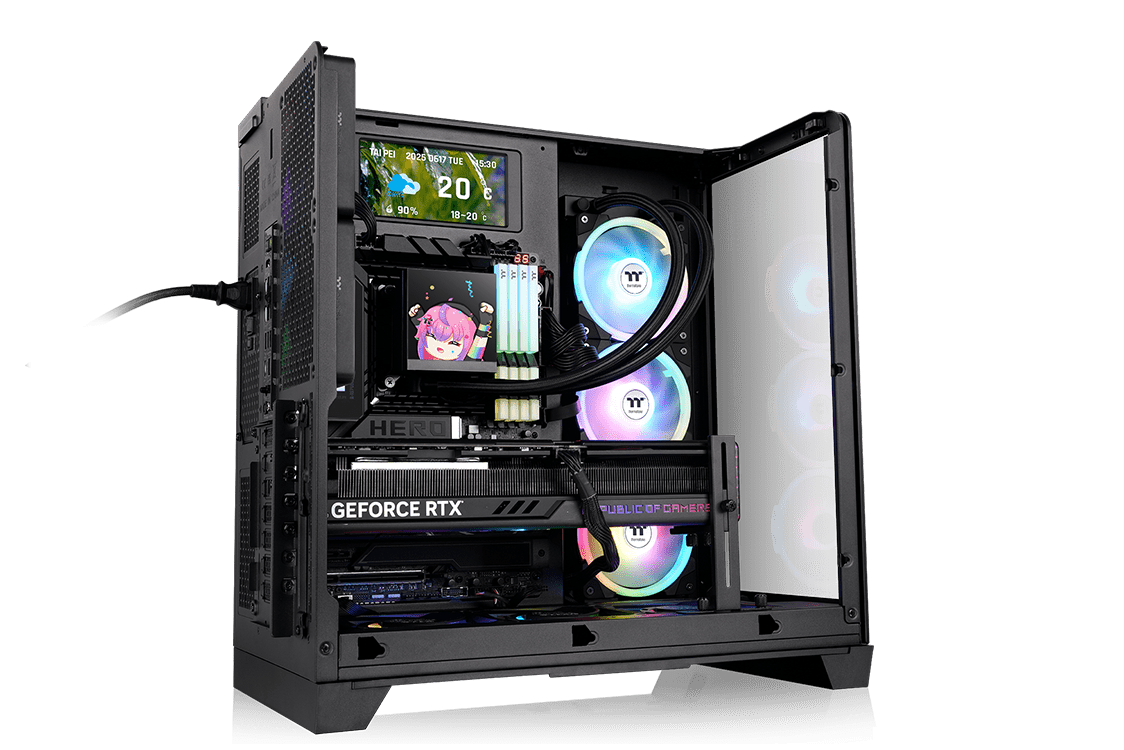

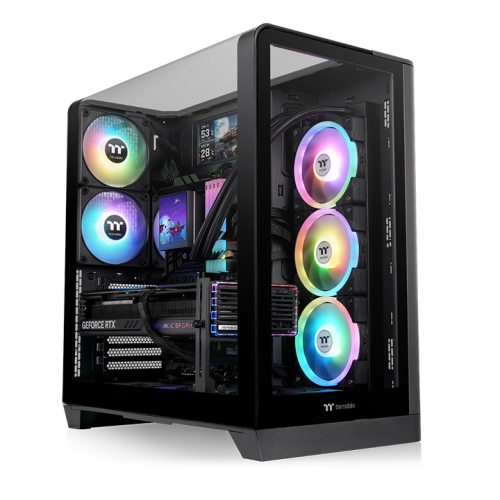

The View 390 TG Mid Tower Chassis is an ATX case featuring a curved panel and a tempered glass panel, rotational PCI-E slots, and two CT120 rear fans. An optional 3.9”/ 6” LCD Screen Kit is available for enhanced visuals.
Mini ITX/Micro ATX/ATX
4mm TG*2

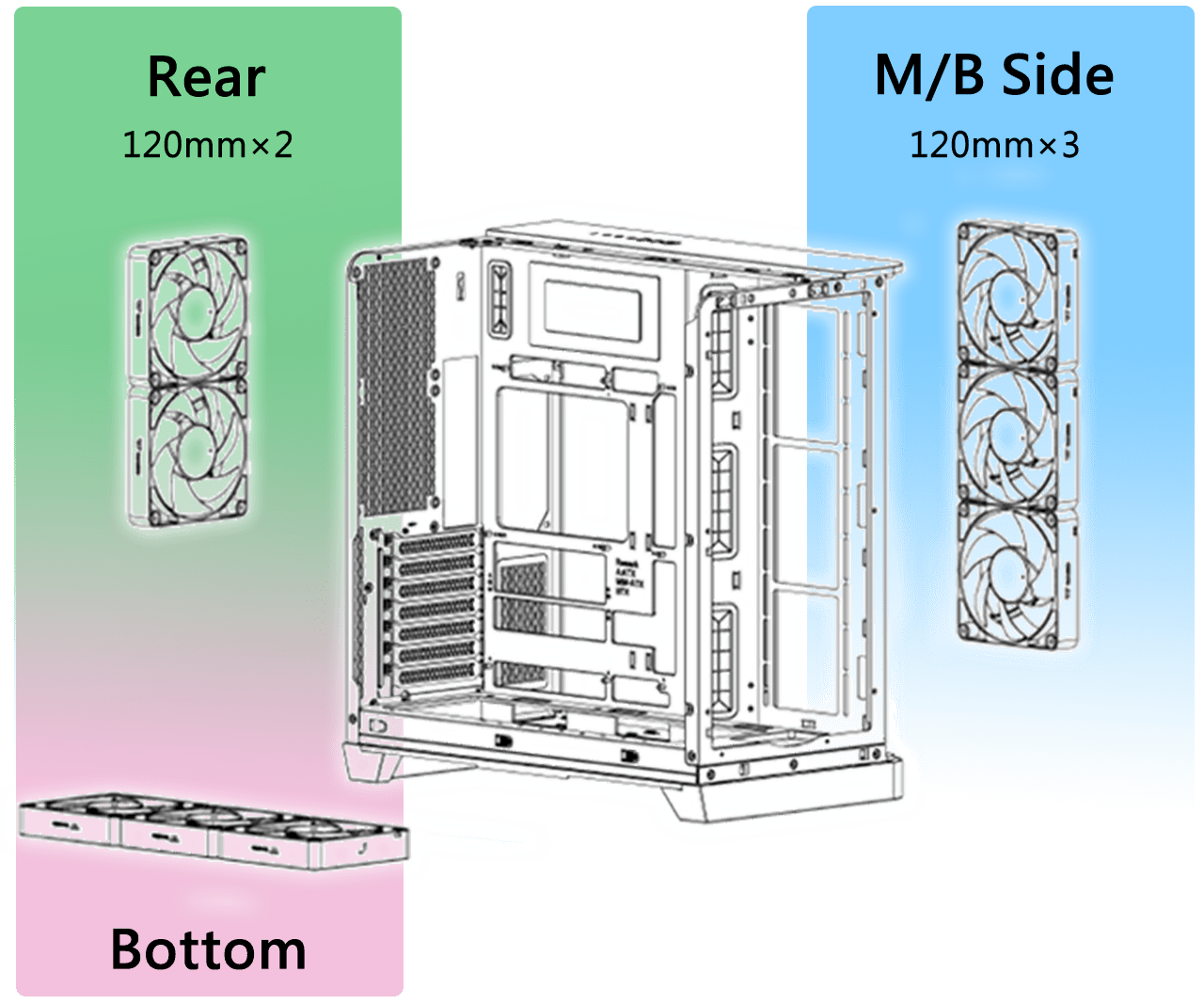

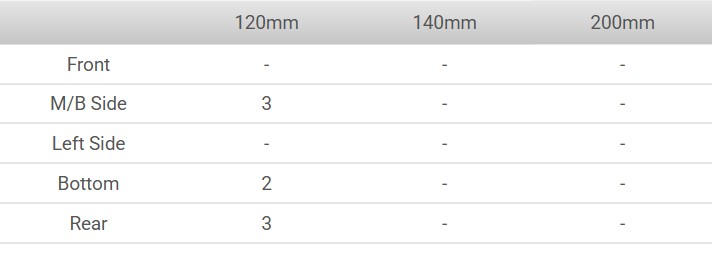

Up to eight 120mm fans
360/240/120mm
503 × 287 × 485
CPU Cooler: 160
GPU: 460
Power Supply: 260
1 × USB Type-C
2 × USB 3.0
1 × HD-Audio
2 × 3.5” HDD
3 × 2.5” SSD
* The image is for reference only.

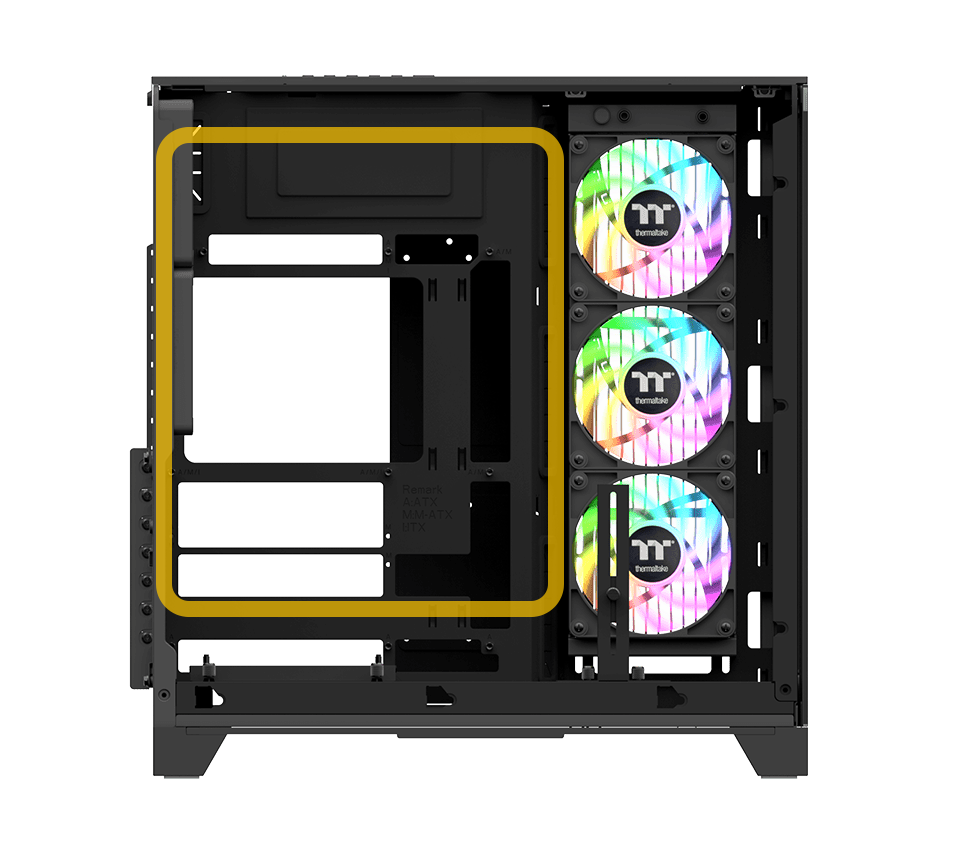

Created for next-generation motherboards, the View 390 TG Mid Tower Chassis features a special design that support both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.
- ASUS BTF Series
- MSI PROJECT ZERO Series
- GIGABYTE PROJECT STEALTH Series
* The image is for reference only.

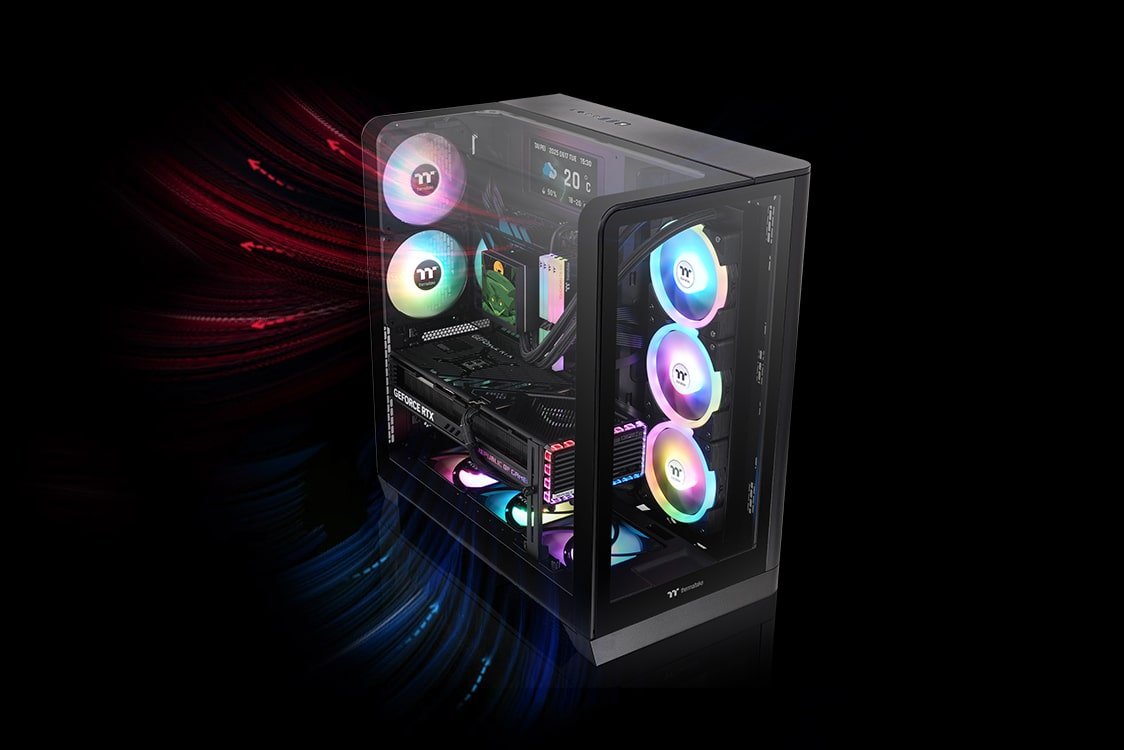

The View 390 TG Mid Tower Chassis features a curved panel and a tempered glass panel for a distinctive look.
* The image is for reference only.

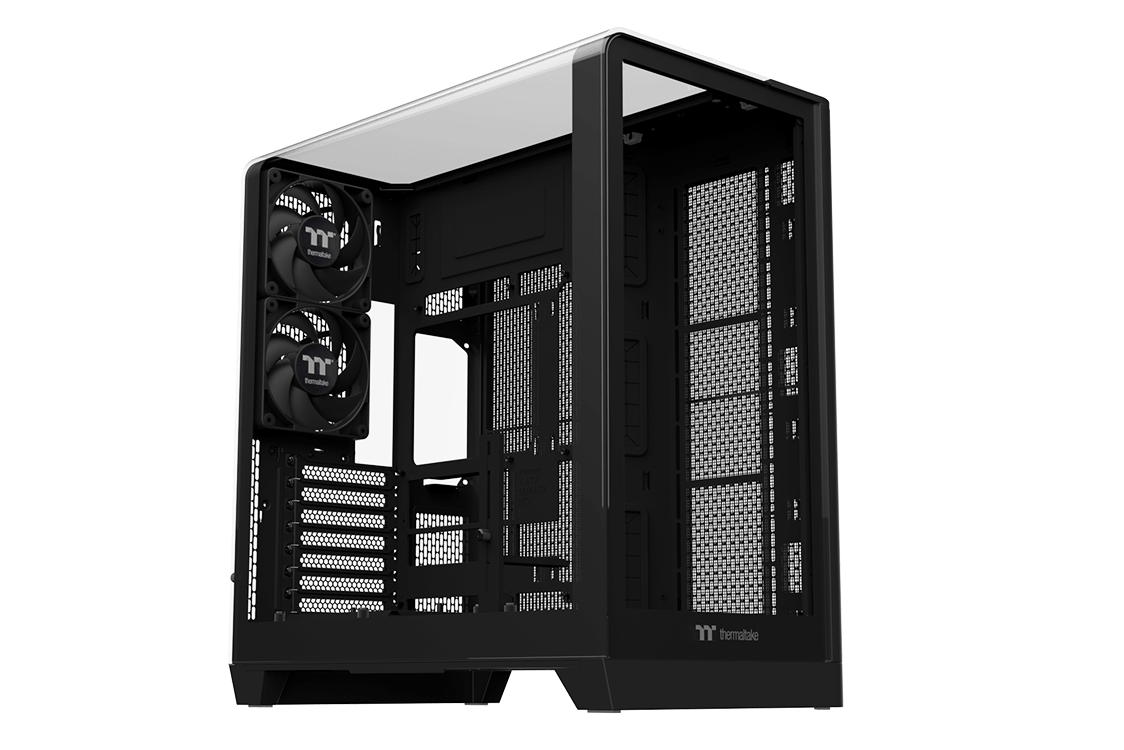

The View 390 TG Mid Tower Chassis features two 120mm PWM fans at the rear to provide good cooling performance.
* The image is for reference only.

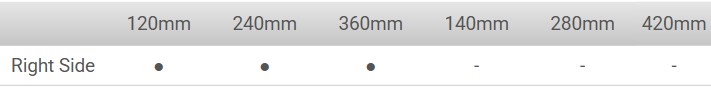

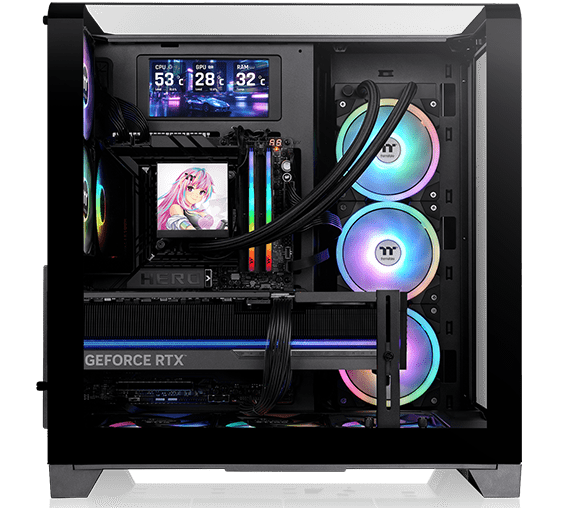

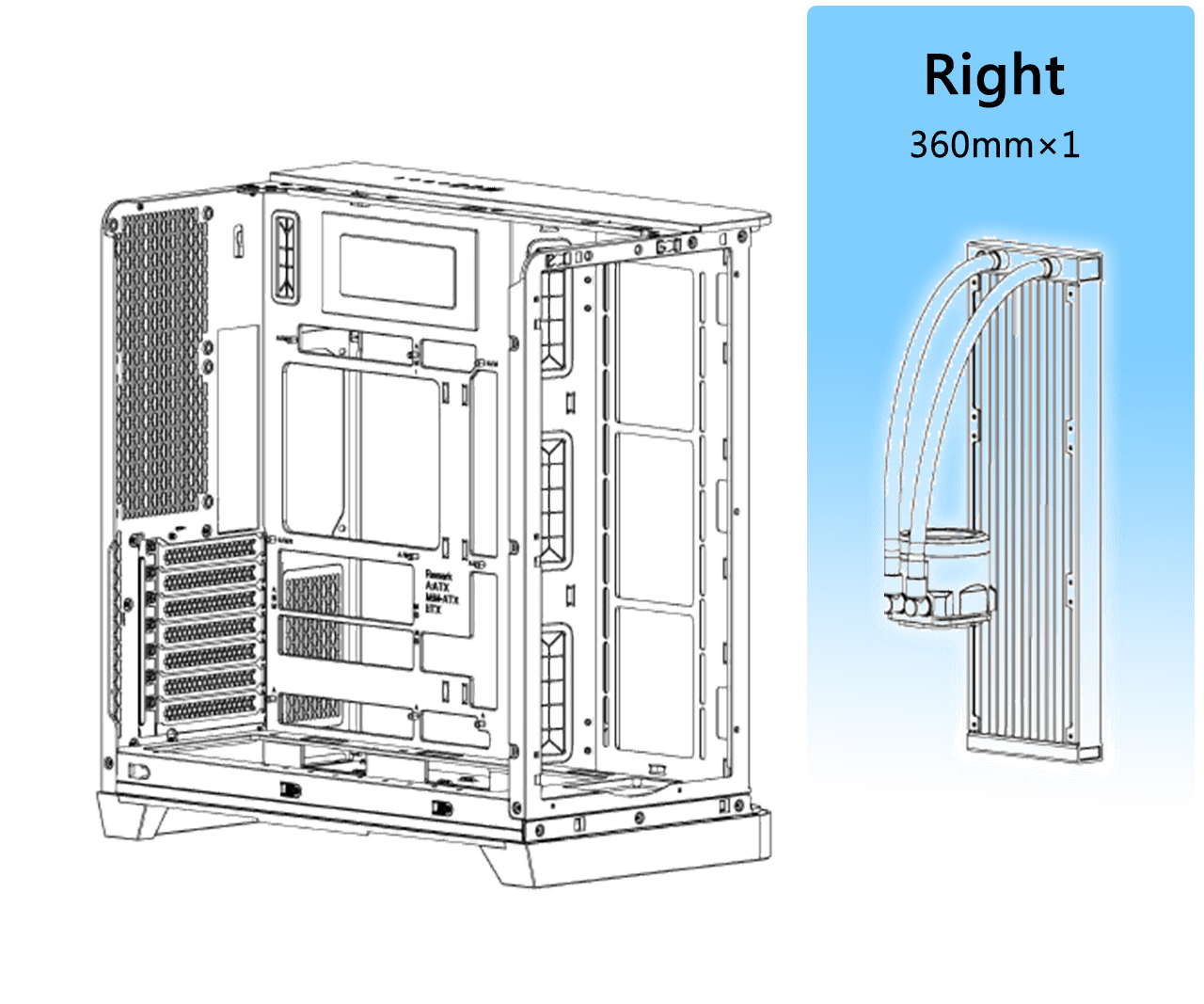

Providing good cooling support, users can choose to place a 360mm radiator at the right of the View 390 TG Mid Tower Chassis.
* The image is for reference only.

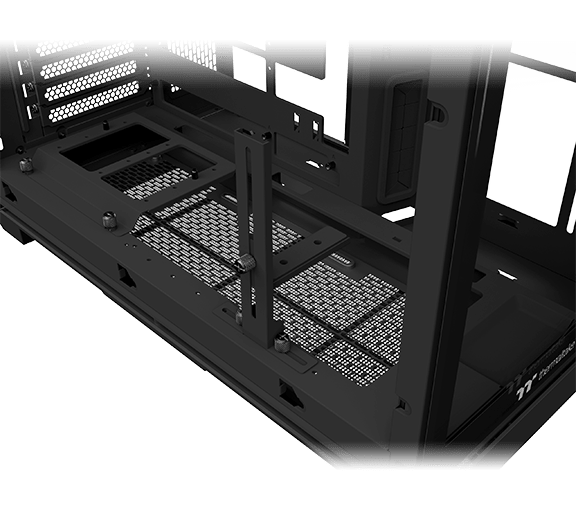

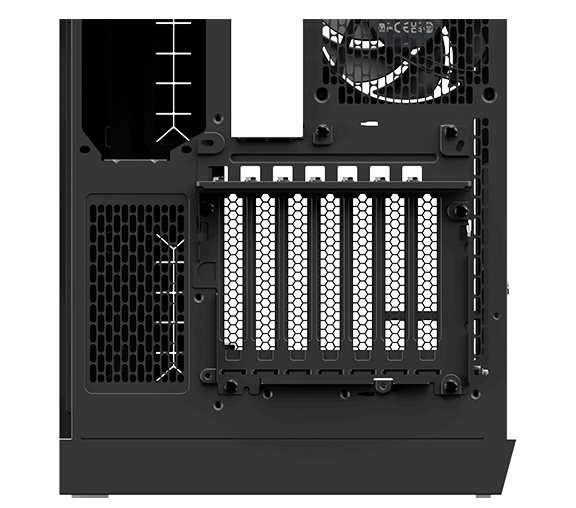

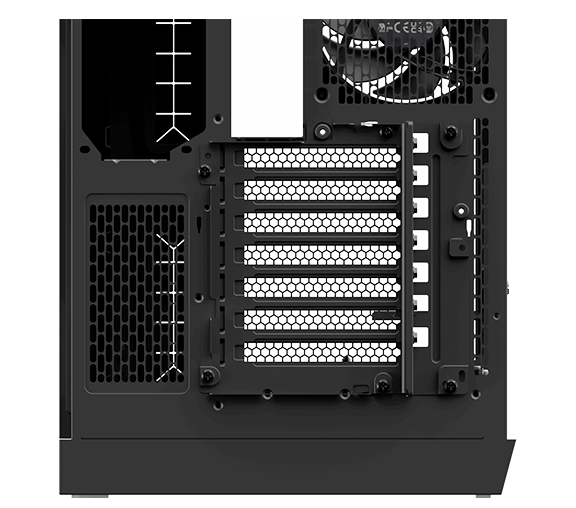

The rotatable PCI-E slots support both horizontal and vertical GPU mounting. An included GPU holder and riser cable bracket also help to support the GPU and prevent sagging.
* The image is for reference only.

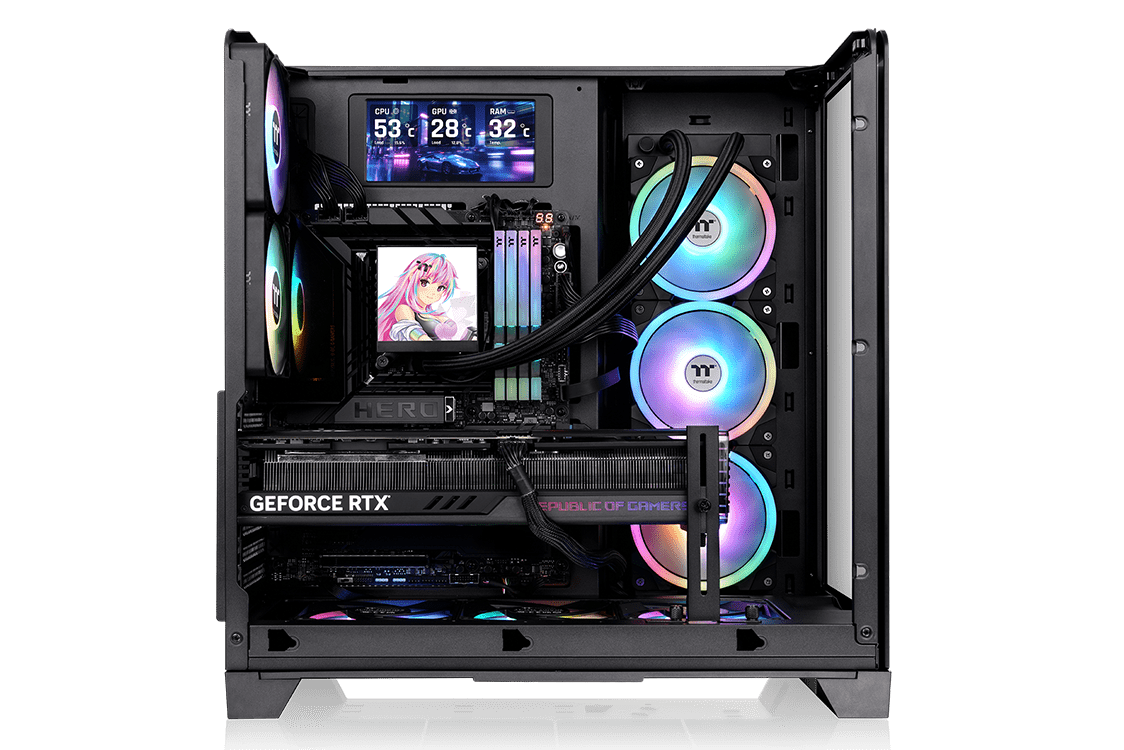

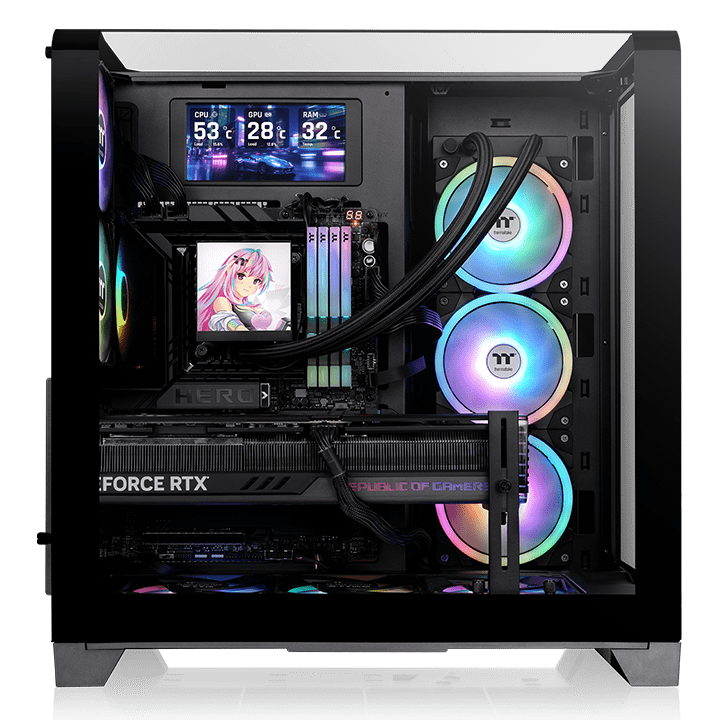

Maximize your View 390 TG Mid Tower Chassis visualeffects by upgrading it with our LCD Screen Kit.
The 3.9” / 6” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the latest TT RGB Plus software.
* The image is for reference only.

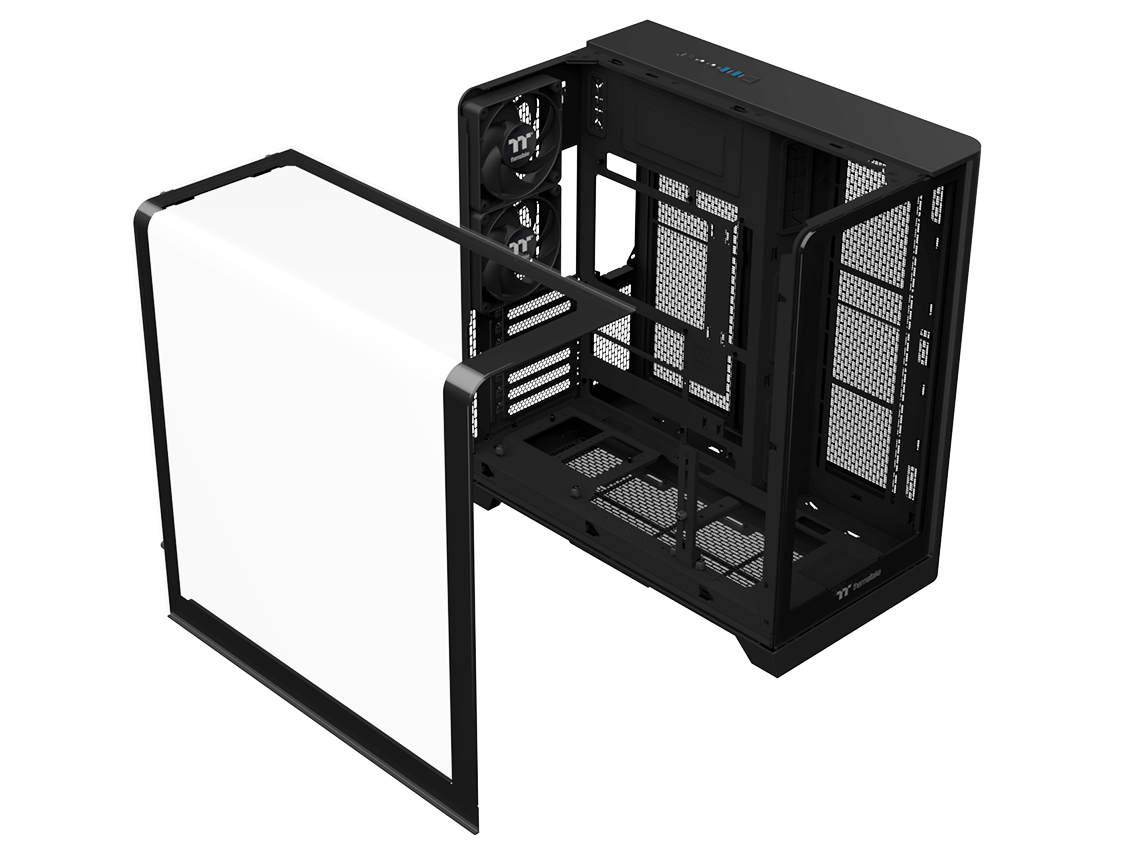

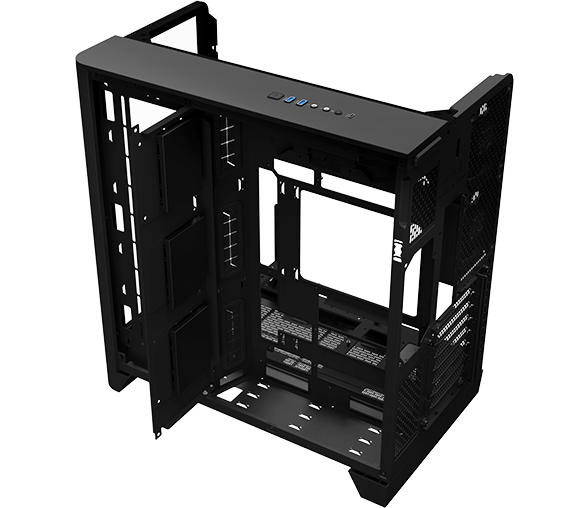

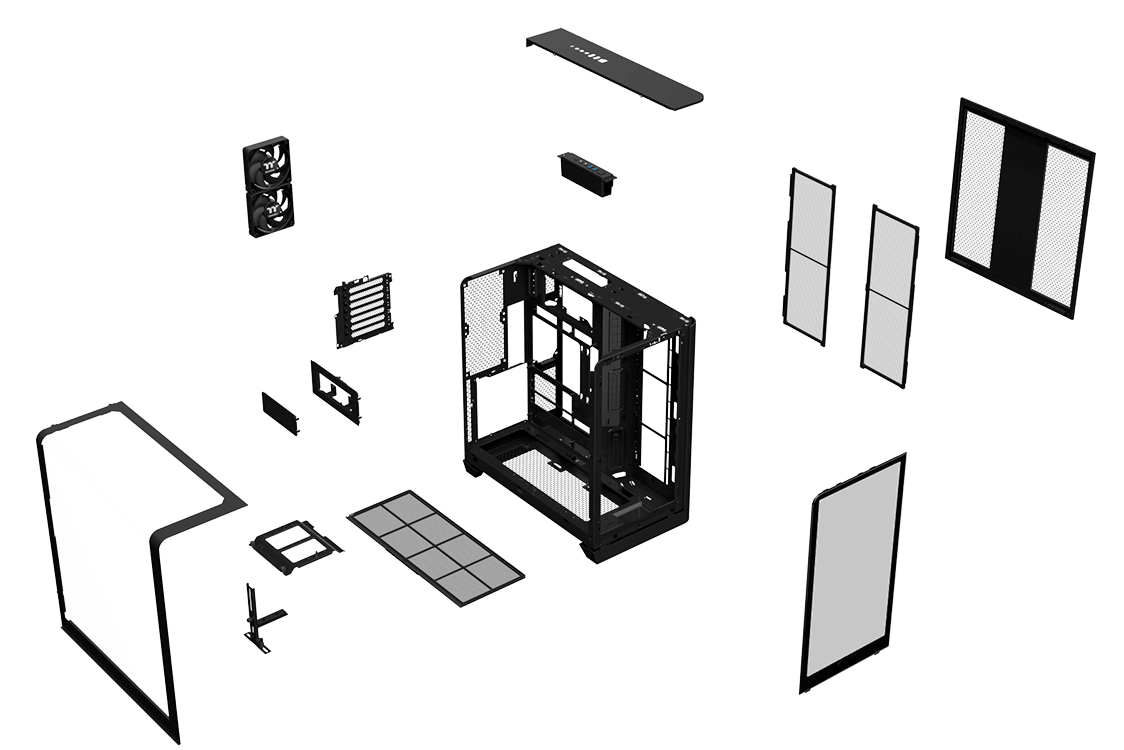

No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
* The image is for reference only.
Through the TT RGB Plus, the 6" LCD display presents real-time information and plays JPG and GIF files with at a 1480*720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.
GIFs
Real-Time Information
Time
Weather
Take your LCD display customization to the next level with AI Forge, an innovative feature built into the TT RGB PLUS 3.0 software. Simply type a prompt, and the AI will instantly generate a stunning background that brings your imagination to life. You can save your creations directly in the software without any extra downloads or uploads, freely edit the design, overlay real-time system information, and fully express your own style.
* AI Forge integrates with OpenAI services. An OpenAI account setup and payment are required to activate this function. According to OpenAI’s pricing standard as of August 2025, the average cost per image generation is about USD 0.04.
* The video is for reference only.
Equipped with two CT120 rear fans, the View 390 TG Mid Tower Chassis provides efficient airflow to keep internal temperatures low at all times.
* The image is for reference only.

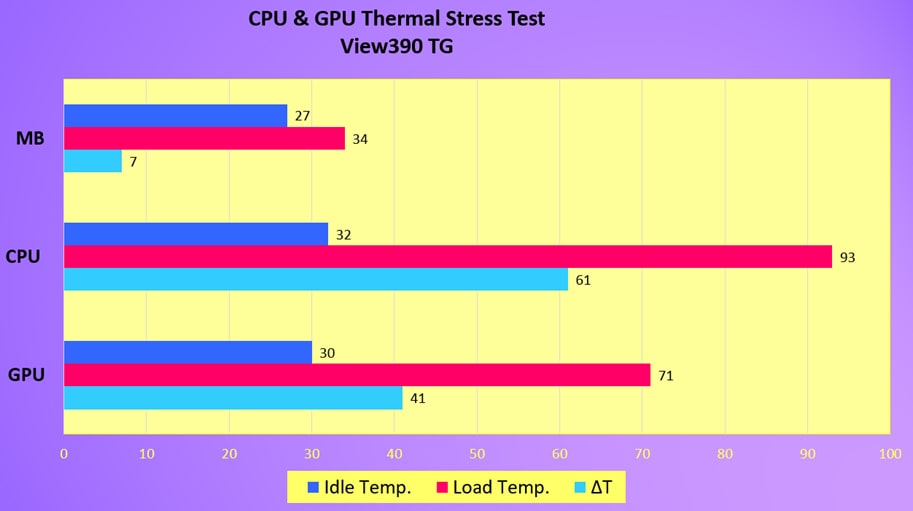

At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The View 390 TG Mid Tower Chassis products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.
| Chassis | View 390 TG |
| Motherboard | ASUS ROG Maximus Z890 Hero |
| CPU | Intel® Core™ Ultra 9 285K Processor (TDP 250W) |
| GPU | ASUS ROG Astral GeForce RTX 5090 32GB GDDR7 OC |
| RAM | TOUGHRAM Z-ONE RGB DDR5 32G (16G x 2) |
| SSD | Seagate SSD 120G |
| PSU | Toughpower GF3 1200W |
| CPU Cooler | MAGFloe 360 Ultra ARGB Sync |
| Fans | AIO: SWAFAN EX120 ARGB x 3 (2000rpm) Chassis: CT120 EX Black x 5 (2000rpm) (Rear x 2, Bottom x 3) |
View 390 TG

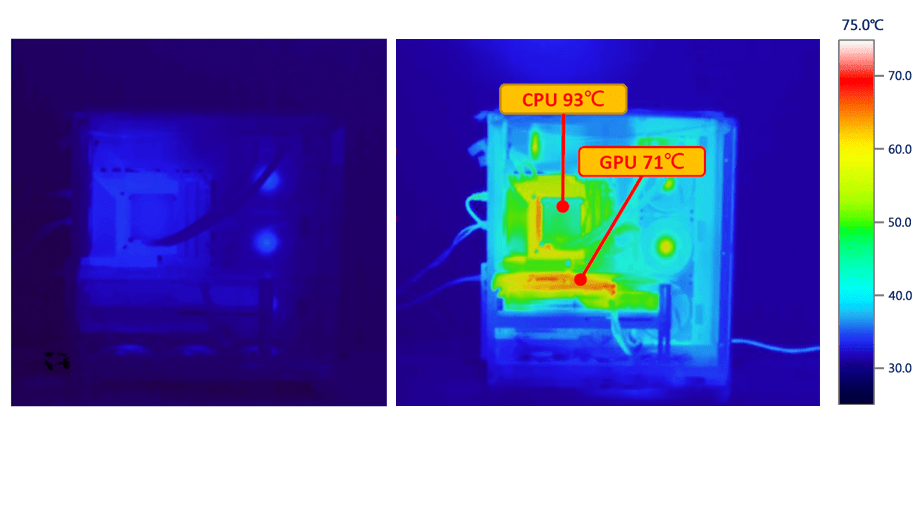

Thermal images taken during thermal testing. We can see that View 390 TG guarantees good cooling performance and a low internal temperature while using the highest quality components.

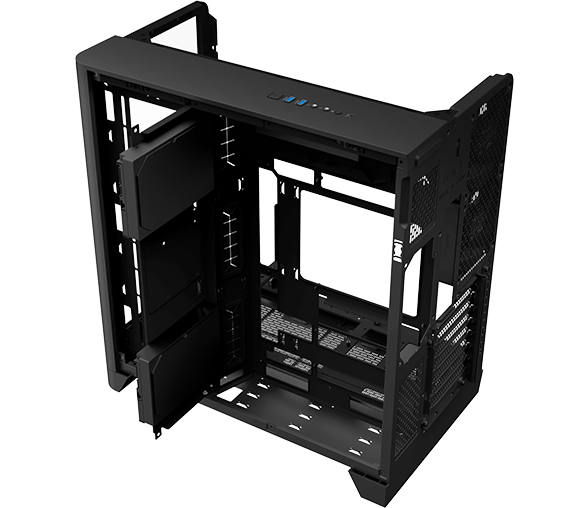

For storage compatibility, the View 390 TG Mid Tower Chassis gives maximum support of up to three 2.5‘’ SSDs or two 3.5‘’ HDD in total.
* The image is for reference only.

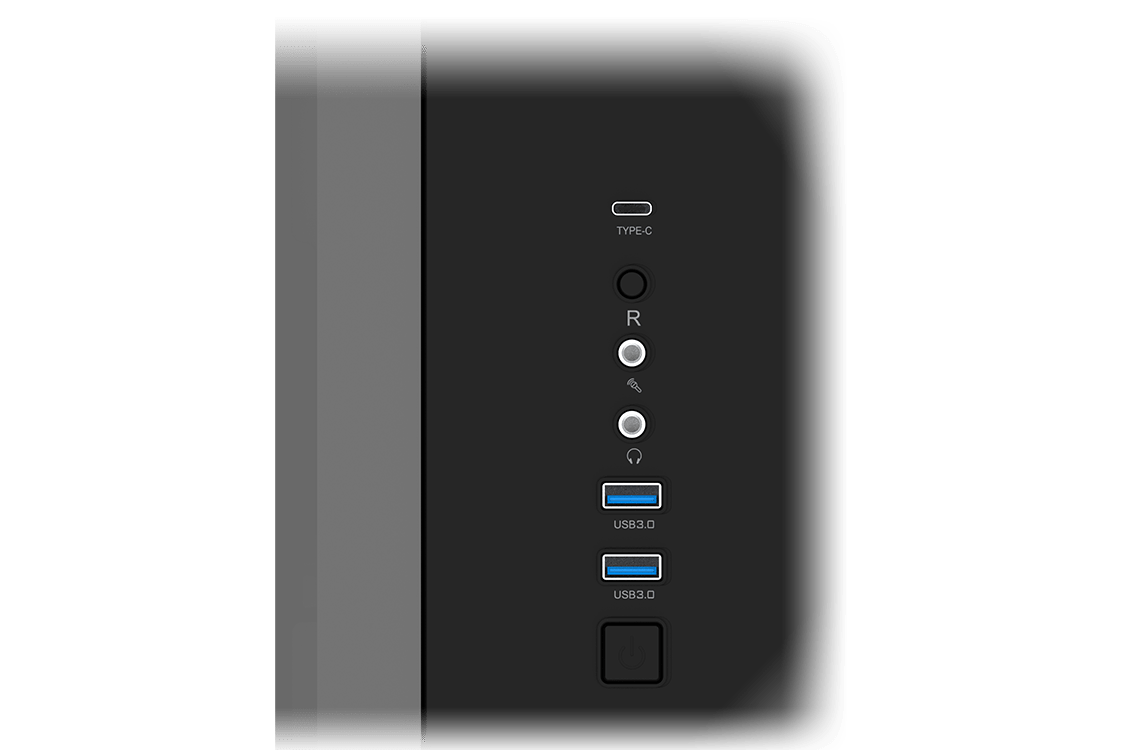

Two USB 3.0, one USB 3.2 Gen 2 Type-C and HD Audio are placed on the top panel to grant direct access when needed.
* The image is for reference only.
