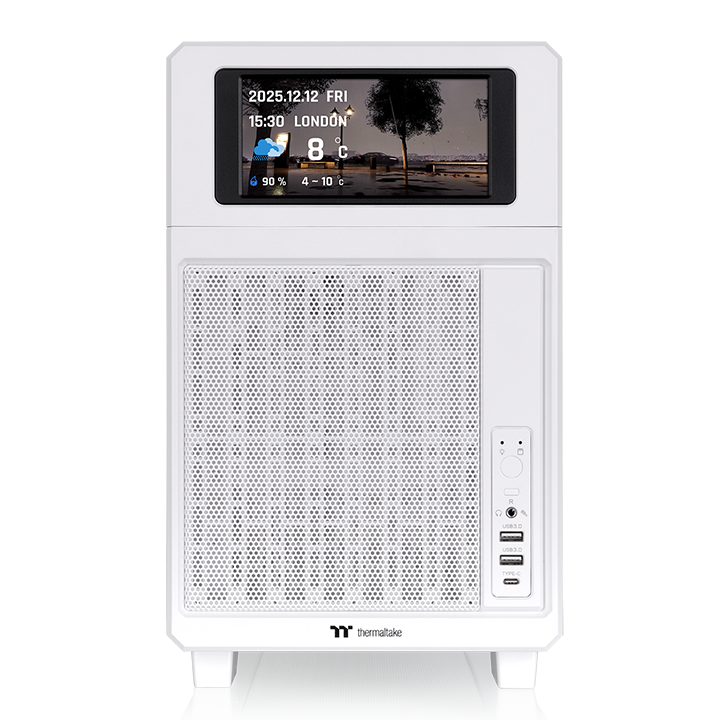

TR200 Snow Micro Chassis
The TR200 Snow Micro Chassis is an Micro-ATX case featuring a 5.25” drive bay for multi-purpose use and supports up to 360mm AIO for maximum cooling efficiency. An optional 6” LCD Screen Kit is available for enhanced visuals. Up to seven 120mm fans, and it supports up to 360mm radiator, providing flexible options for cooling solutions.
* The image is for reference only.
Dimensions (mm)
364 x 220 x 494
Motherboard
Mini ITX / Micro ATX
Fan Support
Up to seven 120mm fans
AIO Support
360 / 280 / 240 / 140 / 120mm
Clearance (mm)
CPU Cooler: 175
GPU: 365
Power Supply: Up to 258
I/O Ports
1 x USB Type-C
2 x USB 3.0
1 x HD-Audio
Storage
2 × 3.5" HDD
2 × 2.5" SSD
* The image is for reference only.

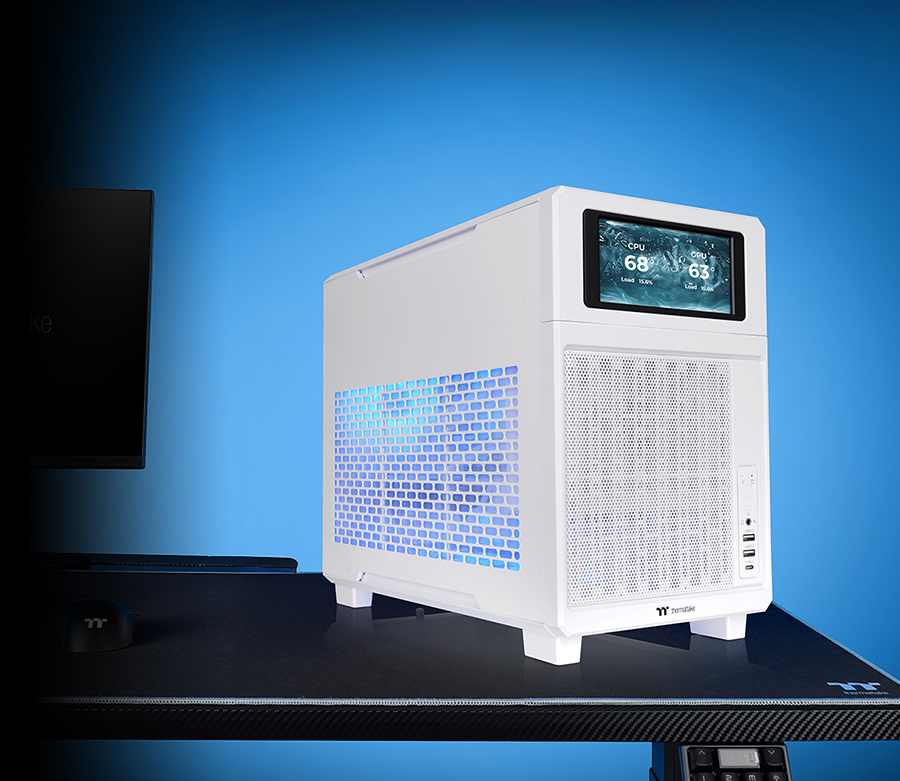

Visually Pleasing, Totally Interactive
Maximize your TR200 Snow Micro Chassis visual effects by upgrading it with our LCD Screen Kit.
The 6” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the latest TT RGB Plus software.
* The image is for reference only.
Personalize Your LCD Display
Through TT RGB Plus, the 6‘’ LCD display presents real-time information and plays JPG and GIF files with 1480*720 resolution. It comes with six default background styles, and users can upload up to 20 custom images. Additionally, the display can show time and weather information, enhancing both visual appeal and customization options for your build.
* The images are for reference only.
GIFs
Real-Time Information
Time
Weather
/11-133-591/10a1v.gif)
/11-133-591/10a2.gif)
/11-133-591/10a3.gif)
/11-133-591/10a4.gif)
Unleash Limitless Creativity with AI Forge
Take your LCD display customization to the next level with AI Forge, an innovative feature built into the TT RGB PLUS 3.0 software. Simply type a prompt, and the AI will instantly generate a stunning background that brings your imagination to life. You can save your creations directly in the software without any extra downloads or uploads, freely edit the design, overlay real-time system information, and fully express your own style.
* AI Forge integrates with OpenAI services. An OpenAI account setup and payment are required to activate this function. According to OpenAI's pricing standard as of August 2025, the average cost per image generation is about USD 0.04.
* The video is for reference only.
Enhanced Dust Protection
Filters on the top, bottom, and side panels keep your system clean.
* The images are for reference only.
Top Dust Filter
Side Dust Filter
Bottom Dust Filter
Storage Support
Supporting up to two 3.5” HDDs and one 5.25” drive bay, or one 3.5” HDD, two 2.5” SSDs, and one 5.25” drive bay.
* The images are for reference only.
Drive Mounting Area for one 3.5” HDD
Drive Plate for one 3.5” HDD or two 2.5” SSDs
5.25” Drive Bay
Handy I/O Ports
- Power Button
- Reset Button
- HD Audio
- 2 x USB 3.0 Type-A
- 1 x USB 3.2 Gen 2 Type-C
* The image is for reference only.
PSU Installation Compatibility
Supports Mini-ITX and Micro-ATX motherboards; power supply can be installed at different mounting positions inside the case.
Power supply rack adjustments : Position A and B
* The images are for reference only.
- Front view of the chassis with the panels removed.
- PSU can be installed in Position A & B
- Purpose of PSU Position A & B:
AOptimizes the AIO & GPU clearance
BProvides more headroom for top-mounted radiators or fans compared to position A.

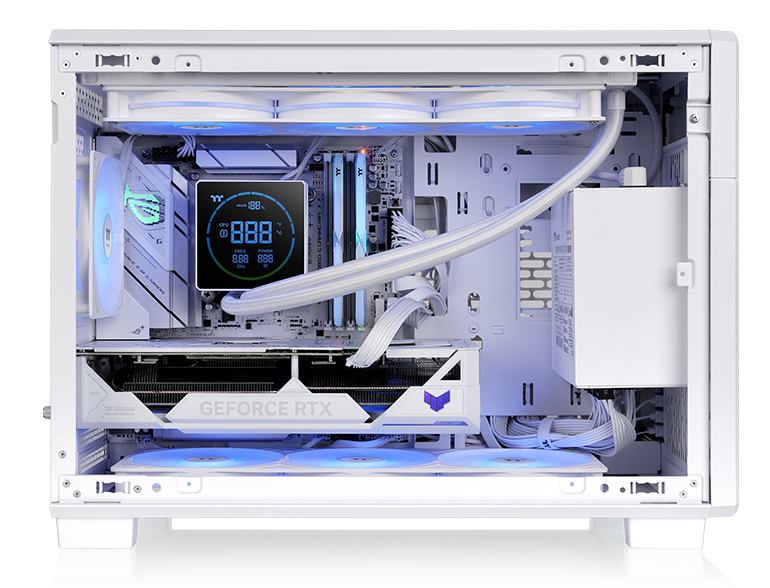

Hardware Clearance Scenario
* The images are for reference only.
When the 5.25” Drive Bay is Not In Use
When the 5.25” Drive Bay is in Use
Max Radiator Support
Supports up to 360mm AIO radiator
Max GPU Support
Front-mounted PSU at position A or B: 365mm
Max Radiator Support
Top radiator support is limited to 1 x 240 mm or 1 x 140 mm
Front-mounted PSU at position A or B
Fan Compatibility List
All-in-One Compatibility List
