Supermicro SuperServer 1029P-WTR
SuperServer 1029P-WTR is built with support for dual Intel Xeon Scalable processors (LGA 3647), and up to 3 TB of DDR4 memory in its 12 DIMM slots which also work with Intel Optane memory, offering more than enough performance to drive various demanding applications.
SuperServer 1029P-WTR is also highly configurable within its compact 1U form factor. It offers two PCI-E 3.0 x16 slots (FHHL), one PCI-E 3.0 x8 slot (LP), one PCI-E 3.0 x16 for AOM, one PCI-E 3.0 x4 NVMe M.2 slot, eight hot-swap 2.5" drive bays and two LAN ports. It also has 80 Plus Platinum Certificated 750W redundant power supplies for continuous operation critical to today's business.
Ideal for:
- Web Server, Firewall Apps.
- Corporate-Wins, DNS, Print, Login
- Gateway, provisioning servers
- Compact Network Appliance
- Cloud Computing
Please note: this is a server barebone, and you need one (or two) processor(s), system RAM, storage drive and Operating System to complete this system. All sold separately.

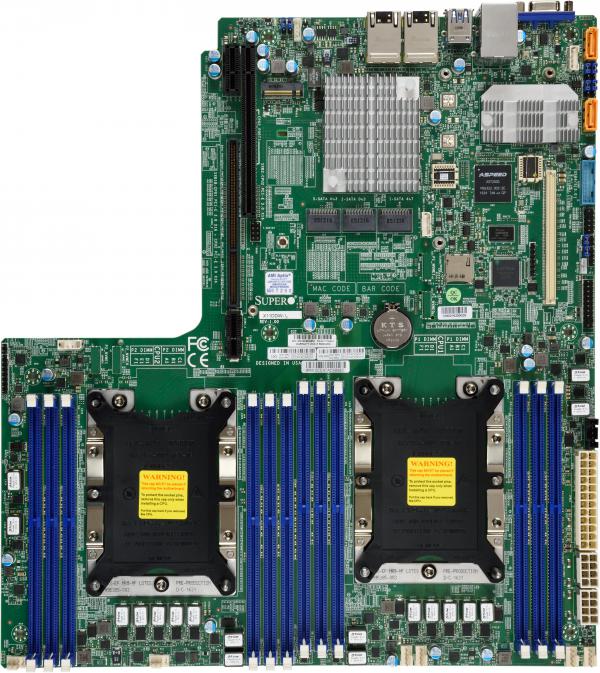

Integrated Board
Super X11DPH-T

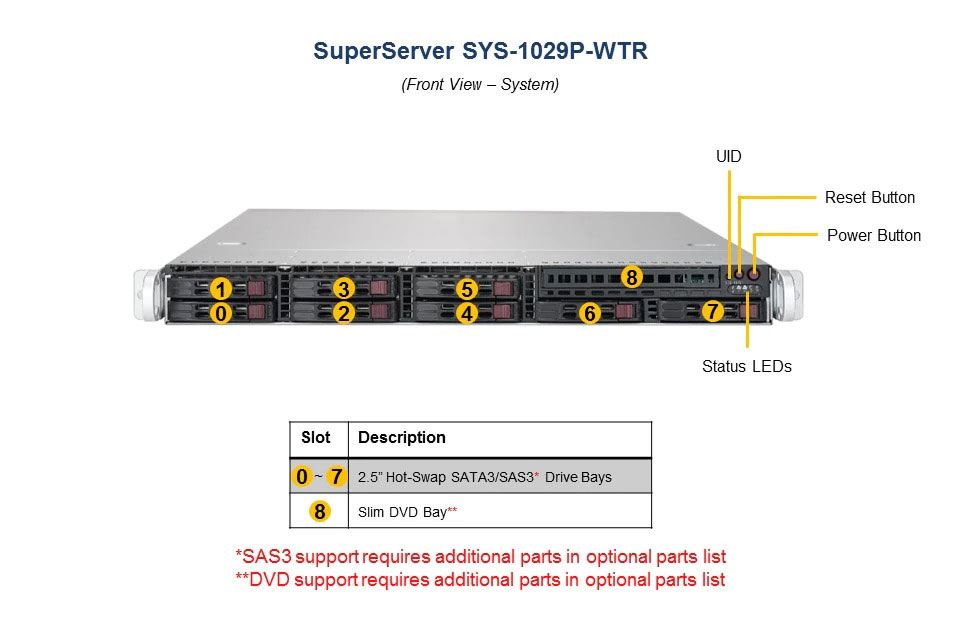

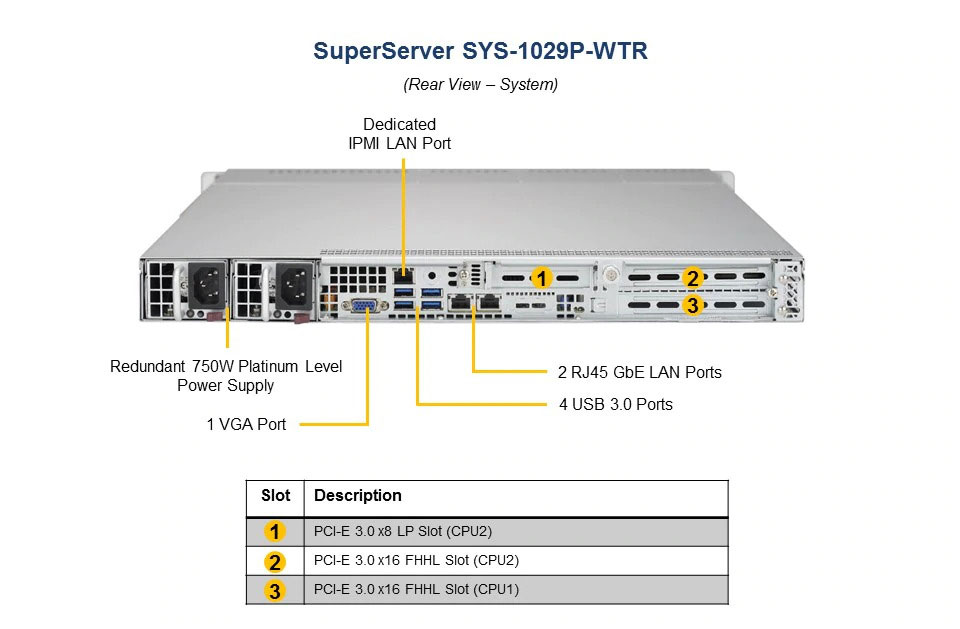

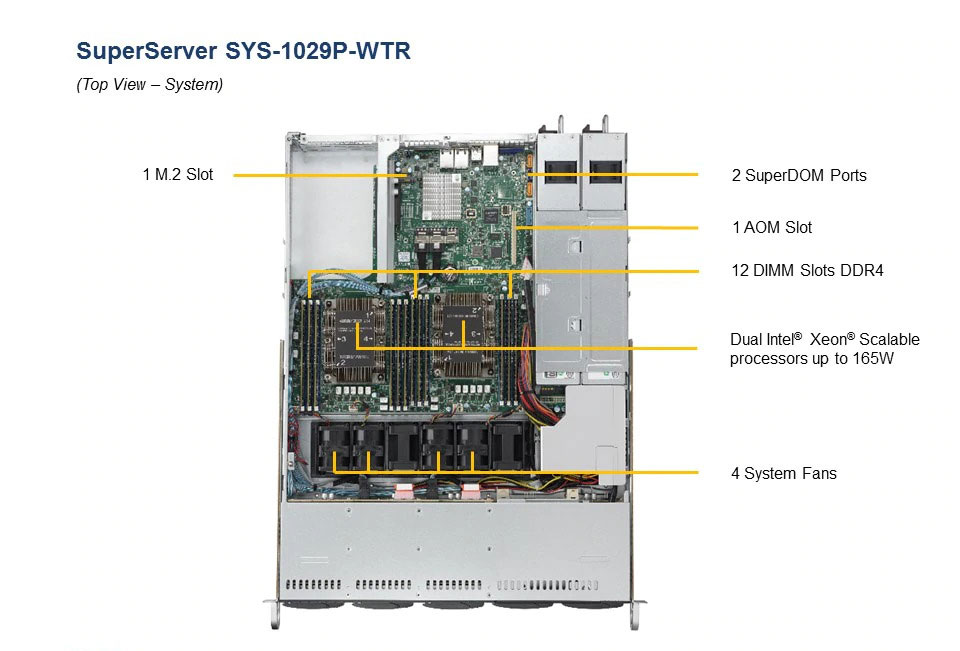

Views
Specifications
| Motherboard | |
|---|---|
| Model | Super X11DDW-L |
| Processor/Cache | |
| CPU |
|
| Cores | Up to 28 Cores |
| Note | BIOS version 3.0a or above is required to support 2nd Gen. Intel Xeon Scalable processors |
| System Memory | |
| Memory Capacity |
|
| Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Note |
|
| On-Board Devices | |
| Chipset | Intel C621 chipset |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Controllers | Dual LAN with Gigabit Ethernet from C621 |
| IPMI |
|
| Video | ASPEED AST2500 BMC |
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Video | 1 VGA port |
| DOM | 2 SuperDOM (Disk on Module) ports |
| System BIOS | |
| BIOS Type | AMI 32Mb SPI Flash ROM |
| Management | |
| Software |
|
| Power Configurations | ACPI / APM Power Management |
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
|---|---|
| Form Factor | 1U Rackmount |
| Model | CSE-113AC2-R706WB2 |
| Dimensions | |
| Width | 17.2" (437mm) |
| Height | 1.7" (43mm) |
| Depth | 23.5" (597mm) |
| Gross Weight | 46 lbs (20.9kg) |
| Available Colors | Black |
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| Drive Bays | |
| Hot-swap |
|
| Peripheral |
|
| Backplane | |
| Type | SAS/SATA HDD Backplane |
| System Cooling | |
| Fans | 4 Counter-rotating 4cm PWM fans, 2 fans for AOC cooling |
| AC/DC240V Input Redundant Power Supply | |
| Type | 700W/750W Redundant Power Supplies with PMBus |
| Total Output Power | 700W/750W |
| Dimension (W x H x L) | 54.5 x 40.25 x 320 mm |
| Input |
|
| +12V |
|
| +5V sb | Max: 3A / Min: 0A |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 |
| Certification | 80 PLUS Platinum Certified |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. |
|
