4 Port USB 3.0 Dual Monitor (HDMI+HDMI ) KVM Switch 4K@60Hz

With this 4 port USB 3.0 dual-monitor HDMI KVM Switch (HDMI+HDMI), you can easily control 4 signal sources at the same time, share the keyboard,mouse, and 2 monitors.

Product Features

Independent Audio Microphone output.

Support EDID Lock Screen

USB 3.0 dual monitor KVM switch can simulate the EDID of the display, when the monitor is switched between 4 computers, the original window order will not change.

Installation steps:

1. Insert the DC/5V adapter into the KVM ;

2. Plug the HDMI cable into the KVM and monitor;(Output)

3. Plug the HDMI cable and USB cable into the KVM and your computer/laptop (HDMI cables are not included)(Input)

HDMI IN1 A + HDMI IN1 B + USB IN1=PC1

HDMI IN2 A + HDMI IN2 B + USB IN2=PC2

HDMI IN3 A + HDMI IN3 B + USB IN3=PC3

HDMI IN4 A + HDMI IN4 B + USB IN4=PC4

4. Insert the mouse and keyboard into the KVM switch

5. If needed, you can connect a microphone and audio port

4. Note: HDMI cables are not included

USB 3.0 Dual Monitor KVM Support 4K@60HZ

Note: Only when both your computer Graphics card and monitor support 4K@60Hz you can get the 4K@60Hz effect, so if you want the maximum resolution you have to check your devices first.

4 PCS Share 3 USB 3.0 Devices

This KVM switch 2 monitors 4 computers with 3 USB 3.0 Ports for keyboard, mouse or printers.

Supports Separate Audio and Microphone Output

Comes with a 3.5mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5mm earpiece device, and a 3.5mm microphone interface, which can be inserted into a 3-segment microphone.

Switching modes: Button switch and wired remote.

Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).

Additional Features

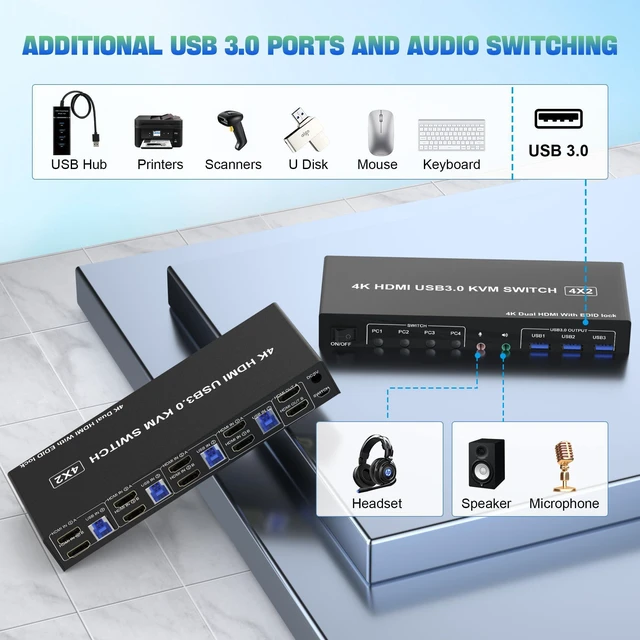

  • 3 USB 3.0 and Audio Microphone Ports: This dual monitor KVM HDMI switcher with 3 USB 3.0 ports which can recognize keyboard mouse, U-disk, printer, or other USB devices. USB 3.0 has a faster data transfer speed of up to 5Gbps, backward compatible with USB 2.0/1.1 devices while USB 2.0 has a data transfer speed of 480Mbps. Come with a 3.5mm Audio Jack port with a DAC chip inside and a 3.5mm microphone interface, which can be inserted into a 3-segment 3.5mm earpiece device and microphone.
  • Important: After connecting the computers and the monitors through KVM, you need to set the screen output mode on the computer (press Windows+P) and select the output mode in the pop-up window on the screen. Package includes 1 x USB 3.0 HDMI dual monitor KVM switch, 1 x Power adapter, 1 x Wired Remote Switch, 4 x USB 3.0 Type-A to B cable, and 1 x User Manual. We offer a 2-year warranty, if you encounter problems when using the KVM connection, please contact us.
  • Support 2 Switching Modes: 1. Buttons switching, just need one click switch to the designated computer2.Wired remote switch (included in the package). LED indicates the active computer.
