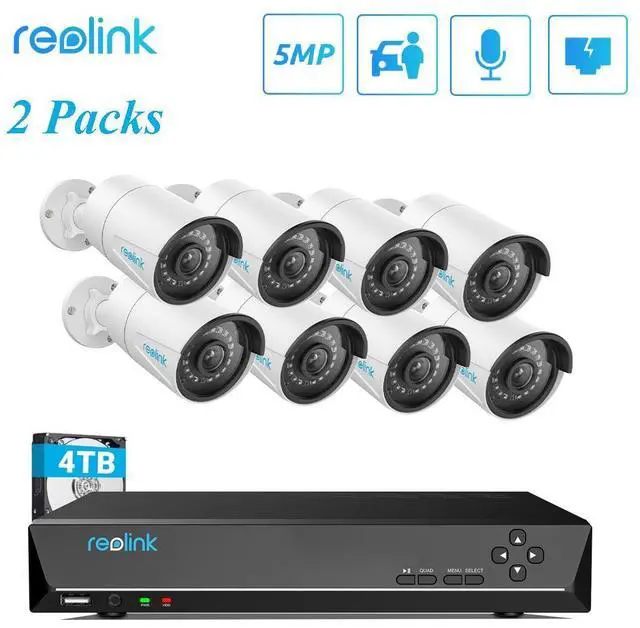

REOLINK 16CH 5MP Home Security Camera System, 8pcs Wired 5MP Outdoor PoE IP Cameras with Person/Vehicle Detection, 4K 16CH NVR with 4TB HDD for 24-7 Recording - RLK16-410B8-5MP (2 Kits)
- What's in Box: 2pcs x RLK16-410B8-5MP
- 5MP SUPER HD & STUNNING NIGHT VISION: Capture crystal clear videos day & night with 5MP super HD cameras. The 18pcs infrared LEDs allow you to get high-quality night vision up to 100ft, helping you to protect your property even at night.
- CUSTOMIZED SMART MOTION DETECTION: Featuring new smart human/vehicle detection and detailed detection settings, the Reolink system allows you to adjust the sensitivity level, area and recording schedule. Much less false alarms and enjoy peace of mind day & night.
- PLUG & PLAY POE SYSTEM: With a single network cable, you can connect each IP camera to Reolink NVR for both power supply and video transmission, making the installation easy enough for DIY enthusiasts and beginners.
- ENHANCED VIDEO RECORDING: Thanks to the built-in mic of Reolink cameras, the 16-ch system can pick up ambient sound and help to add another layer of security despite the reliable 24/7 recording.
- 2-YEAR LIMITED WARRANTY. No RMA concerns.
+
+
Overview
Specs
Reviews

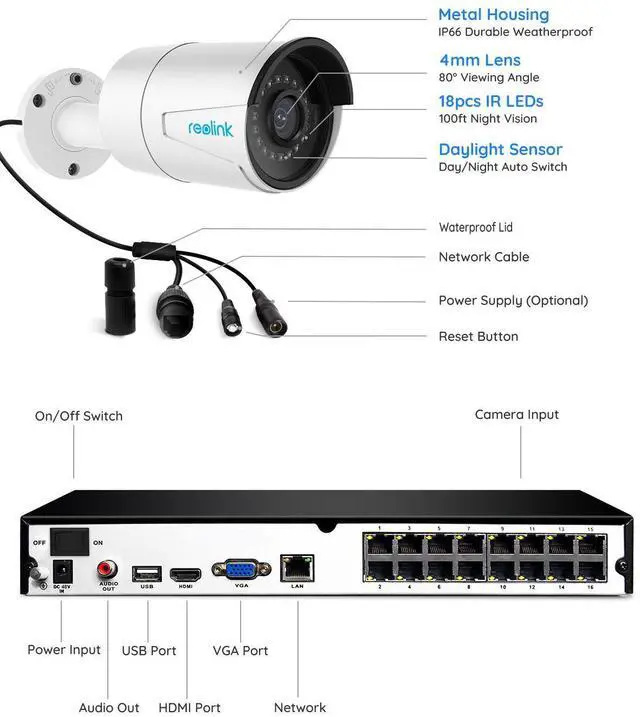

PoE Network Video Recorder Specifications
IP Video Input: supports 16 IP cameras
Video Output: Monitor or HDTV via VGA, HDMI
Compression Format: H.264
Playback: 4 cameras play simultaneously
HDD Installed: Pre-installed a 3TB HDD
HDD Capacity: 2x internal port, 1x external port, 4TB for each port(support up to 12TB in total)
Power over Ethernet Sockets: RJ45 X 16
USB Port: USB 2.0 x 2
Working Temperature: -10?~+55?(14°F~113°F)
Remote Access: iPhone/Android Phone, Windows/Mac PC
PoE IP Camera Specifications
Image Sensor: 1/2.7" 4 Megapixel CMOS (2560 x 1920)
Lens: 80°@4.0mm
Night Vision: 65-100ft, 18pcs IR LEDs
Viewing Angle: Horizontal: 80°, Vertical: 58°
Audio: Built-in Mic
Power: Power over Ethernet
Working Temperature:-10?~+55?(14°F~131°F)
Other Features
5 Megapixels Incredibly Clear Videos
These 5MP IP cameras have a pixel resolution of 2560x1920, that is, 2.4X the resolution of 1080p Full HD, and even 1.4X the resolution of 1440p Super HD. You will definitely have the best chance to see every image details as you wish.
24/7 Recording and Monitoring
3TB HDD Pre-installed. The 3TB hard drive can be replaced up to a 4TB hard drive.
Allow you to install another internal HDD via SATA (up to 4TB) and an external HDD via e-SATA for more storage (up to 4TB).
Support all cameras recording at the same time (up to 16 cameras).
If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.

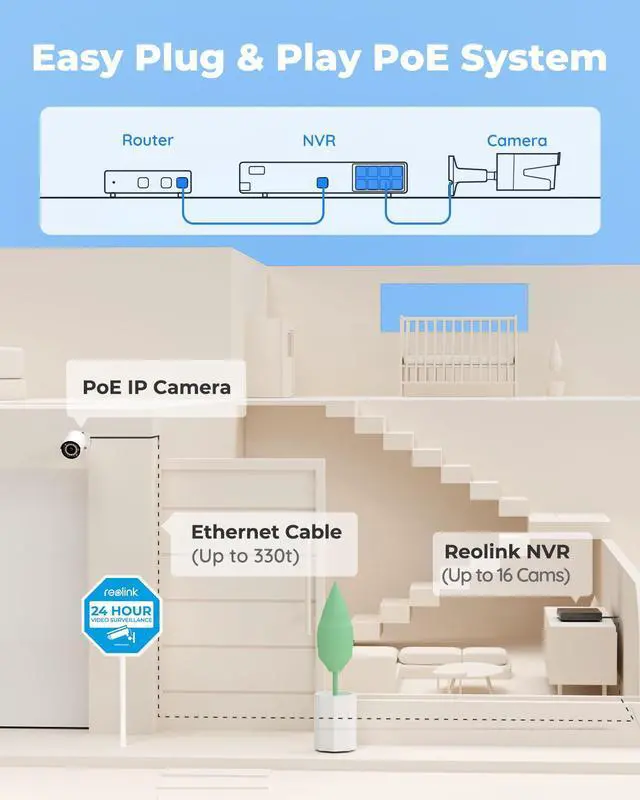

PoE Easy Setup, Even for a Beginner
A real plug and play security system, and features PoE (Power over Ethernet), with a single network cable connecting each IP camera to the NVR for power supply and video signal transmission. It comes with 59ft 8Pin network cables which save much time and cost to look for wires. It can run up to 270ft via CAT5 and 330ft via CAT6 8-pin Ethernet cable.
So Easy Remote Access
You can use Reolink APP (IOS/Android) and Client (Windows/Mac) to access the camera. Get live streaming and other control on mobile device, stay informed whenever there is a thing.
Customize Detection Zone
You are able to customize a specific motion detection zone, focusing on the important areas, like your driveway, mailbox or backdoor, which can also help reduce the false notifications from raindrops, snowflakes dance, trees swaying in the wind, car passing by, or motion from neighbor's homes.
Smartest Way for Alerts
The PoE camera security system detects moving objects and trigger alerts when dangers occur. Whenever a motion event is detected, the surveillance camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device.
Work with All Type of Reolink Cameras
The 5MP PoE NVR works perfectly with all Reolink 5MP and 4MP POE IP cameras and WiFi cameras for 24/7 recording, motion detection alerts, live views, playback and more other features.
What's in the box?
1 x 16CH 5MP PoE NVR (with 3TB HDD)
8 x 5MP PoE Camera
1 x 48V NVR adaptor
1 x USB Mouse
1 x 1M Cat5 Cable
8 x 18M Cat5 Cable
1 x 1M HDMI Cable
1 x Quick Start Guide Brochure
IP Video Input: supports 16 IP cameras
Video Output: Monitor or HDTV via VGA, HDMI
Compression Format: H.264
Playback: 4 cameras play simultaneously
HDD Installed: Pre-installed a 3TB HDD
HDD Capacity: 2x internal port, 1x external port, 4TB for each port(support up to 12TB in total)
Power over Ethernet Sockets: RJ45 X 16
USB Port: USB 2.0 x 2
Working Temperature: -10?~+55?(14°F~113°F)
Remote Access: iPhone/Android Phone, Windows/Mac PC
PoE IP Camera Specifications
Image Sensor: 1/2.7" 4 Megapixel CMOS (2560 x 1920)
Lens: 80°@4.0mm
Night Vision: 65-100ft, 18pcs IR LEDs
Viewing Angle: Horizontal: 80°, Vertical: 58°
Audio: Built-in Mic
Power: Power over Ethernet
Working Temperature:-10?~+55?(14°F~131°F)
Other Features
5 Megapixels Incredibly Clear Videos
These 5MP IP cameras have a pixel resolution of 2560x1920, that is, 2.4X the resolution of 1080p Full HD, and even 1.4X the resolution of 1440p Super HD. You will definitely have the best chance to see every image details as you wish.
24/7 Recording and Monitoring
3TB HDD Pre-installed. The 3TB hard drive can be replaced up to a 4TB hard drive.
Allow you to install another internal HDD via SATA (up to 4TB) and an external HDD via e-SATA for more storage (up to 4TB).
Support all cameras recording at the same time (up to 16 cameras).
If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.
PoE Easy Setup, Even for a Beginner
A real plug and play security system, and features PoE (Power over Ethernet), with a single network cable connecting each IP camera to the NVR for power supply and video signal transmission. It comes with 59ft 8Pin network cables which save much time and cost to look for wires. It can run up to 270ft via CAT5 and 330ft via CAT6 8-pin Ethernet cable.
So Easy Remote Access
You can use Reolink APP (IOS/Android) and Client (Windows/Mac) to access the camera. Get live streaming and other control on mobile device, stay informed whenever there is a thing.
Customize Detection Zone
You are able to customize a specific motion detection zone, focusing on the important areas, like your driveway, mailbox or backdoor, which can also help reduce the false notifications from raindrops, snowflakes dance, trees swaying in the wind, car passing by, or motion from neighbor's homes.
Smartest Way for Alerts
The PoE camera security system detects moving objects and trigger alerts when dangers occur. Whenever a motion event is detected, the surveillance camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device.
Work with All Type of Reolink Cameras
The 5MP PoE NVR works perfectly with all Reolink 5MP and 4MP POE IP cameras and WiFi cameras for 24/7 recording, motion detection alerts, live views, playback and more other features.
What's in the box?
1 x 16CH 5MP PoE NVR (with 3TB HDD)
8 x 5MP PoE Camera
1 x 48V NVR adaptor
1 x USB Mouse
1 x 1M Cat5 Cable
8 x 18M Cat5 Cable
1 x 1M HDMI Cable
1 x Quick Start Guide Brochure
