SATA Expansion Card 6Port, PCI-e 1x to SATA 3.0 Controller Card
- SATA Expansion Card PCIe x1
- 6Port SATA iii Hard Drive Controller Card Adapter

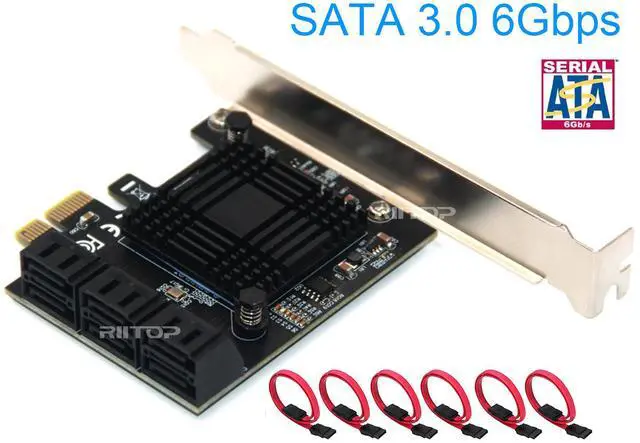

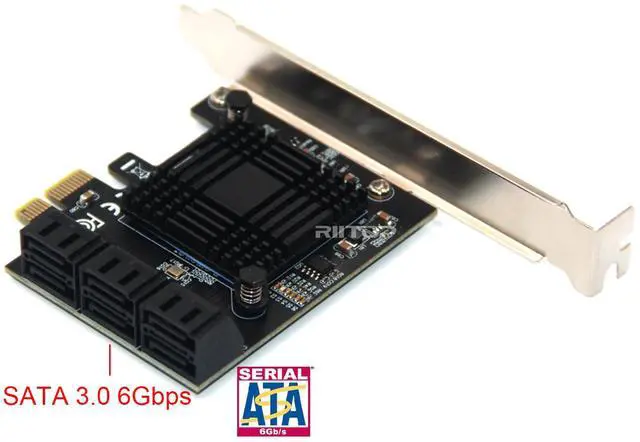

- 6 * SATA III (6 Gbps) ports through PCI Express x1 (or above) Slot
- Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps) drives
- Compliant with PCI Express 3.0 standards
- JMB575 + ASM1062 Chipset

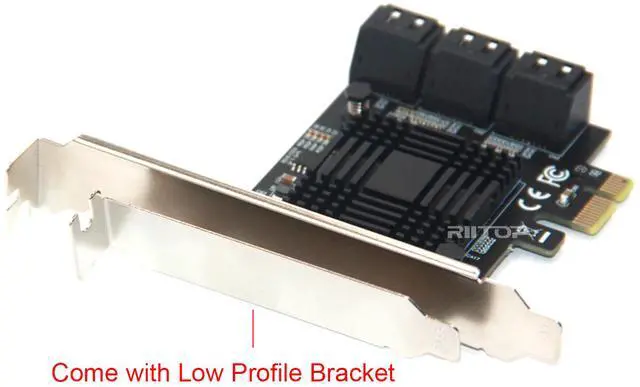

- Includes Low Profile/Half-Height installation bracket
Note:
Please do NOT connect system disk, only work with extended partitions.
Features:
6 AHCI SATA III (6 Gbps) ports through PCI Express x1(or above).
Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps).
Compliant with PCI Express 3.0 standards.
JMB575 + ASM1062 Chipset.
Includes Low Profile/Half-Height installation bracket.
Support OS:
For Windows 7, 8.x, 10,
For Windows Server 2008 R2, 2012, 2016,2019,
For Linux 2.6.x to 4.x.
Note:
Please do NOT connect system disk, only work with extended partitions.
Specifications:
Chipset: JMB575 + ASM1062.

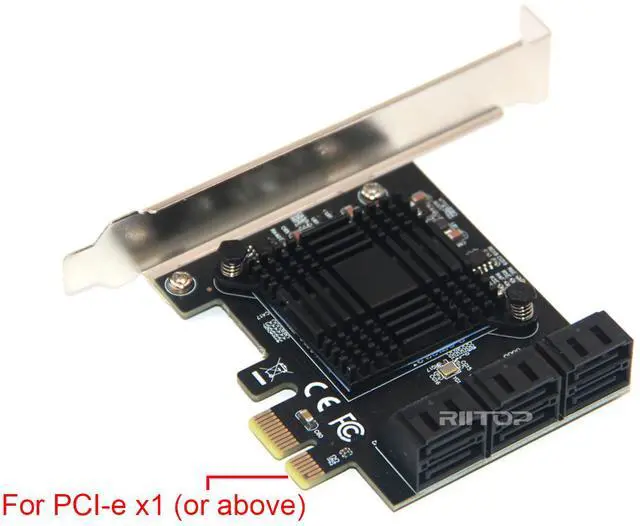

Slot: Suiltable for PCI Express 1x (or above).
Port Number: 6 Port SATA 3.0.
Dimension: 80*22 mm.
Package Included:
1x PCI-e 1x to 6 Ports SATA 3.0 Expansion Card.

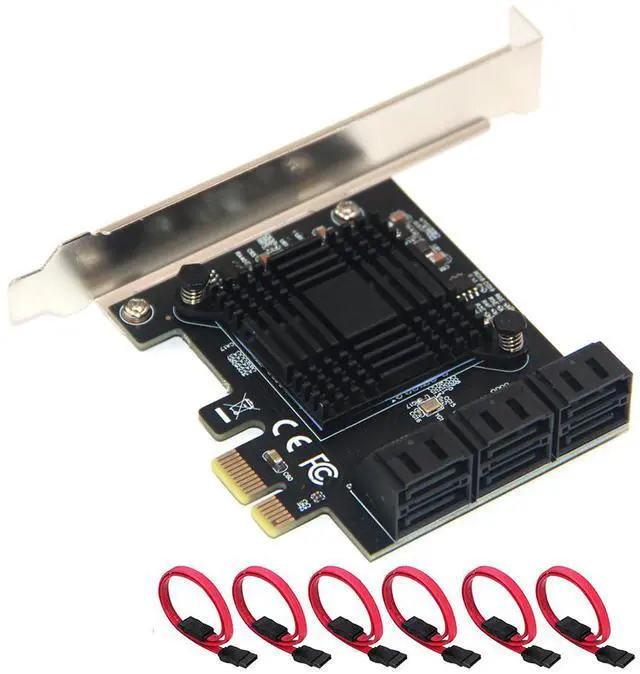

6x SATA3 Cables.
