Specifications: Cabling: Cat 5 UTP or better
Ports: 1
Max Distance: 50 m / 165 ft
Maximum Data Transfer Rate: 480Mbps
MTBF: 72,000 Hours
OS Compatibility: OS Independent; No additional drivers or software required
System and Cable Requirements:
A host computer with an available USB-A port (USB Type-A)
Terminated RJ45 Cat5e or better Ethernet cable
LED Indicators: 1 x Power / Link
Center Tip Polarity: Positive
Input Current: 0.6 A
Input Voltage: 100 - 240 AC
Output Current: 2 A
Output Voltage: 5 DC
Plug Type: N
Power Consumption (In Watts): 10
Power Source: AC Adapter Included
Enclosure Type: Steel
Specifications: Audio: Supports high-definition audio (HD) 5.1/6.1/7.1 surround sound: Dolby TrueHD, DTS-HD Master Audio LPCM channels up to 7.1 channels 192 kHz
Operating Humidity: 0 to 80% relative humidity
Operating Temperature: 32° to 122° F (0° to 50° C)
PoE: Complies with IEEE 802.3at standard, Class 4;
Power: Normal input: 48 VDC;
Input Range: 36 to 57 VDC
Power: (1) External 5 VDC, 3 A
Power Consumption: POE: 10.5 W
Storage Temperature: -4° to +140° F (-20° to +60° C)
User Controls:
B1: Set/Reset Pushbutton;
B2: Function Selection Pushbutton;
Rotary switch: Select from 16 Video Channels (HEX 0–F), Paired TX and RX units must use the same channel
Specifications: Max 1024 x 768 Range (ft): 150 ft.
Max 480P Range (ft): 154 ft.
Max 1440 x 900 Range (ft): 150 ft.
Max 1080i Range (ft): 150 ft.
Max 1080P Range (ft): 150 ft.
Max 480i Range (ft): 154 ft.
Max 640 x 480 Range (ft): 150 ft.
Max 800 x 600 Range (ft): 150 ft.
Max 1600 x 1200 Range (ft): 150 ft.
Max 720P Range (ft): 150 ft.

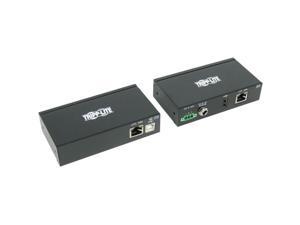

Specifications: Function
Operating System Requirements
Windows Windows Vista, Windows 7, Windows 8, Windows 8.1
Mac Mac OS X10.3+
USB Specification USB 2.0
Cable Connections
Input Transmitter: USB Type B Female x 1; Receiver: RJ45 Ethernet Connector
Output Transmitter: RJ45 Ethernet connector; Receiver: USB Type A Female x 4
Transfer Rate Up to 480 Mbps
Cable Length Transmitter: USB cable 1ft (included); Receiver: Cat 5, Cat 5e or Cat 6 cable (not included) up to 164ft (50m)
Cable Distance Maximum cable distance from Transmitter to Receiver: 164ft (50m)
Cable Type Ethernet Cat 5, Cat 5e or Cat 6 required for connection between receiver and transmitter.
Connectors
AC Power Inlets Barrel type
Max Output Power 500mA @ 5V
Power Supply 2A @ 5VDC
LEDs
Power On
Operating Te...
Specifications: Connector A: (x2) RJ45 (Female)
Connector B: (x2) DB9 (Female)
AC Adapter: (x2) Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A
Typical Applications:
Touch Screen displays
PC to PC File Transfer
Any Serial extension application
Package Contents: B165-101 Local Unit
B165-101 Remote Unit
2 External Power Supplies (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A)
Owner's Manual

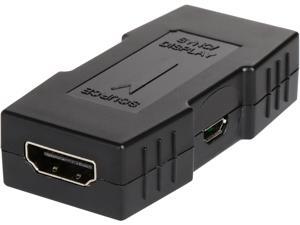

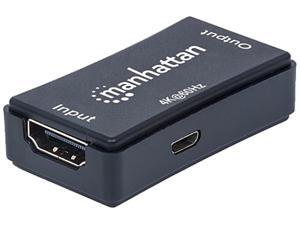

Specifications: Audio Specifications; DTS / Dolby Digital
Bandwidth: 18Gbps
Max Distance: 14 m / 45 ft
Video Revision: HDMI 2.0
Wide Screen Supported: Yes
Plug Type: USB Micro-B
Power Consumption (In Watts): <2.5
Power Source: Not Included (not required for standard applications)

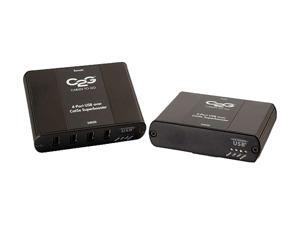

Specifications: Provides true plug-and-play capabilities, ready to operate right out of the box.
Works with Windows, Mac OS X, and Linux operating systems. No new driver installation is required.
It is ideal for a wide variety of USB devices, from printers, scanners, and hard drives to audio devices, touch screens, Web cams, and more!
Works with all USB device types: control, interrupt, bulk, and isochronous at up to 480 Mbps.
Get USB connectivity anywhere.
Install your USB devices anywhere! Combine the 4-Port CATx USB Extender with additional USB hubs to connect up to 30 USB devices. An AC power adapter at the remote unit provides up to 1A max to USB port.
Use it for any or all of the following applications:
Industrial control
KVM extension
Digital signage
Remote des...
