Specification: Ports In:
1 x HDMI Female
Ports Out:
Video Output: 1 x HDMI Female
Audio Output: 1 x TOSLINK (Optical) / 1 x RCA (Coaxial) / 2 x RCA (Stereo)
1 x DC Jack
Console Connectors (Flash ROM Upgrade): 1 x 4-conductor 3.5 mm Jack
1 x (Green) Power On LED
Switches
Mode Selection: Audio Channel - 1 x Slide Switch / HDMI Audio On/Off - 1 x Slide Switch
F/W Upgrade: 1 x semi-recessed pushbutton
Power: 5.3 VDc/150 mA
Power Consumption: 0.8 W - 3 BTU / hr
Dimension: 7.9" x 3.2" x 1"
Weight: 1 lbs.
Feature: Repeats HDMI input signal up to 15 meters
Extracts HDMI audio signal and outputs as additional audio source
Supports optical / coaxial digital audio and analog stereo audio
HDMI and HDCP compatible
Super Video Quality - up to 1920x1080 (1080p)
Firmware upgradable
CH2/CH5.1/Auto mode audio channel se...
Resolution Support: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60 Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4)
Video: Max. Data Rate: 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock: Up to 340 MHz
Compliance:
HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Resolution Support: Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a); 1080p@60 m (Cat 5e/6) / 70 m (Cat 6a)
Power Supply: VE601R
Connectors: 1 x DC Jack with locking
Consumption: 5 VDC, 4.23 W
VE601T
Connectors: 1 x DC Jack with locking
Consumption: 5 VDC, 1.85 W

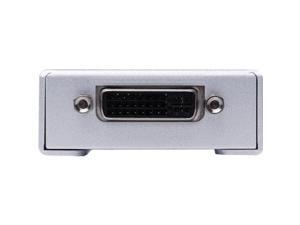

Feature: The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to me...
Video: Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6)
1080P@100m (Cat 5e/6/6a)
* 4K supported: 4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4)

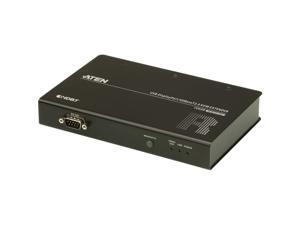

Serial Interface: RS-232 on CE920L: 1 x DB-9 Female (Black)
RS-232 on CE920R: 1 x DB-9 Male (Black)
Network Interface: CE920L: 1 x RJ-45 Female (Black)
CE920R: 1 x RJ-45 Female (Black)
USB Port: CE920L: 1 x USB Type B Female (White)
CE920R: 3 x USB Type A Female
Analog Aduio: CE920L:
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
CE920R:
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
Other Connector: CE920L:
1 x DisplayPort Female (Black)
1 x DC Jack with locking
CE920R:
1 x DisplayPort Female (Black)
1 x DC Jack with locking
Power Consumption: VE801T: DC5V, 1.85W
VE801R: DC5V, 4.23W
Specification: Video Input
Interface: 1 x HDMI Type A Female (Black)
Impedance: 100?
Max distance: 1.8 m
Video Output
Interface: 1 x HDMI Type A Female (Black)
Impedance: 100?
Video
Max. data rate: 10.2Gbps (3.4Gbps per lane)
Max. pixel clock: 340 MHz
Compliance: HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Max resolutions / Distance: Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
1080p@60m (Cat 5e/6) / 70m (Cat 6a)
Audio
Input: 1 x HDMI Type A Female (Black)
Output: 1 x HDMI Type A Female (Black)
Power
Connector: 1 x DC Jack (Black) with locking
Environment
Operating Temp.: 0-50°C
Storage Temp.: -20°C - 60°C
Humidity: 40% - 85% RH, Non-condensi...
Feature: HDMI 2.0a and HDCP 2.2 compliant
Supports HDMI input up to 4Kx2K@60Hz YUV 4:4:4 8bit, HDMI output up to 4Kx2K@30Hz
Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch
Supports 4K signals including High Dynamic Range (HDR), PoE, Bi-directional IR path, and Video Wall. Due to the video compression, some distortion may occur in HDR mode
Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture
Easy DIP switch matching for multi-casting group configuration
Supports full frequency IR signal from 20KHz to 60KHz
Full Duplex RS-232 control up to 115,200 bps
Supports 180 degree and 270 degree clockwise image rotation
Designed to work with HDMI 2.0 Video Wall Over IP Mult...
Features: Digital Extension Technology - Video, USB 2.0 (Low and Full speed) and audio all pass along a single cable, providing up to 50 me-ters of extension.
USB Powered Transmitter - The transmitter is powered via its USB port to reduce the need for external power supplies. There is an option for an external power supply if the USB port has insufficient power.
Digital Video - Supports DVI-D (HDMI with adapter) video on single or dual screens, with resolutions up to 1920 x 1200 @ 60Hz
Plug and Play - The LV 4000 series extenders are delivered in a zero configuration state so you can plug them in and start working immediately. There’s no need for additional drivers or software.
USB Support - USB 2.0 support for any U...
Resolution Support: Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m (Cat 5e/6) / 70m (Cat 6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Power Supply: VE802R
Connectors: 1 x DC Jack (Black) with locking
Consumption: DC 5V, 4W
VE802T
Connectors: 1 x DC Jack (Black) with locking
Consumption: DC 5V, 3.6W
Feature: The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an add...
