Specifications: Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Management Port:
No
Number of LC Ports:
1
LC Port Type:
Duplex
Number of Network (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
Optical Fiber
Twisted Pair
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Wavelength:
0 mil
Maximum Distance Supported:
0.55 km
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-T
1000Base-SX/ LX
Power Description
Power Source:
AC Adapter
Input Voltage:
12 V DC
Power Consumption:
4 W
Plug/Connector Type:
Type M
Physical Characteristics
Color ...
Specifications: 10/100/1000BASE-T (RJ-45) [100 m/328 ft.] to 1000BASE-SX 850nm multimode (SC) [62.5/125 µm fiber: 220 m/722 ft.]
Link Budget: 7.0 dB [50/125 µm fiber: 550 m/1804 ft.]
Standards: IEEE 802.3
Max Frame Size: untagged: 1632 bytes / tagged: 1628 bytes
Status LEDs:
PWR (Power): (below RJ-45)
ON = Lit for normal operation
FX-Link/Act (Fiber Link/Activity):
(Upper Left on RJ-45)
ON = Link; Flashing = Activity
TX-Link/Act (Copper Link/Activity):
(Upper Right on RJ-45)
ON = Link; Flashing = Activity
Power
Consumption: 3.15 Watts
Sources: Unit accepts 5 VDC to 28 VDC
Wall Mount AC adapter: 12 VDC 400mA
Environment
Storage: -15 to +65 °C
Operating: 0°C to 50°C
Altitude: 0 – 10,000 feet
Humidity: 5% to 95% (non-condensing)
Compliance
Safety: Wall Mount Power Supply, UL Listed,
C-UL Listed ...
Specifications: Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Management Port:
No
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1
SC Port Type:
Duplex
Media & Performance
Media Type Supported:
Twisted Pair
Optical Fiber
Fiber Mode Supported:
Single-mode
Fiber Optic Cable Wavelength:
0.1 mil
Maximum Distance Supported:
40 km
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
1000Base-SX/ LX
Power Description
Power Source:
AC Adapter
Input Voltage:
12 V DC
Power Consumption:
4 W
Plug/Connector Type:
Type M
Physical Characteristics
...
Specifications: Interfaces/Ports
Total Number of Ports:
2
Network (RJ-45):
Yes
DVI:
No
USB:
No
Parallel Port:
No
Digital Audio:
No
Digital Audio/Video:
No
Management Port:
No
Number of Network (RJ-45) Ports:
1
Number of SC Ports:
1
SC Port Type:
Duplex
Media & Performance
Media Type Supported:
Twisted Pair
Optical Fiber
Fiber Mode Supported:
Multi-mode
Fiber Optic Cable Wavelength:
0 mil
Maximum Distance Supported:
0.55 km
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
1000Base-SX/ LX
Power Description
Power Source:
AC Adapter
Input Voltage:
12 V DC
Power Consumption:
4 W
Plug/Connector Type:
Type M
Physical Characteristics
Co...
Specifications: What's in the box:
Digi Connect EZ 2 - serial server, 2-port, with accessories
Power supply - 12 V, 3 A (24000136)
DIN rail clip (76002095)
Specifications: Technical Information
Host Interface:
USB 3.0 Type A
Interfaces/Ports
Total Number of USB Ports:
3
Number of USB 3.0 Ports:
3
Number of Network (RJ-45) Ports:
1
Software
Operating System Supported:
Windows XP
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows 10
Windows 11
Windows Server 2003
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022
Mac OS X 10.6 Snow Leopard
Mac OS X 10.8 Mountain Lion
Mac OS X 10.10 Yosemite
Mac OS X 10.11 El Capitan
Mac OS X 10.12 Sierra
Mac OS X 10.13 High Sierra
Mac OS X 10.14 Mojave
Mac OS X 10.15 Catalina
Mac OS X 11.0 Big Sur
Mac OS X 12.0 Monterey
Mac OS X 13.0 Ventura
ChromeOS
Linux...
Specifications: Enclosure Type: Rubber
Included in Package: 10 - dust caps
Features: Dust covers insert easily into unused SFP LC ports, to protect your network switches from dust and contaminants
Made of durable rubber
Work with SFP / SFP+ LC ports in optical networking equipment
Easy to insert and remove

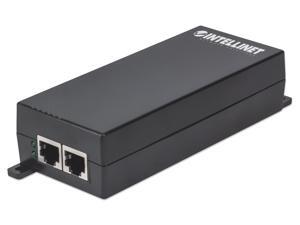

Specifications: Interface: LAN:
1 x RJ-45 STP, "Data" Input Port
POE: 1 x RJ-45 STP, "Data + Power" Output Port
AC Connector: 1 x AC Input power socket, IEC-320 C6
Network Cable:
Ultra PoE (60W): 4-pair UTP Cat. 5, 5e, 6 up to 100m (328 ft.)
802.3af / at PoE(15W / 30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328 ft.)
LED Indicator:
System: Power x 1 (Green)
PoE Port: Active, PoE ready / In Use x 1 (Green)
Data Rate: 10/100/1000 Mbps
Unit Output Voltage: DC 50-57V, 1.2A
Power Requirements: 100-240V AC @ 50/60 Hz, 1.5A max.
Power Consumption: 60 watts max.
PoE Standard:
Ultra PoE over 4-pairs UTP,
High Power over Ethernet End-Span / Mid-Span PSE
PoE Power Supply Type: End-Span + Mid-Span
Power Pin Assignment:
Pair 1 End-Span: 1/2 (+), 3/6 (-)
Pair 2 Mid-Span: 4/5 (+), 7/8 (-)
PoE Power Output:
DC 50-57V/60-w...
Specifications: Ethernet Interface:
Copper: 10/100BASE-TX RJ45, auto-negotiation / auto-MDI / MDI-X
Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device)
PoE Input: Supports both mid-span and end-span PSE
Input Range: 48~56V DC
Data Rate: 100/100 Mbps
Cabling: Cat5e or above
Maximum Distance: 100m
Maximum Frame Size: 1522 bytes
LED Indicators:
4 x LEDs
PWR
LRP LNK
PoE IN
LNK / ACTESD Protection: 4 KV DC
EFT Protection: 2 KV
Enclosure Metal: case
Installation: Wall mount or DIN rail with optional kit
Power Requirements:
RJ45 PoE Input: 802.3at/af 48~56V DC
DC Input: 48~56V DC
Standards Compliance:
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet (802.3at Type 2)
Specifications: Ethernet Interface:
Copper:
10/100BASE-TX RJ45
auto-negotiation / auto-MDI / MDI-X
Power over Ethernet Standard: IEEE 802.3at/af PoE PSE (Power Source Equipment)
PoE Output: 56V DC, 600mA max.
PoE Budget: Up to 25 watts
PoE Mode: End-span, RJ45 Pin 1/2 (+), 3/6 (-)
Data Rate: 100/100 Mbps
Cabling: Cat5e or above
Maximum Distance: 100 meters
Maximum Frame Size: 1522 bytes
LED Indicators:
4 x LEDs
PWR
LRP LNK
PoE-in-use
LNK / ACT
ESD Protection: 4KV DC
Enclosure: Metal case
Installation: Wall mount or DIN rail with optional kit
Power Requirements: BNC Power over Coaxial Input: 44~56V DC
Standards Compliance:
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet (802.3at Type 1)
IEEE 802.3at Power over Ethernet Plus(802.3at Type 2)
Specifications: Video Channel: 1 channel bi-direction
Signal Mode: NTSC / PAL / SECAM
Video Connector: BNC
Video Bandwidth: 60MHz
Video Input / Output Voltage: 1.0 Vpp / typical peak-to-peak value
Video Input / Output Impedance: 75ohm / unbalanced interface
Supported Video Type:
1080p: AHD / TVI / CVI
480p: CVBS
Video Digital Bit Width: 8 / 10 bit
Differential Gain (DG): < 1.3% (typical value)
Differential Phase (DP): < 1.3 degree (typical value)
SNR Weighted: > 67 dB (typical value)
Data Channel: 1 channel
Physical Protocol: RS485
Operation Mode: Simplex
Data Connector: 3-pin terminal block with screw clamps
Data Rate: DC-115.2 Kbps
Bit Error Rate (BER): < 10ns
LED Indicators:
Power
Video
Link (fiber optic)
Power Requirement: 5V DC, 2A
Power Consumption: 4.8 watts (maximum)
Mechanical: Metal
Installation: Wall-mountable, DIN-rail (with ...
