Specifications: Flush-frame acoustic ceiling bracket for ZoneFlex R710.
Flush-frame only - not applicable for standard (recessed-frame) acoustic ceiling.
Kit Content:
1 x Mounting bracket
2 x Mounting guide
Features: • Hardened IP30 rated Gigabit 4PPoE Injector
• PoE (15.4W), PoE+ (30W), or 4PPoE (90W) power , Power supply sold separately (model TI-S12048)
• Network a PoE device located up to 100m (328 ft.) away, Includes DIN-rail mount and wall mount
• Extreme -40 to 75 °C (-40 to 167 °F) operating temperature

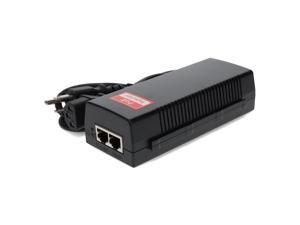

Specifications: Standards
802.3 10BaseT
802.3u 100BaseT
802.3ab Gigabit Ethernet
Proprietary PoE
Physical Interface
1) Gigabit Data Port
(1) Gigabit Data & Power Output Port
(1) IEC-320 C6 AC Connector
Power
Input voltage : 100 to 240 VAC
Input current: 0.8A maximum for 100 VAC
AC input Frequency: 47-63Hz
Maximum output power: 32.8W
Pin4, 5:54V; Pin7, 8: Return
Temperature Range
Operating: 32 degree F to 104 degree F (0 degree C to 40 degree C)
Storage: -22 degree F to 176 degree F (-30 degree C to 80 degree C)
Humidity (non-condensing)
Operating: 5 to 90% or less
Storage: 5 to 90% or less
LED Indicator: 1 x Power on Green
Mounting: Wall (anchors & screws included)
Dimensions: 1.30" x 3.90" x 2.27"
Parts: Manufacturers Limited Warranty: 1 Year / Parts Only

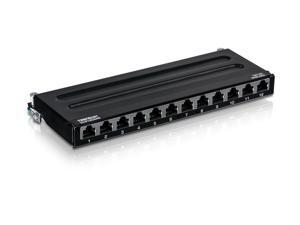

Specifications: No. of Ports: 12
Pass Through Data Rates 10/100/1000 Mbps
PoE Output:
Pin Assignment and Polarity:
Data Pairs 1/2 (-) and 3/6 (+)
Spare Pairs 7/8 (-) and 4/5 (+)
Output Power Voltage: 54-57V DC
User Port Power: 72W Typ.
Aggregate Power: 1000W
Input Power Requirements:
AC Input Voltage: 100 to 240V AC
DC Input: 57V (RPS or another 9500G midspan)
AC Input Current: 450W Units: 5.5A @ 110V AC; 2.75A @ 220V AC
1000W Units: 12A @ 110V AC; 6A @ 220V AC
AC Frequency: 50 to 60 Hz
Management PowerView Pro included
Indicators:
System Indicator: AC Power (Green)
User Indicator: Channel Power (Green / Orange)
Connectors:
PoE ports and management port: Shielded RJ-45, EIA 568A and 568B
Console Port: USB Connector Type B
DC Connector: DC Block Terminal
RPS Com Connector: HD-D-sub-15
Specifications: Form Factor: Plug-in module
Ports: 10Gb Ethernet x 8
Connectivity Technology: Wired
Data Link Protocol: 10 GigE
Interfaces: 8 x 10GBase-T - RJ-45
Features: Authentication: TACACS+, RADIUS, LDAP, Kerberos, Local user database.
Security: SSHv2 server and client, SSL, IP filtering, Data capture via port buffering.
Management: Command Line, Web (HTTP/HTTPS), SNMP, Multi-level menuing, Port triggers and alerts.
Operating Systems: Embedded Linux (Hard Hat Distribution).
Connections: Standard CAT5 cabling for RJ-45 serial ports.
Port Access:
Telnet/SSH with menuing, Reverse Telnet/SSH, HTTP/HTTPS, Multiple users per port, SSH sessions simultaneously on all ports, IP addresses per port.
Supported PC Cards: CompactFlash memory card, Wireless LAN adapter (802.11b), Ethernet LAN adapter, PSTN/CDMA modem card.
Rack Mount:
19” rack mount kit included with 16/32/48-port models.
Optional rack mount (76000705) available for purchase with 8-port model.
...
